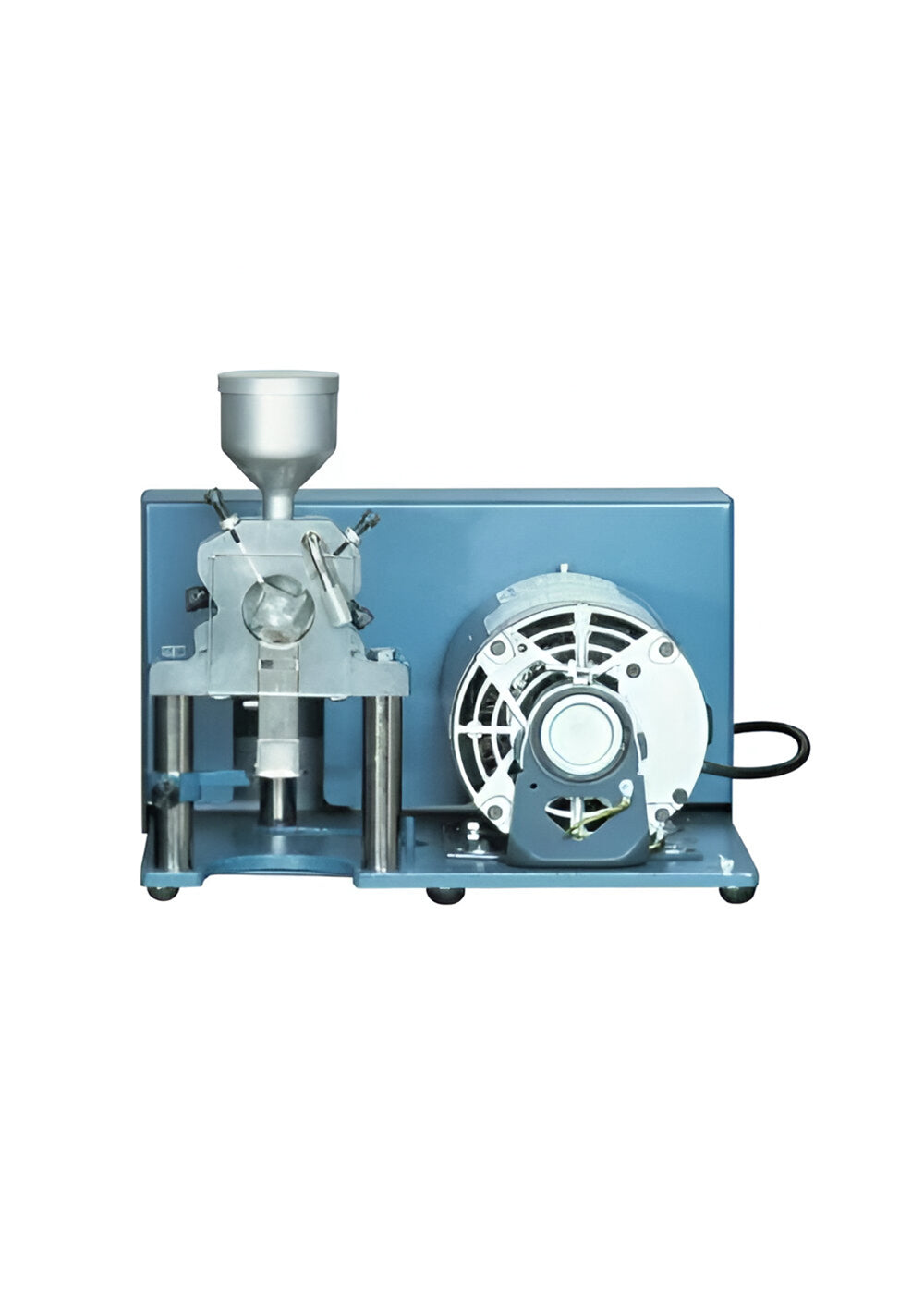

Wiley Mill (Intermediate Model) - ASI-1022B

Consists of a polished cast iron chamber for 40mm. diameter x 22mm. deep, with two stationary blades. A rotor with four blades revolves at high speed, to provide a unique shearing action. A hopper, provided for feeding the material, has a throat diameter of 14mm. Samples introduced through the hopper are swept around the rotor, until cut to sufficient fineness, to pass through the sieve top, and then on the delivery tube, which forms the bottom of the chamber. Three sieves of mesh sizes BSS20, 40, 60 are supplied. A glass jar, placed at the bottom, received the milled powder. A glass jar plate forms the face of the chamber and permits observation during the operation. By removing the glass, access is possible for cleaning. Supplied complete with a glass receiver, a wrench for adjusting fixed blades and a cleaning brush. Complete with a 0.25 HP motor, an electrical chord and plug. Wired for 230 V. 50 Hz. Sph. The mill was originally designed for grinding fertilizer materials, animal hair, hoofs etc., but has now been adopted for leather, dry plant stem tissues, leaf tissues, soybeans stems, tobacco, plastics, bones. Cotton seeds, drugs and various other materials.
