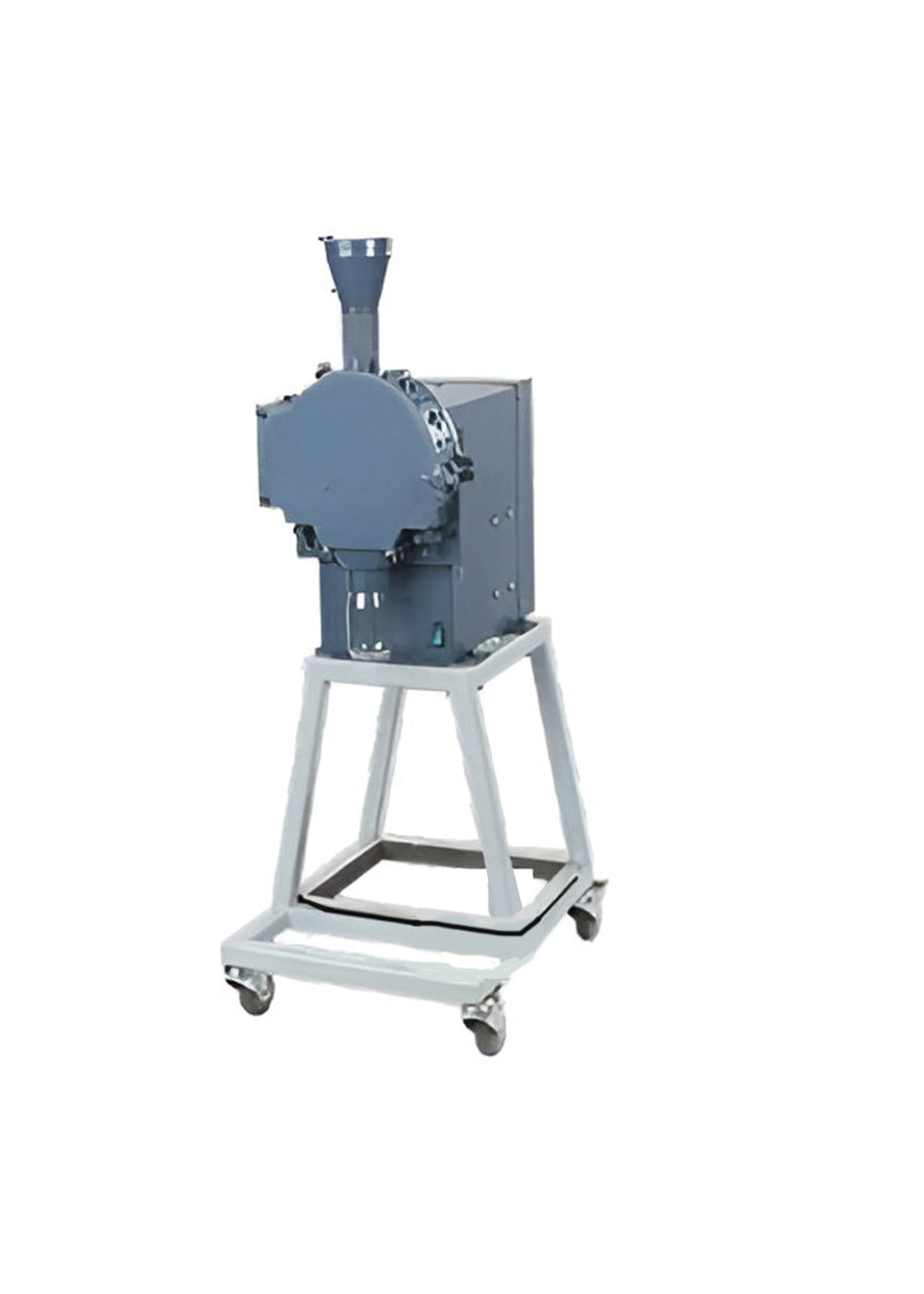

Wiley Mill, Heavy Duty - ASI-1024

Consists of a polished cast iron chamber for 40 mm diameter × 22 mm deep, with two stationary blades. A rotor with four blades revolves at high speed to provide a unique shearing action. A hopper, provided for feeding the material, has a throat diameter of 14 mm. Samples introduced through the hopper are swept around the rotor until cut to sufficient fineness to pass through the sieve top, and then onto the delivery tube, which forms the bottom of the chamber.

Three sieves of mesh sizes BSS 20, 40, and 60 are supplied. A glass jar, placed at the bottom, receives the milled powder. A glass jar plate forms the face of the chamber and permits observation during operation. By removing the glass, access is possible for cleaning.

Supplied complete with a glass receiver, a wrench for adjusting fixed blades, and a cleaning brush. Complete with a 0.25 HP motor, electrical cord, and plug. Wired for 230 V, 50 Hz, single phase.

Milling chamber is of 200 mm diameter × 75 mm deep. Four steel blades on the rotor act in conjunction with six steel blades on the frame, providing enhanced shearing action. The mill is supplied with three standard size sieves of 0.5 mm, 1 mm, and 2 mm. Wired for 440 V, 50 Hz, 3 phase.
