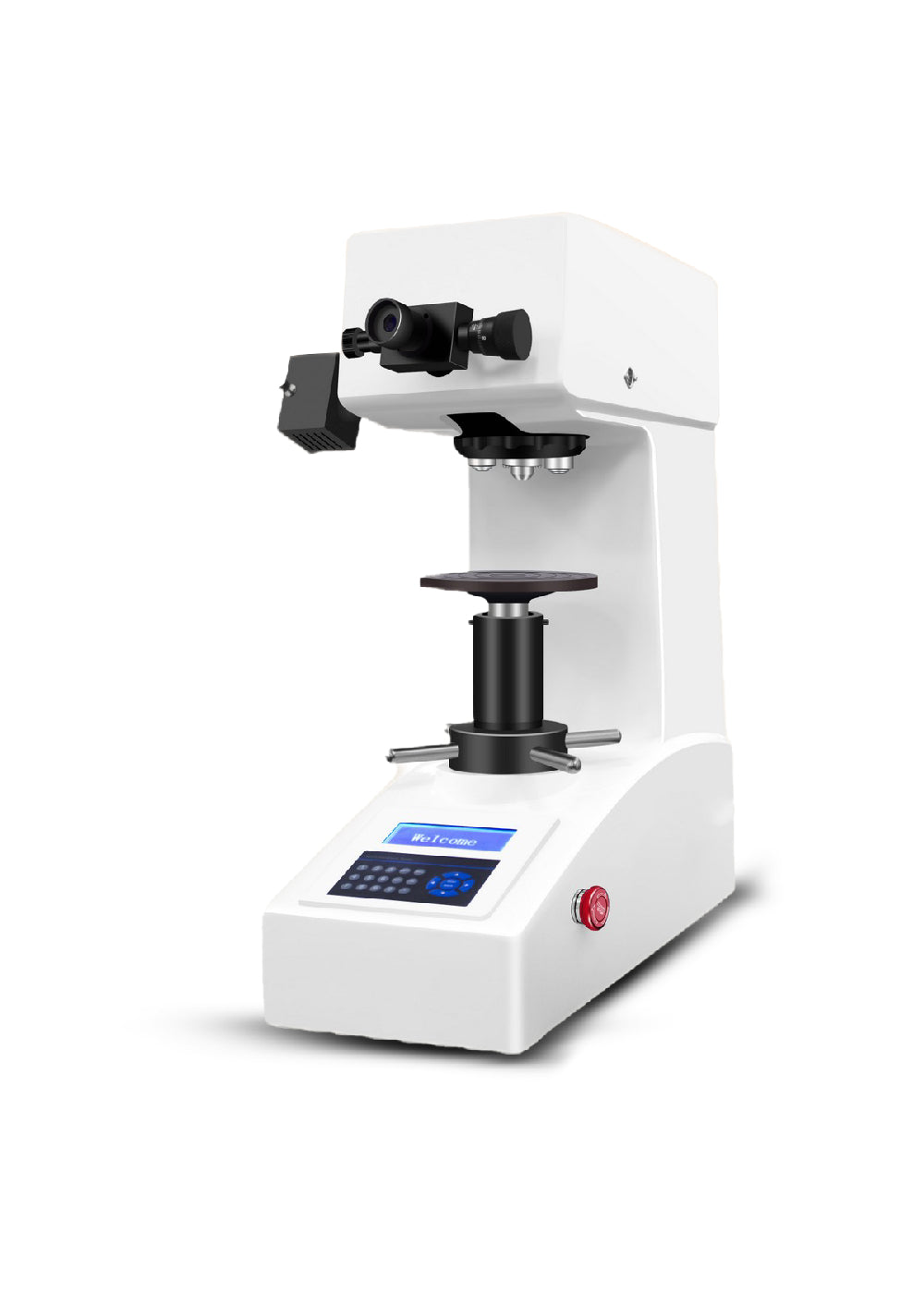

Vicker Hardness Tester Load Cell Manual - ASI-HV-50M / ASI-HV-50A

Main Features of Vickers Hardness Tester :

Closed loop design with high accuracy load cell, no need to install dead weights, let installation more easy and loading - dwell - unloading automatically, easy operation
Modular design, simple maintenance
With hardness conversion function, from HV hardness value can convert to HR, HB, HK, etc.
With HV/HK test function
Built-in printer for optional purchase
Can work with camera and Vickers indentation measuring software
According to different visual habits of the operators, the Optional purchase: XY cross work table strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
Industrial digital LCD screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, test number and testing process.
One-time casting iron molding shell ensure structure more stable; Adopted car painting technology, pure white color looking more decent; High scratch resistance capability, used for years still brightness like new.

View full details

Specification
Item	ASI-HV-50A	ASI-HV-50M
Turret	Automatic	Manual
Turret Movement	Automatic loading - dwell - unloading	Manual
Testing Force	0.098N(10gf), 0.49N(50gf), 0.98N(100gf), 1.96N(200gf), 2.94N(300gf), 4.9N(500gf), 9.8N(1kgf)
Hardness Scale	HV0.5, HV1, HV2, HV3, HV5, HV8, HV10, HV20, HV30, HV50
Conversion Scales	HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRE, HK, HBMK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Min Measuring Unit	0.25μm
Hardness Range	5~4000HV
Eyepiece	10X analog eyepiece
Objective	10X, 20X
Magnification	100X (observe), 200X (measurement)
XY Work Table (Optional)	0.01mm/100 mm, Max Travel Range: 25x25mm, Moving Resolution Ratio: 0.001mm
Dwell Time	1~99S (1 second per step)
Data Output	LCD screen display, built-in printer
Test Space	175mm x 125mm (Height x Depth)
Power Supply	AC220V, 50Hz
Standard	ISO 6507 ASTM E92, BS 4274, GB/T 4340.2
Overall Dimension	520×210×620mm
Net Weight	71kg
Packing Size	680×470×750mm
Gross Weight	91kg

Specification
Item	Quantity
Large round test table	1
Medium size test table	1
10X analog eyepiece	1
V-shape test table	1
Vickers hardness block	1
Accessory case	1
10X objective lens	1
Spare Fuses (2A)	1
20X objective lens	1
Production certificate	1
Dust cover	1
Warranty card	1
Manual book	1
