| Technical Parameter | |
|---|---|

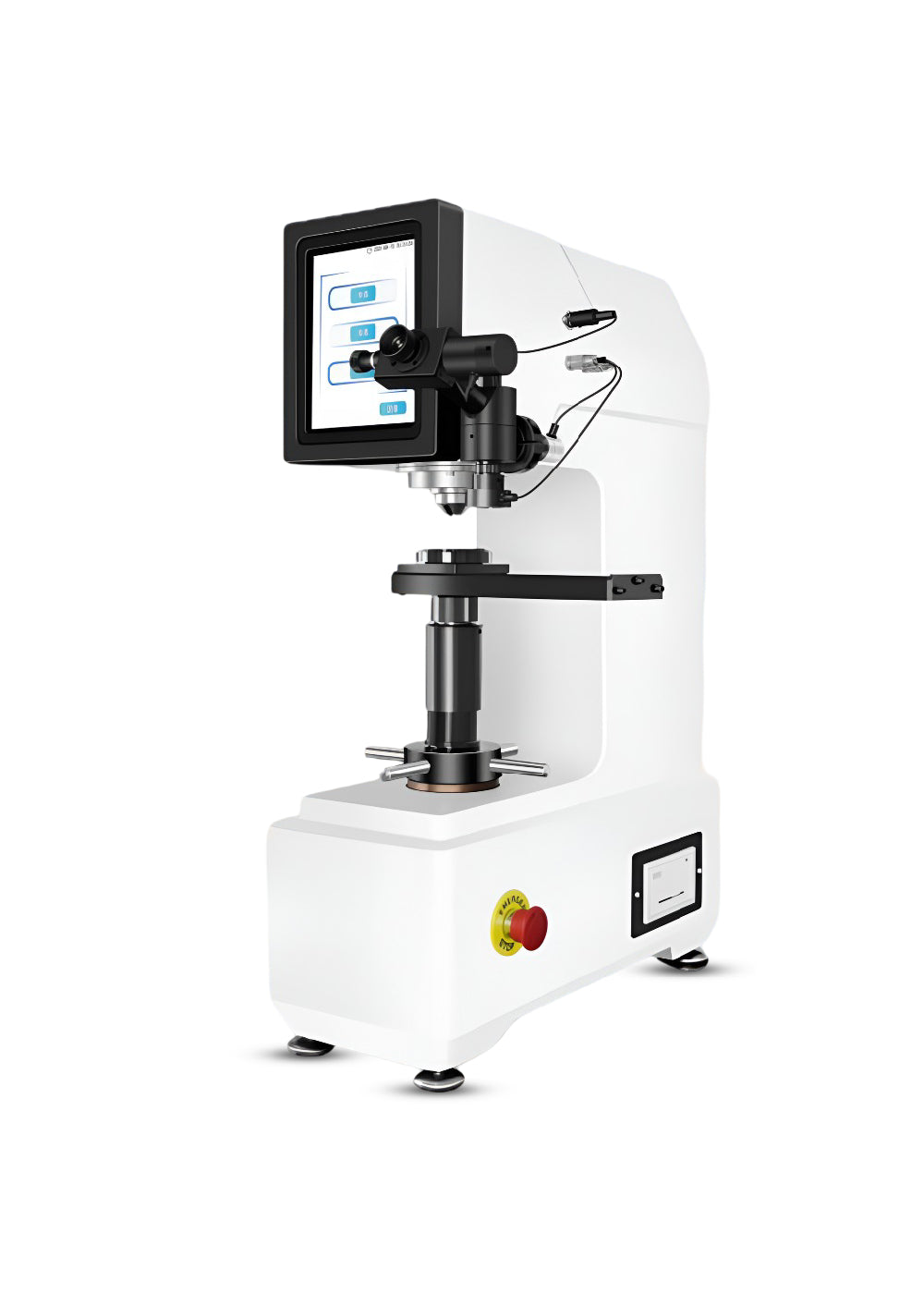

| Model | ASI-HBV-250T |
| Test force | 5–250kg |
| Brinell Scale | HBW1/5, HBW1/10, HBW1/30, HBW2.5/62.5, HBW2.5/15.625, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/100 |
| Vickers Scale | HV5, HV10, HV20, HV30, HV40, HV50, HV60, HV80, HV100, HV120 |
| Test force (details) |
Brinell: 5kgf(49N), 6.25kgf(61.25N), 10kgf(98N), 15.625kgf(153.125N), 30kgf(294N), 31.25kgf(306.25N), 62.5kgf(613N), 100kgf(980N), 125kgf(1225N), 187.5kgf(1837.5N), 250kgf(2450N) Vickers: 5kgf(49N), 10kgf(98N), 20kgf(196N), 30kgf(294N), 40kgf(392N), 50kgf(490N), 60kgf(588N), 80kgf(784N), 100kgf(980N), 120kgf(1176N) |
| Holding Time | 0–99s |
| Hardness resolution | 0.1HBW, 0.1HV |
| Allowed sample size |
Max. Sample height in vertical: 165mm Max. Sample height in horizontal: 100mm |
| Magnification | Eyepiece: 15×, 2.5× (for Brinell), 5× & 10× (for Vickers) Total magnification: 37.5×, 75×, 150× |
| Hardness read | Touchable LCD display, built-in printer and RS232 port |
| Power supply | AC220V, 50–60Hz |
| Standards |
ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 ISO 6506, ASTM E10-12, JIS Z2248, GB/T 231.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 |
| Dimensions |
Machine size: 540×340×800mm Packing size: 761×580×940mm |
| Weight | N/W: 80kg; G/W: 130kg |
| Standard Accessories (The Packing List) | |
| 15X eyepiece | 1 |
| Brinell indenter diameter of 2.5mm, 5mm, carbide ball | 1 each |
| Vickers indenter | 1 |
| Objective Lenses 2.5×, 5×, 10× | 1 each |
| Hardness block | 1 |
| Exterior lighting | 1 |
| Power line | 1 |
| Printer paper | 1 |
| Sliding test sets | 1 |
| Adjust level screw | 4 |
| Fuse 2A | 2 |
| Accessory box | 1 |
| Dust proof cover | 1 |
