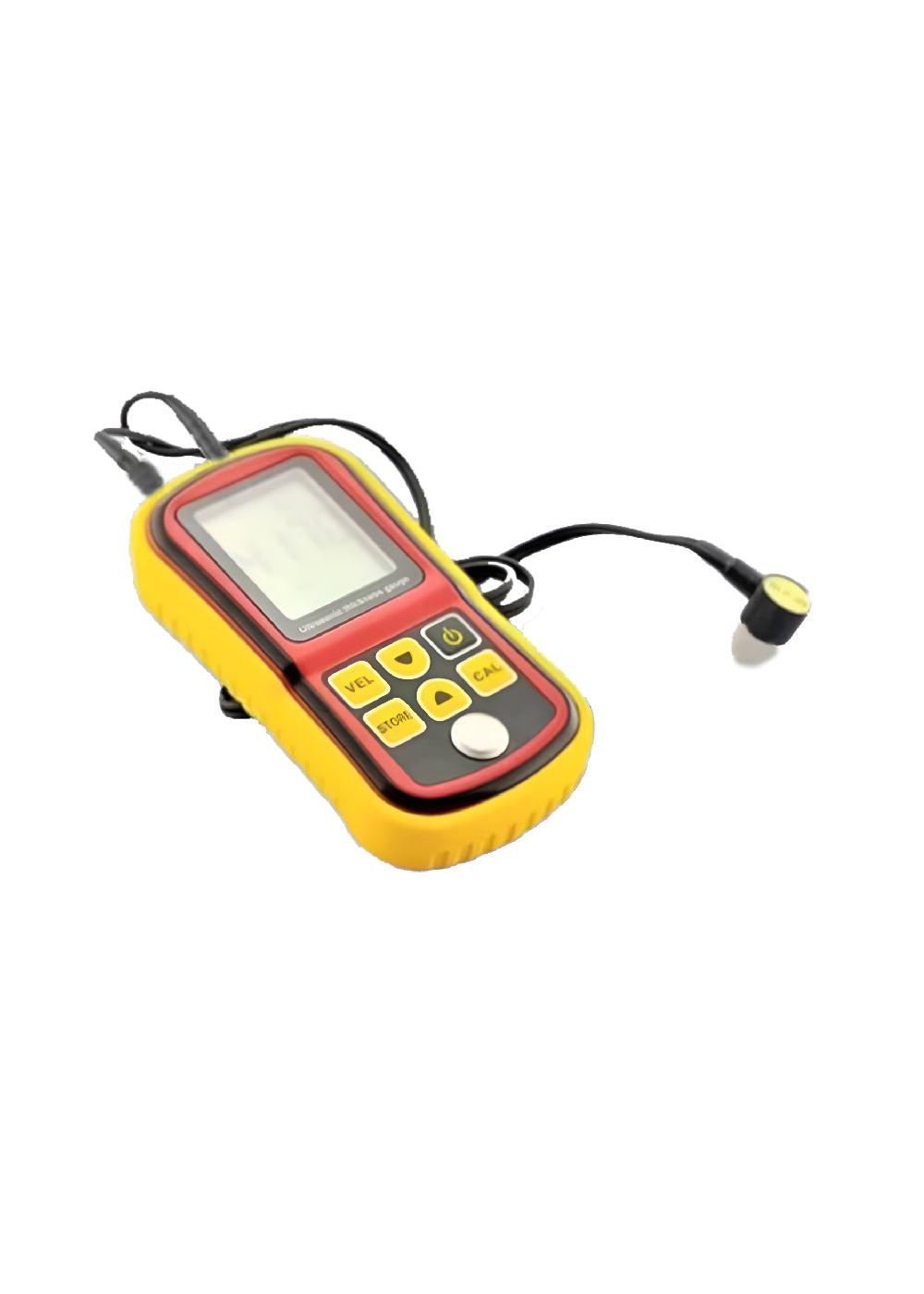

Ultrasonic Thickness Gauge - ASI-UTM-9 Eco

Ultrasonic Thickness Gauge - ASI-UTM-9 Eco

Regular price Rs. 12,500.00
Regular price Sale price Rs. 12,500.00
Sale Sold out

Features

  1. Under the known thickness of the complex and unknown materials, it can anti-tests the Accurate velocity;
  2. Set up the upper and lower tolerance, auto alarm if exceed; State prompt function;
  3. Suitable for measuring the thickness of metal (steel, cast iron, aluminum, copper etc.), plastic, ceramics, glass, and glass fiber etc.
  4. Can be equipped with many different frequencies, different chip sizes of double crystal probes;
  5. Zero and two calibrations, it can correct system errors automatically;
  6. Coupled with state prompt function;
  7. With backlight LCD display, easy to use under the dark environment
Read more

View full details
Technical Parameters
Materials All homogeneous materials which allow transmission of Ultrasonic energy through it like most of metals, hard plastics, glass, ceramics etc.
Measuring Range 1.2 to 225mm ( Least Count 0.10 and 0.01mm )
Probe Dual crystal
Key Pad Sealed tactile type.
Velocity 1000 m/s to 9999 m/s
Display 4” Digital with LCD type with Backlight. It displays Thickness,
Least Count 0.1 MM
Accuracy 0.10mm up to 50mm and 1.5% above
Calibration One step calibration for steel ( 4mm Test Block )
Battery 2 x1.5 V Battery
Operating time 250 working hours
Low Battery Indicator Blinking LCD Reading
Auto Power off Yes
Size mm 72*146*29MM
