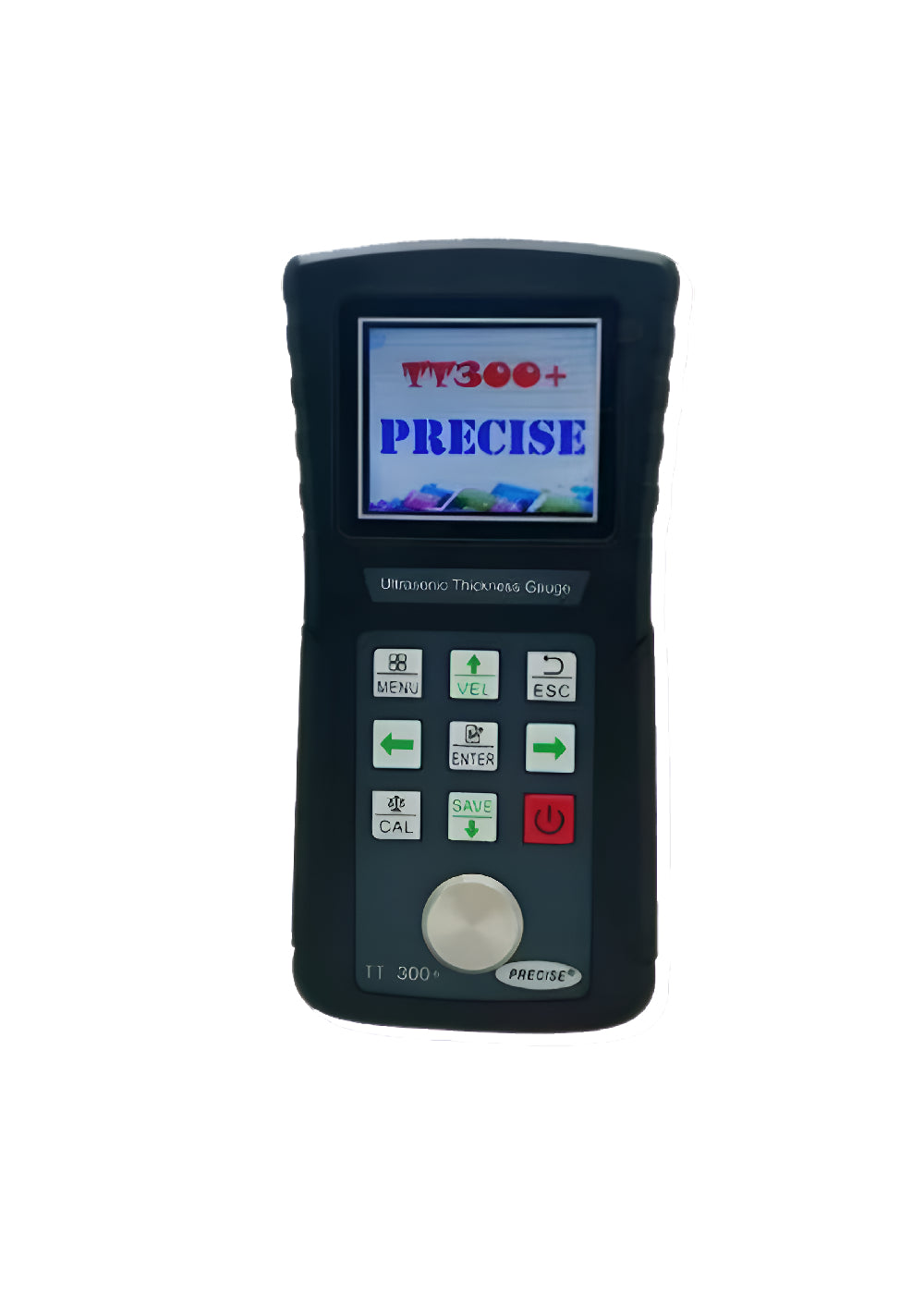

Ultrasonic Thickness Gauge - ASI-TT 300+

Ultrasonic Thickness Gauge - ASI-TT 300+

Regular price Rs. 33,500.00
Regular price Sale price Rs. 33,500.00
Sale Sold out

Features

  1. Under the known thickness of the complex and unknown materials, it can anti-tests the Accurate velocity;
  2. Set up the upper and lower tolerance, auto alarm if exceed; State prompt function;
  3. Suitable for measuring the thickness of metal (steel, cast iron, aluminum, copper etc.), plastic, ceramics, glass, and glass fiber etc.
  4. Can be equipped with many different frequencies, different chip sizes of double crystal probes;
  5. Zero and two calibrations, it can correct system errors automatically;
  6. Coupled with state prompt function;
  7. With backlight LCD display, easy to use under the dark environment
Read more

View full details
Technical Parameters
Display 128*64 LCD With LED Backlight;
Measuring Range (0.75~700)MM(Steel)
Velocity Range (1000~9999)m/s;
Resolution 0.01mm
Measuring Accuracy ± (0.5%H+0.04mm ; H is Thickness Gauge)
Calibration Function Probe Zero and two-point calibrations;
Storage 3000 Value of saved data
Communication port USB
Working Temperature -20℃~+50℃
Storage Temperature 30℃~+70℃
Working Humidity ≤90%
Power Source 2Pcs 1.5V AA Size
Working Time More than 50 hours (LED Backlight off).
Outline Dimensions 145mm*74mm*32mm
Weight 245g
