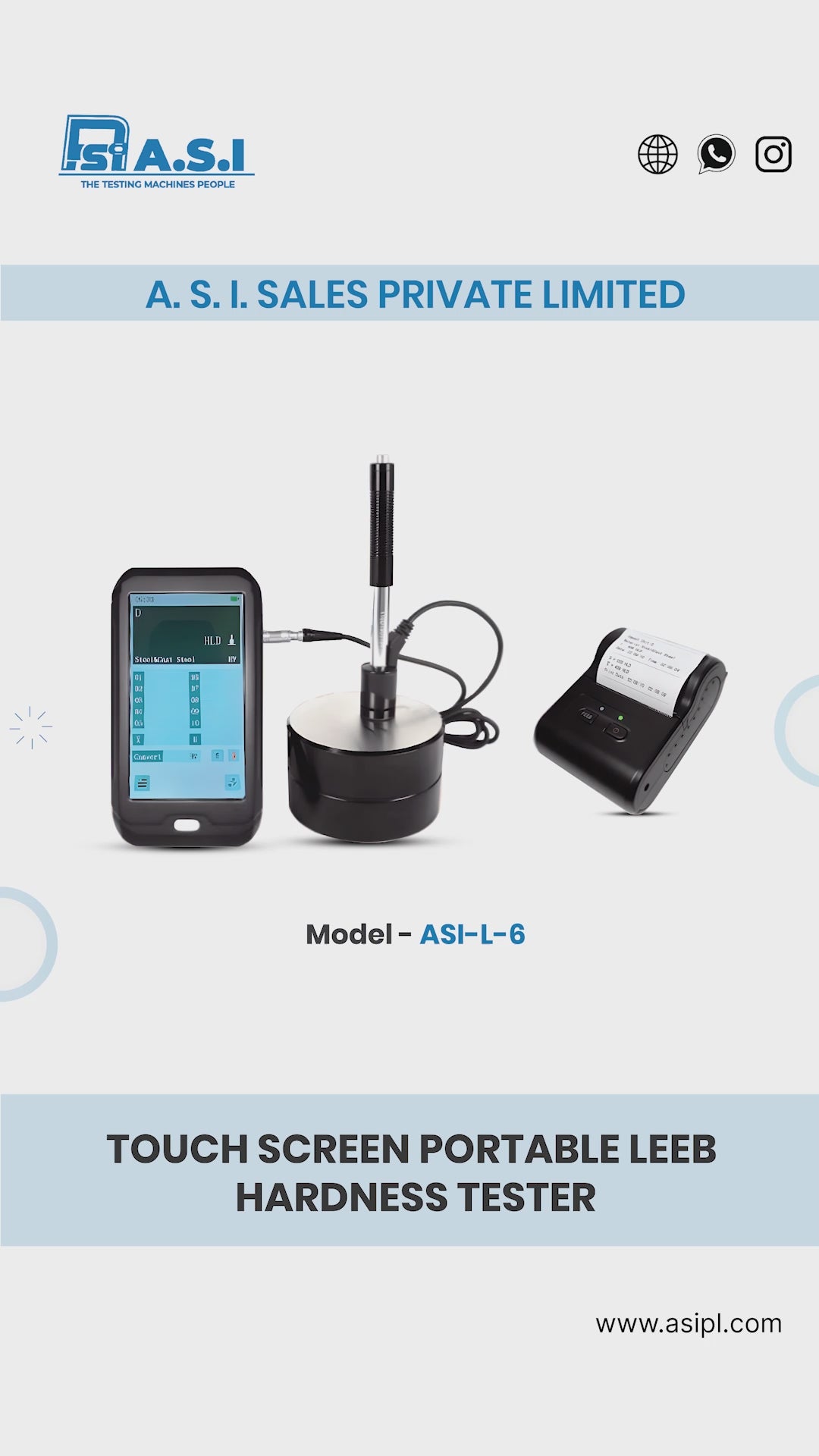

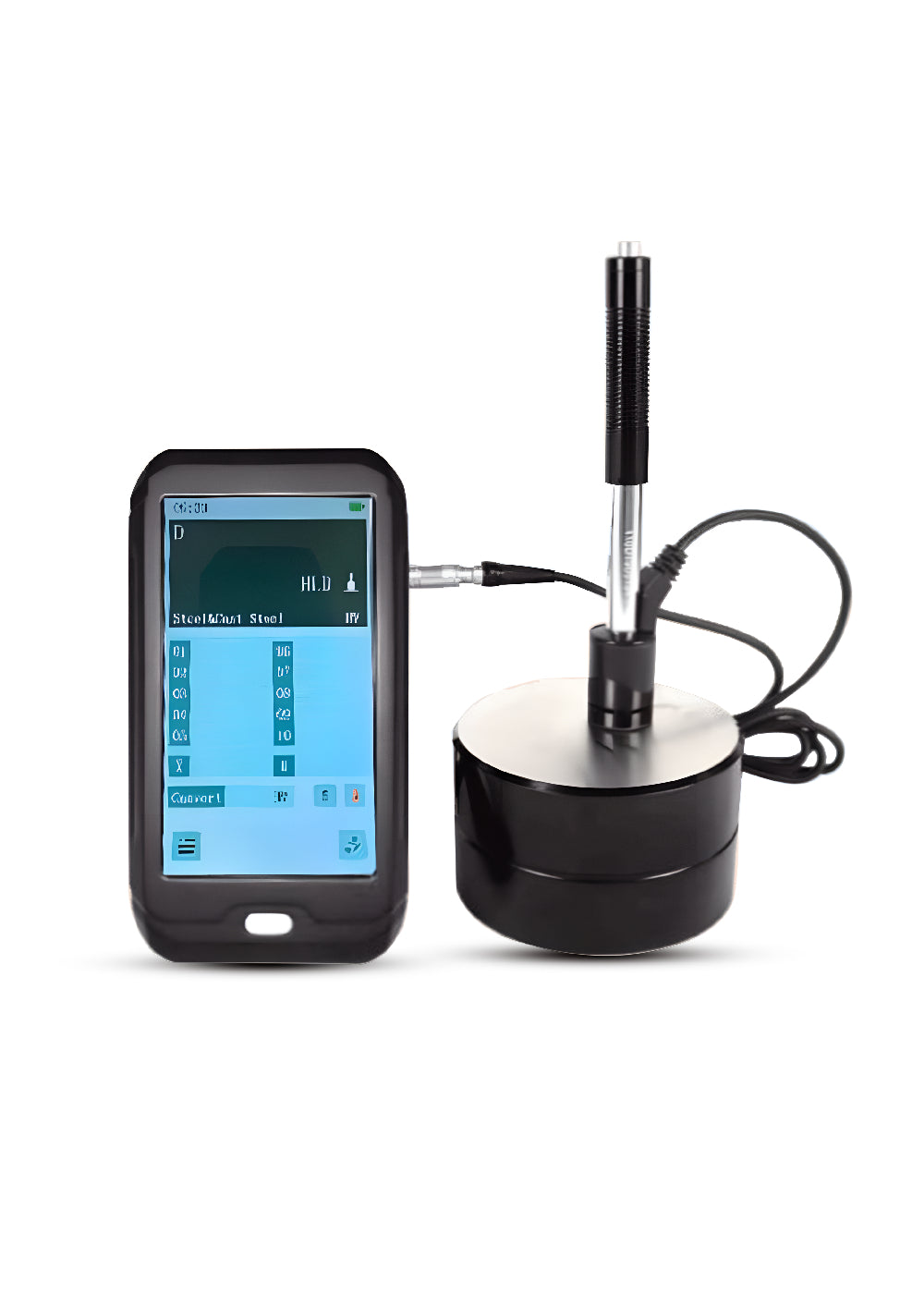

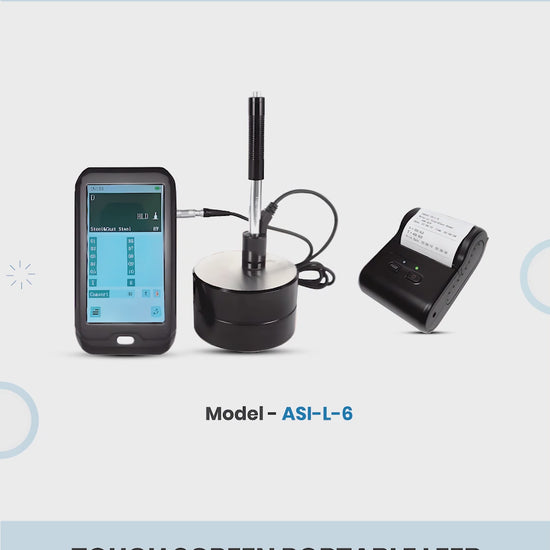

Touch Screen Portable Leeb Hardness Tester - ASI-L-6

Touch Screen Portable Leeb Hardness Tester - ASI-L-6

Regular price Rs. 175,000.00
Regular price Sale price Rs. 175,000.00
Sale Sold out

Features:

  1. Large touch screen (5 inches), showing all functions and parameters.
  2. Test at any angle, even upside down.
  3. Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HV, HB, HRA, HRB, HRC, HSD, Mpa.
  4. Seven impact devices are available for special application. Automatically identify the type of impact devices.
  5. Large capacity memory could store 2000 pcs test data.
    Testing information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
  6. Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
  7. Battery information indicates the rest capacity of the battery and the charge status.
  8. User calibration function.

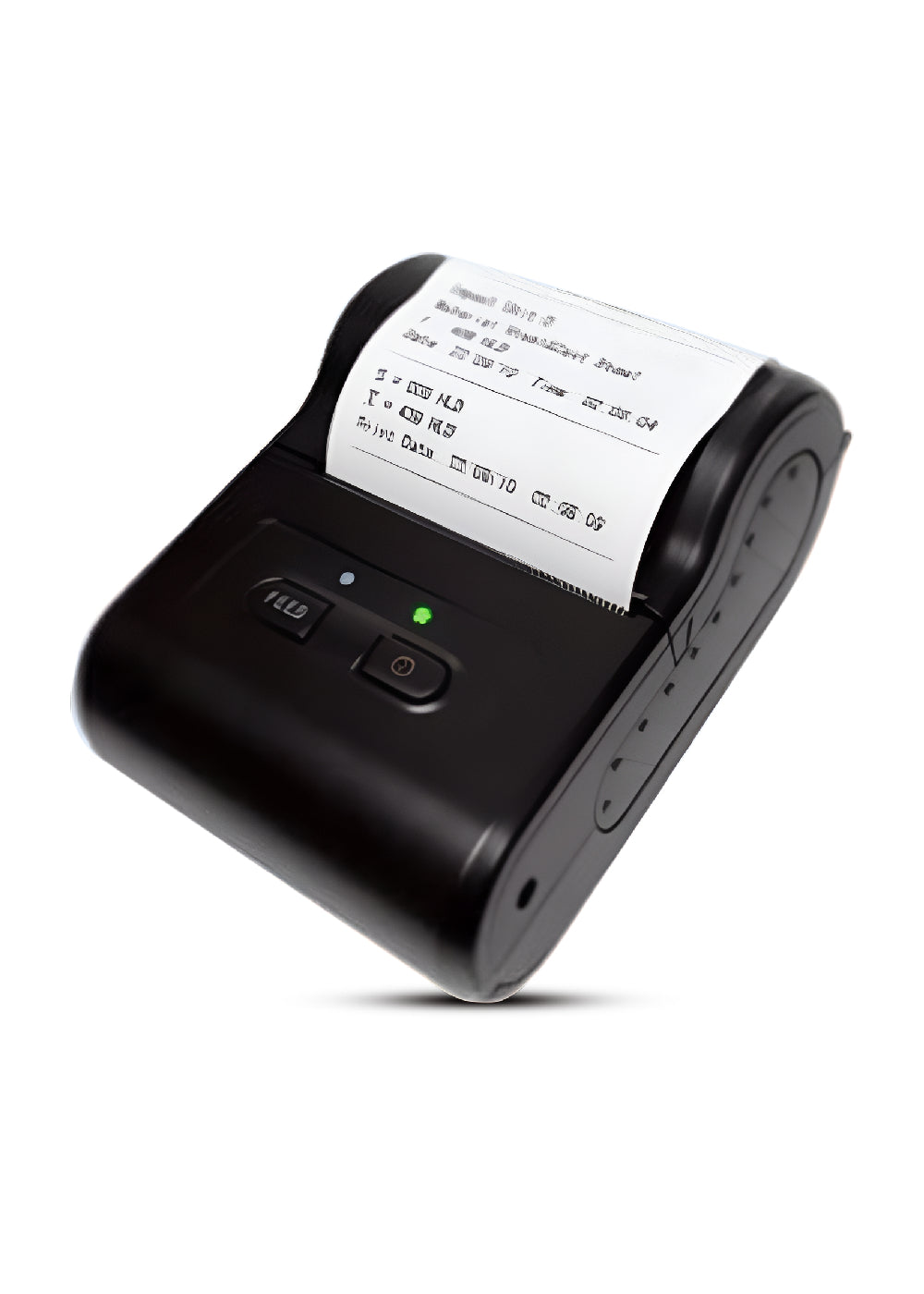

  9. High quality high speed bluetooth printer support the immediate printing function. It can save data permanently.
  10. Li rechargeable battery 1400mAh as the power source. Charge circuit integrated inside the instrument.
  11. Auto power off to save energy.
  12. Industrialized housing design, sturdy, compact, portable, high reliability, suitable for harsh operating environment, vibration, shock and electromagnetic interference.
  13. Excellent after-sale service system for high quality products - one year guarantee and all life maintenance. Easy to buy and comfortable to use.
Read more

View full details

Technical Specification

ModelASI-L-6
Measuring RangeHLD (170-960), HRA (59.1-88), HRB (13.5-101.7), HRC (17.9-69.5), HB (19-683), HV (80-1042), HS (30.6-102.6), MPa (74 to 2652 N/m²)
Impact DirectionsUp, down, horizontal, slanting up, slanting down
Impact DeviceC, D, DC, DL, D+15, G
Measuring MaterialsSteel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, Cu-Zn alloys, Cu-Sn alloys, etc
StandardsASTM A956, DIN50156-1, GB/T17394-1998
Hardness ScalesHL, HB, HRB, HRC, HRA, HV, HS
Display854×400 5 inch color capacitive touch LCD screen
Memory2000 pieces test data
Battery1400mAh Li-battery
PrinterBluetooth printer
Interface PortUSB
EnvironmentTemperature: -30~80°C ; Humidity: 5%-95%
Dimensions151×85×27mm (host)
Weight255g (host)
Packing size/G.W34×33×15cm; 5.5kg
