Total Station ASI-AL-212RCW

Name: Total Station ASI-AL-212RCW
Brand: Asisales
SKU: ASI-AL-212RCW
Availability: InStock

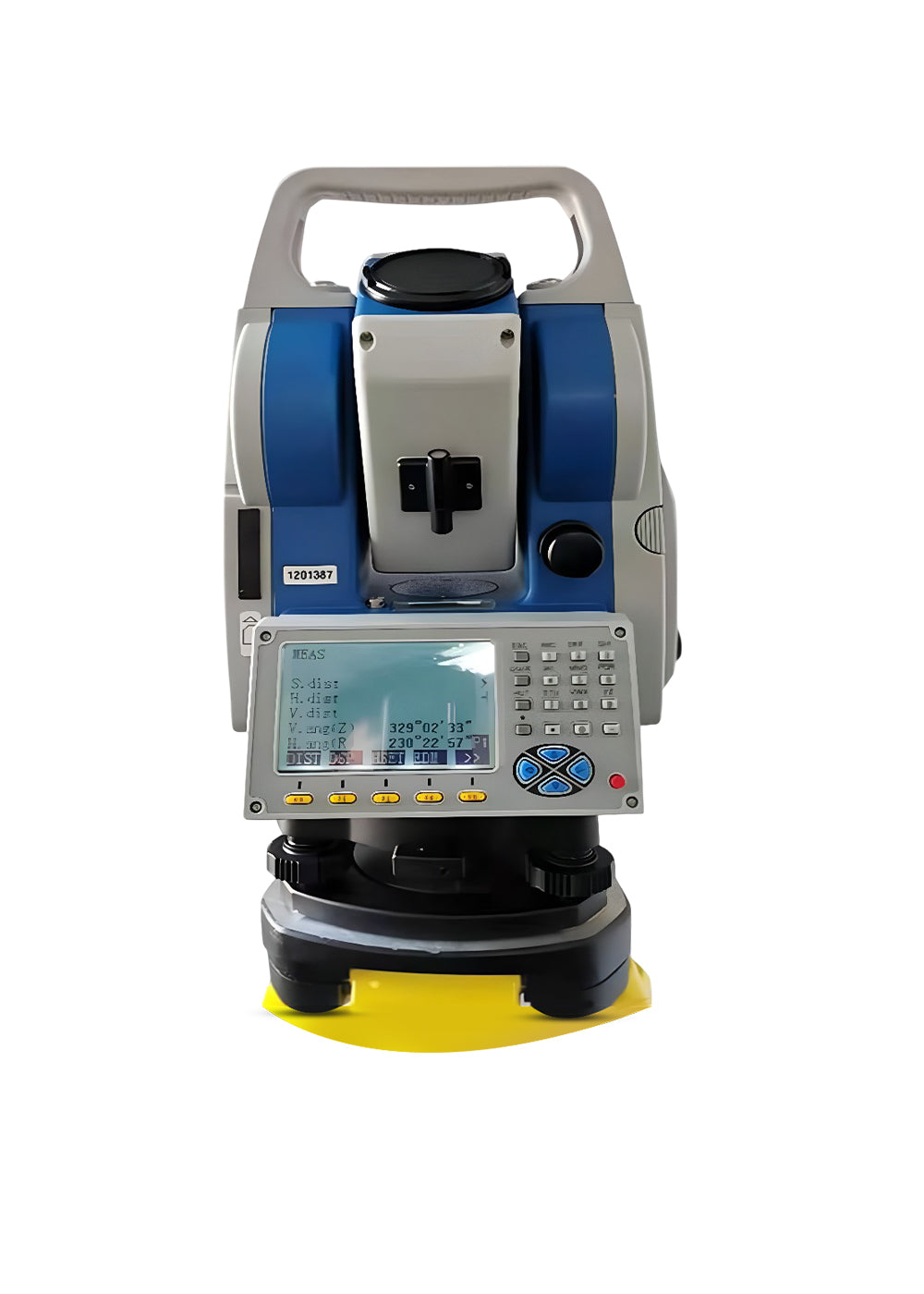

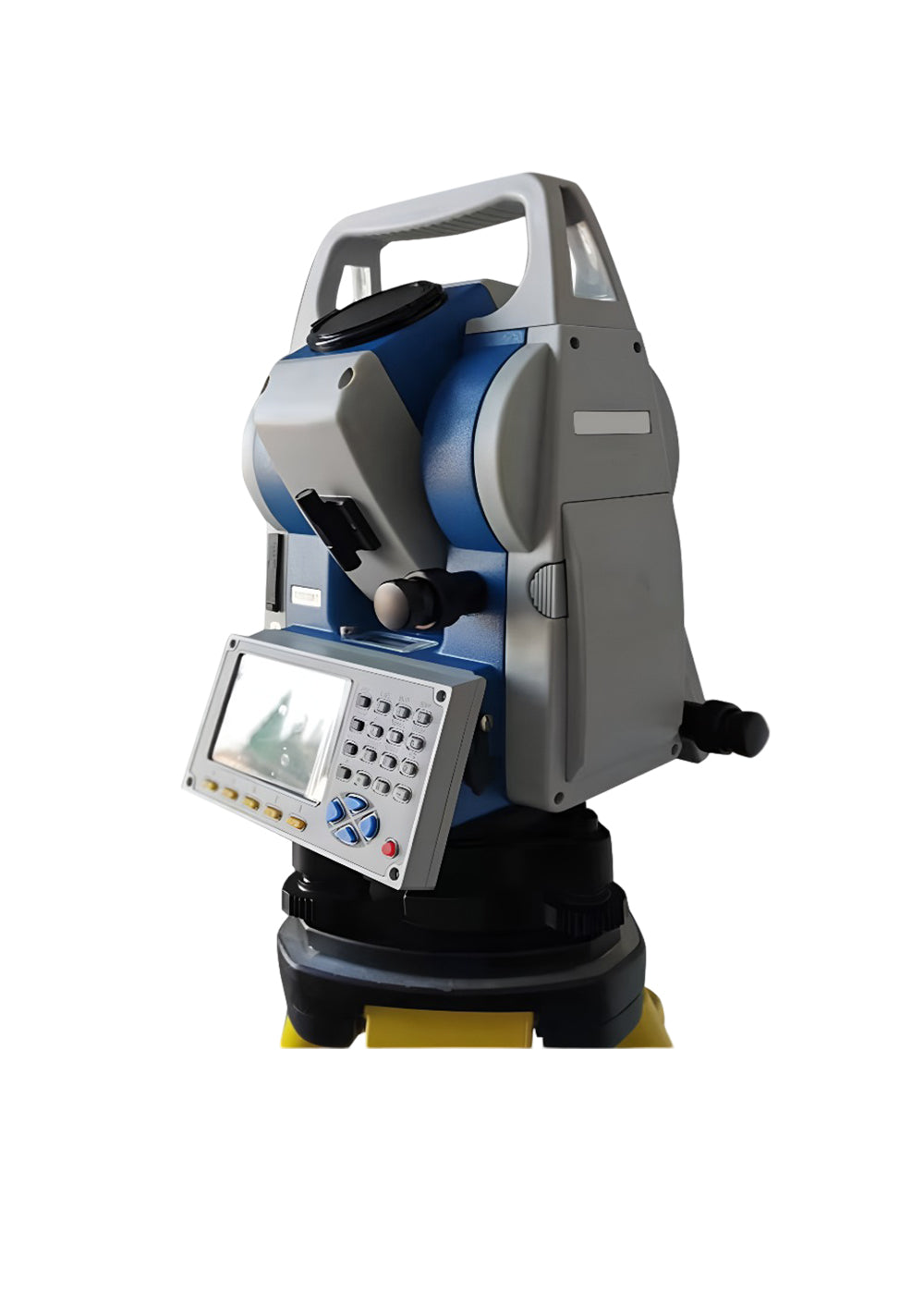

The ASI-AL-212RCW is a high-precision Total Station engineered for demanding surveying and construction applications. It combines robust optics, advanced angle and distance measurement capabilities, and modern digital features in a compact, durable design. Equipped with a powerful 30X magnification erect telescope, this model ensures sharp visibility and accurate targeting, even over long distances.

View Catalogue Get Latest Price

View full details

Technical Specifications:

MODEL		ASI-AL-212RCW
TELESCOPE
Image		Erect
Magnification		30X
Field of view		1°30"
Mini reading		1mm
DISTANCE MEASURING
Single Prism		7500m
Reflector sheet		1000m
Non-prism		600m
ACCURACY
Prism mode		(2mm + 2ppm × D) m.s.e.
Reflector model		(2mm + 2ppm × D) m.s.e.
Non-prism mode		(5mm + 3ppm × D) m.s.e.

ANGLE MEASUREMENT
Measuring method		Absolute encoding
Detection method		H: 2 sides V: 2 sides
Diameter of circle		79mm
Accuracy		2″
Angle unit		360°/400gon/6400mil
DISPLAY
Display unit		Graphic LCD 192×128 dots with White Backlight
No of unit		2 sides
Keyboard		Alphanumeric Keys
AUTO VERTICAL COMPENSATOR
Tilt sensor		DUAL axis
Method		Liquid-electric
Plummet		Laser
DATA STORAGE & INTERFACE
Internal memory		50,000 points
Data interface		RS232 / SD card / Bluetooth / USB pen drive (32GB)
Working temperature		-20~+55°C
