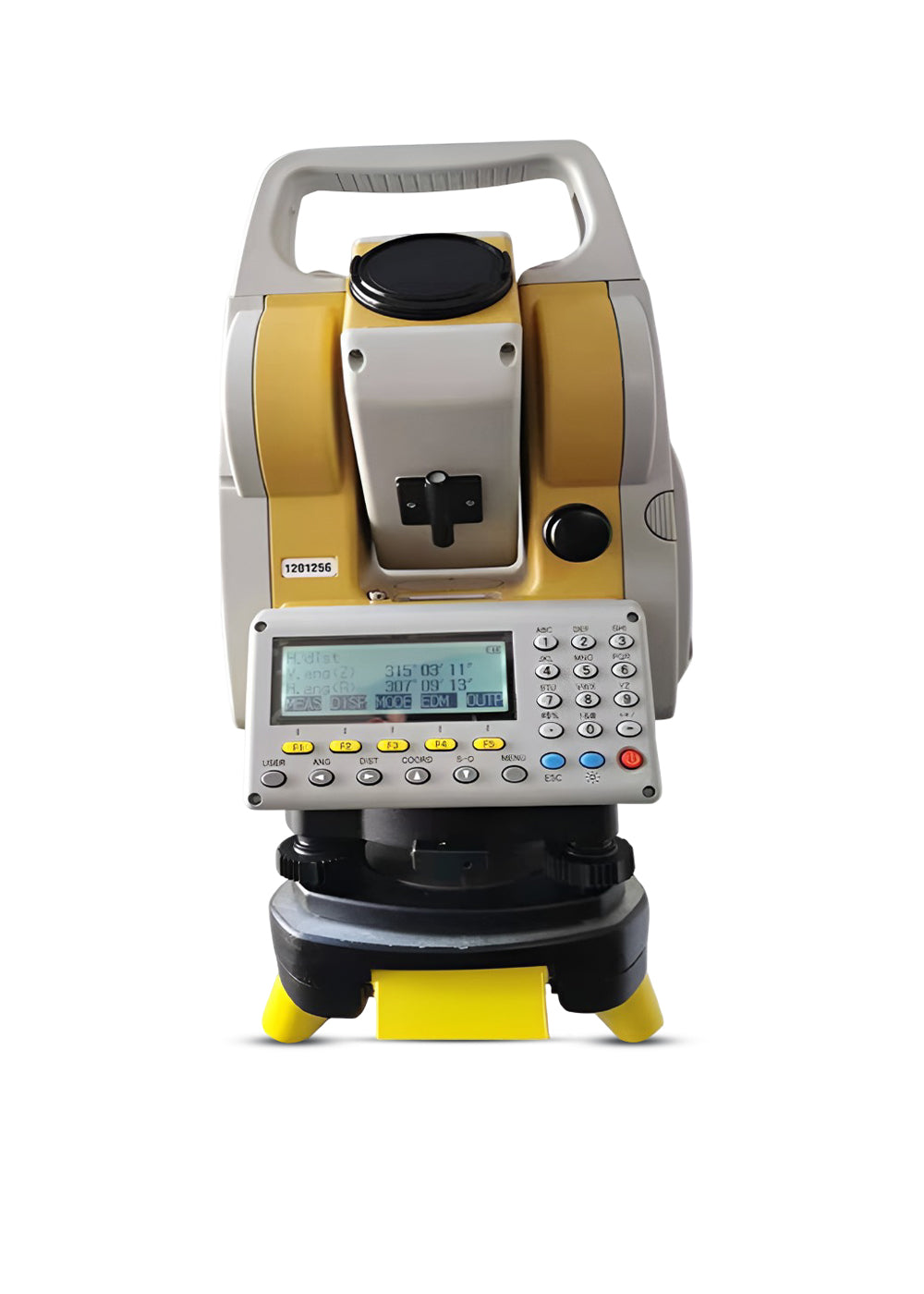

TOTAL STATION ASI-AL-212RC

TOTAL STATION ASI-AL-212RC

Description

The ASI-AL-212RC is a high-accuracy total station designed for precision surveying and construction layout tasks. It combines long-range distance measurement capabilities with angular accuracy, a laser plummet, and advanced data storage options. Equipped with a user-friendly dual-side LCD display, Bluetooth connectivity, and onboard memory for 50,000 points, this model ensures reliable performance in both prism and non-prism modes. Built for harsh field conditions, it operates in temperatures ranging from -20°C to +55°C, making it a dependable solution for modern survey professionals.



Read more
View Catalogue Get Latest Price

View full details

Technical Specifications:

MODEL ASI-AL-212RC
TELESCOPE
ImageErect
Magnification30X
Field of view1°30"
Mini reading1mm
DISTANCE MEASURING
Single Prism7500m
Reflector sheet1000m
Non-prism600m
ACCURACY
Prism mode(2mm+2ppm x D)m.s.e.
Reflector model(2mm+2ppm x D)m.s.e.
Non-prism mode(5mm+3ppm x D)m.s.e.
ANGLE MEASUREMENT
Measuring methodAbsolute encoding
Detection methodH: 2 sides    V: 2 sides
Diameter of circle79mm
Accuracy2"
Angle unit360°/400gon/6400mil
DISPLAY
Display unitGraphic LCD 192x64 dots with White Backlight
No of unit2 sides
KeyboardAlphanumeric Keys
AUTO VERTICAL COMPENSATOR
Tilt sensorSingle axis
MethodLiquid-electric
PLUMMETLaser
DATA STORAGE & INTERFACE
Internal memory50,000 points
Data interfaceRS232/Bluetooth/USB pen drive (32GB)
Working temperature-20° to +55°C
