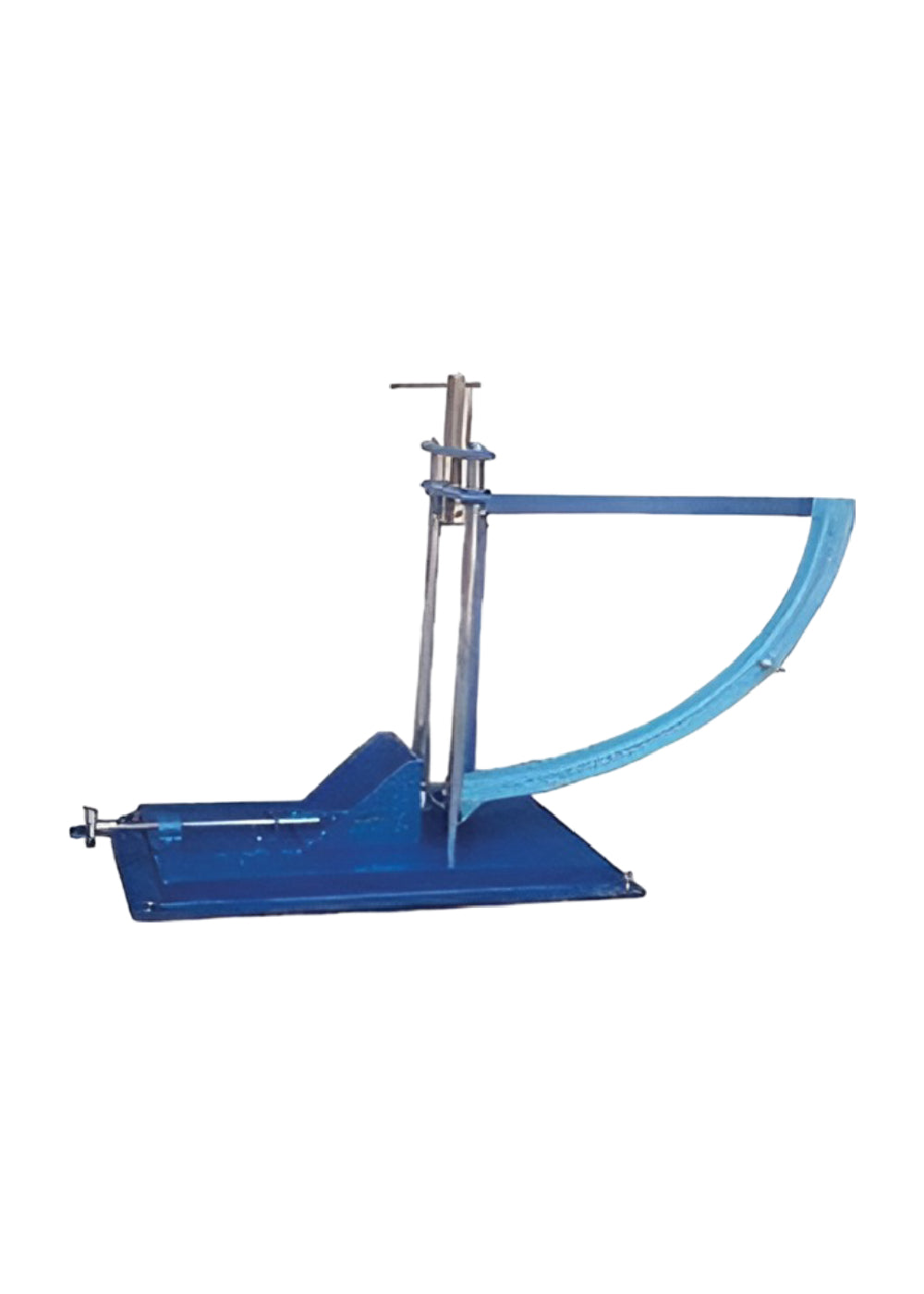

Tile Flexure Testing Machine - ASI-644

Tile Flexure Testing Machine - ASI-644

Unit for finding flexural strength of clay roofing tiles and Cement flooring tiles. Flexural load is applied on the tiles using lead shots. The machine consists of a stand on which two 40mm dia. bearing rollers or 12mm dia. rollers are placed at centre distance of 150mm, 200mm, 250mm, or 2720mm as the case may be, The third upper roller applies centrally flexural load by means of lever arrangement. Lead shot contained in an upper vessel start flowing into lower container at a rate of 45 to 55 kg per minute of 200kg per minute there by, starting loading the specimen. Arrangement is made such that loading automatically stops when specimen breaks. Supplied without lead shots.

Accessory: Lead shot supplied in packs of 20Kgs.

Read more
View Catalogue Get Latest Price

View full details
Summary of Indian Standards – IS: 654, IS: 1257, IS: 1706
Feature IS: 654 IS: 1257 IS: 1706
Title Specification for Clay Roof Tiles Specification for Burnt Clay Flooring Tiles Methods of Testing Burnt Clay Building Bricks
Purpose To define quality requirements for clay tiles used in roofing To specify requirements for flooring tiles made of burnt clay To provide standard methods to test physical properties of clay bricks
Material Burnt clay Burnt clay Burnt clay bricks
Key Requirements
  • Dimensions & tolerance
  • Water absorption ≤ 20%
  • Breaking load ≥ 80 kgf
  • Flatness & squareness
  • Compressive strength ≥ 15 N/mm²
  • Water absorption ≤ 16%
  • Water absorption test
  • Efflorescence test
  • Compressive strength test
  • Dimension measurement
Test Methods Included Water absorption, breaking strength, dimensional tolerance Strength, water absorption, visual inspection Lab tests for all key properties (as listed above)
Applications Used in sloped roofing systems Used for indoor and outdoor floor surfaces Used for quality control and certification of bricks in construction
Reference Use Architectural roofing standards Flooring in buildings, especially where non-slip surface is needed Referenced in IS 1077 and IS 3495 (brick standards)
