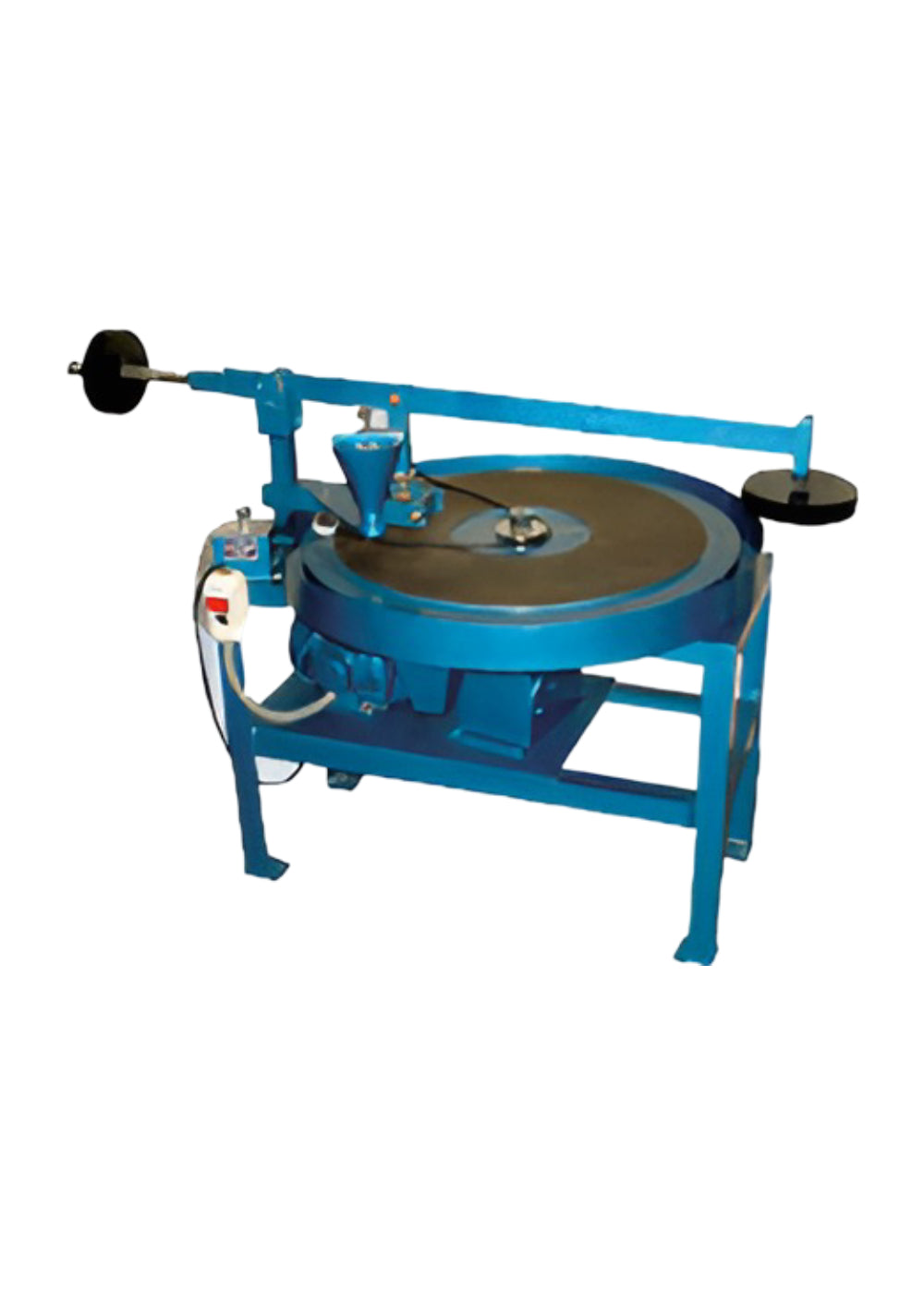

Tile Abrasion Testing Machine - ASI-645

Tile Abrasion Testing Machine - ASI-645

This is used for determination of resistance to wear for cement concrete flooring tiles. Tilesspecimen of size 7.06cm x 7.06cm is pressed tace-wise under specific load on a grinding path and abrasive powder is evenly spread on the rotating grinding path and after specific number of revolutions of the grinding disc the second parallel side of the tile is subjected to wear for similar number of rotations. The wear of the tile is measured on a thickness gauge specifically made for the purpose.

The machine consists of a disc rotating at a speed of 30 rpm in a circular tray. A bracket is provided to hold the specimen. A counter balance lever loads the specimen. Load applied is 30kgf. A funnel is fitted to evenly spread abrasive powder on the grinding path. A pre-set counter automatically stops the machine after 22 revolutions. This counter is re-adjustable. The machine works on 440 volts AC, three phase electrical supply. On request machine to operate on 230Volts A.C. supply can also be supplied.

Read more
View Catalogue Get Latest Price

View full details
Summary of Indian Standards – IS: 1237 & IS: 1706
Feature IS: 1237 IS: 1706
Title Specification for Cement Concrete Flooring Tiles Methods of Testing Burnt Clay Building Bricks
Purpose To specify requirements and testing methods for cement concrete tiles used for flooring To provide standardized testing procedures for clay bricks used in construction
Material Cement, sand, aggregate (concrete) Burnt clay bricks
Key Requirements
  • Compressive strength ≥ 32 N/mm²
  • Water absorption ≤ 10%
  • Wear resistance ≤ 2 mm
  • Dimensions & surface quality
  • Water absorption test
  • Efflorescence test
  • Compressive strength test
  • Dimensions & warpage
Applications Used in commercial, industrial and residential floors Used in quality assurance of burnt clay bricks for walls and structures
Test Methods Included Water absorption, transverse strength, abrasion resistance, dimensional check IS 3495 (Parts 1–4): Dimensions, water absorption, efflorescence, compressive strength
Reference Use Building flooring design and materials selection Brick testing standards referenced in IS 1077
