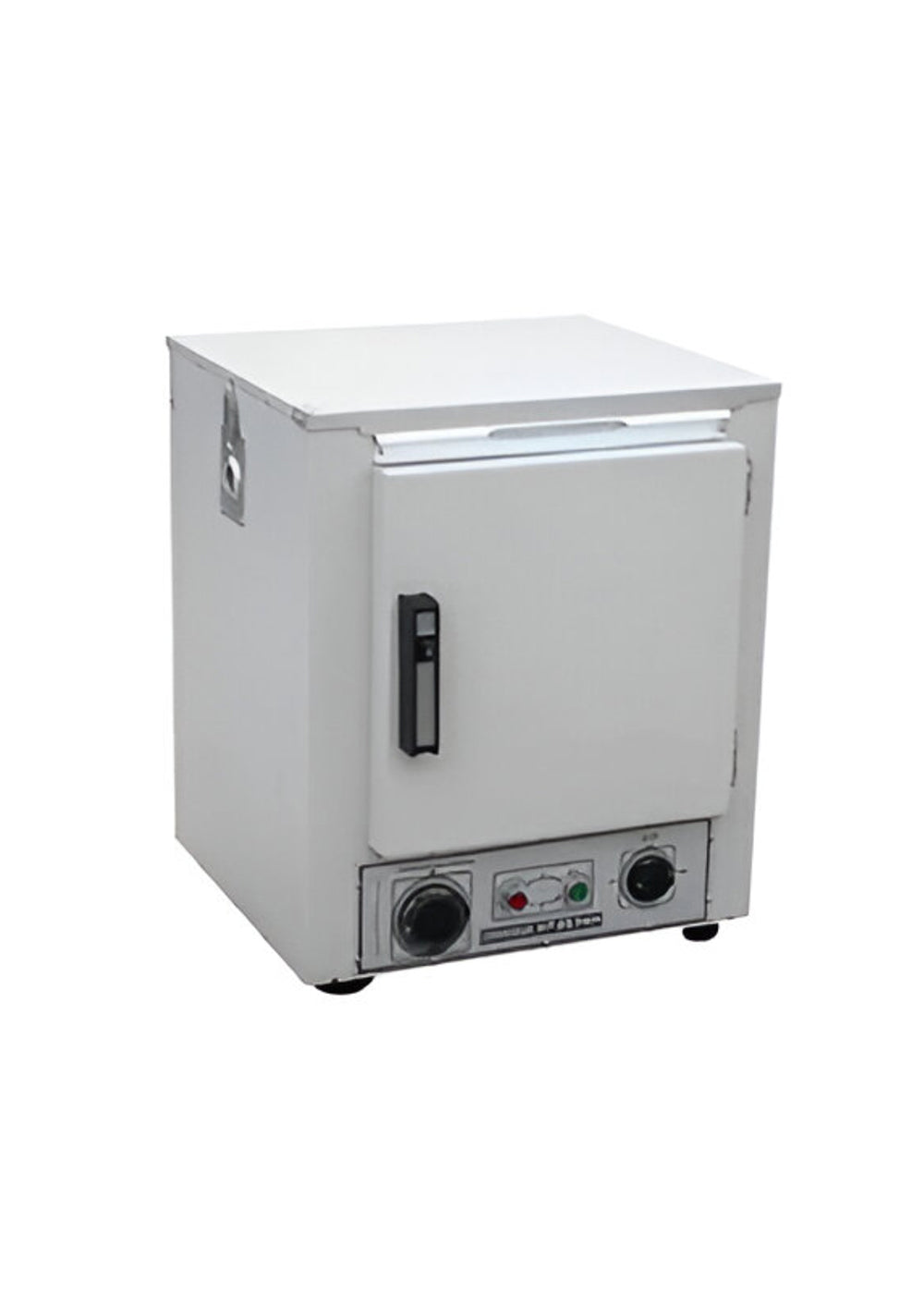

Thermostatic Hot Air Ovens Three Side Heating (Memmert Type) - ASI-1119

Overview: Thermostatic Hot Air Ovens with Three Side Heating (Memmert Type) are specially designed for precise and uniform heating, drying, and sterilization processes. These ovens are ideal for laboratories, research facilities, pharmaceuticals, and industries that require high thermal efficiency and consistent temperature performance.

Design & Construction: These ovens are constructed with a double-walled design, featuring a high-quality stainless steel inner chamber and a mild steel (powder-coated) outer body for enhanced durability and corrosion resistance. The gap between the walls is filled with high-grade insulation to minimize heat loss and improve energy efficiency.

Heating System: The Memmert-type design utilizes heating elements placed on three sides – left, right, and bottom, ensuring uniform temperature distribution throughout the chamber. This advanced design eliminates cold spots, making it suitable for critical drying and heating applications.

Temperature Control: Equipped with a capillary-type thermostat or optionally a digital temperature controller, the oven offers an adjustable temperature range from ambient +5°C to 250°C, with a control accuracy of ±1°C. The system ensures consistent and repeatable heating cycles.

Key Features:

• Three-side heating (Memmert type) for superior temperature uniformity
• Temperature range: Ambient +5°C to 250°C
• Accuracy: ±1°C
• Inner chamber: Stainless steel
• Outer body: Powder-coated mild steel
• Insulated double-walled construction
• Adjustable perforated trays for sample support
• Ventilation ports for natural or forced air circulation

Optional Accessories:

• Digital PID controller with timer
• Air circulation fan for enhanced convection
• Digital temperature indicator cum controller
• PLC-based control panel (on request)

Applications: Perfect for drying glassware, sterilizing instruments, conducting stability studies, and general laboratory heating tasks that require uniform and controlled conditions.

Note: Above Ovens can be supplied with forced air circulation fan at an extra cost. “L” Shaped thermometer or a dial thermometer can be fitted on the front side of the oven at and extra cost. All above ovens can be supplied with electronic digital temperature control cum indicator.

Ordering Instructions:

1. Select type and size of oven Suffix A for aluminum inside or M.S. for mild steel inside or S.S, for stainless inside.

2. Further Suffix 'F' if fan circulation required

3. Prefix 'D' if Digital temperature controller required.
