Slump Test Apparatus - ASI-514

It is used for the determination of the consistency of freshly mixed concrete, where the maximum size of the aggregate does not exceed 38mm. Same as above but 0.007 cubic meter capacity for maximum size of aggregate 38mm.

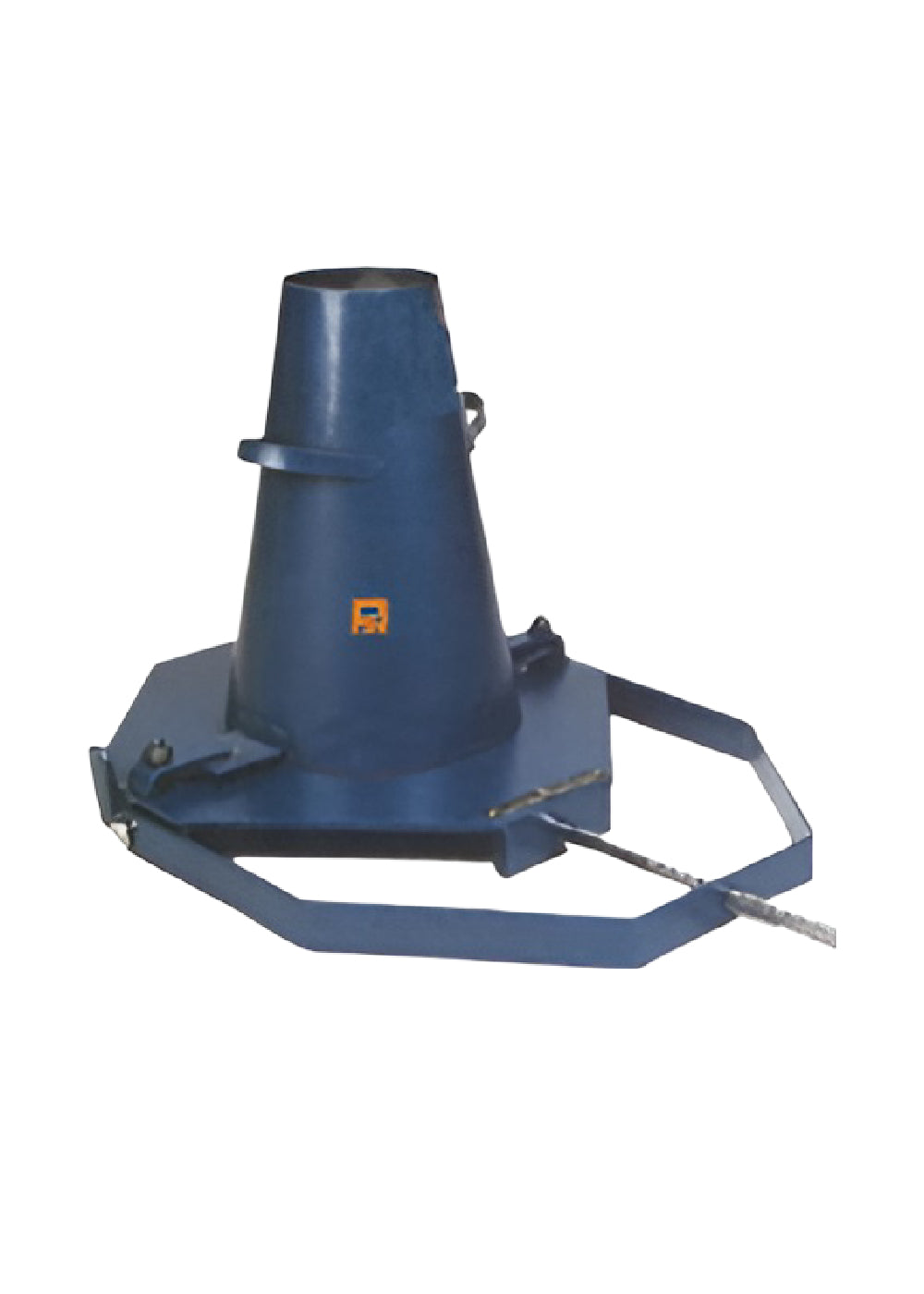

Specifications: The Apparatus consists of one slump cone with handles and foot pieces. The Slump cone has internaldimensions 20cm. dia. At base 10cm. top dia. And 30cm. height. Foot pieces can be fixed to the clamps on the base plate.The base plate has lifting handle for easy transportation. One graduated steel rod 16mm dia. x 600mm long, rounded at one end and graduated in mm, is also supplied.
