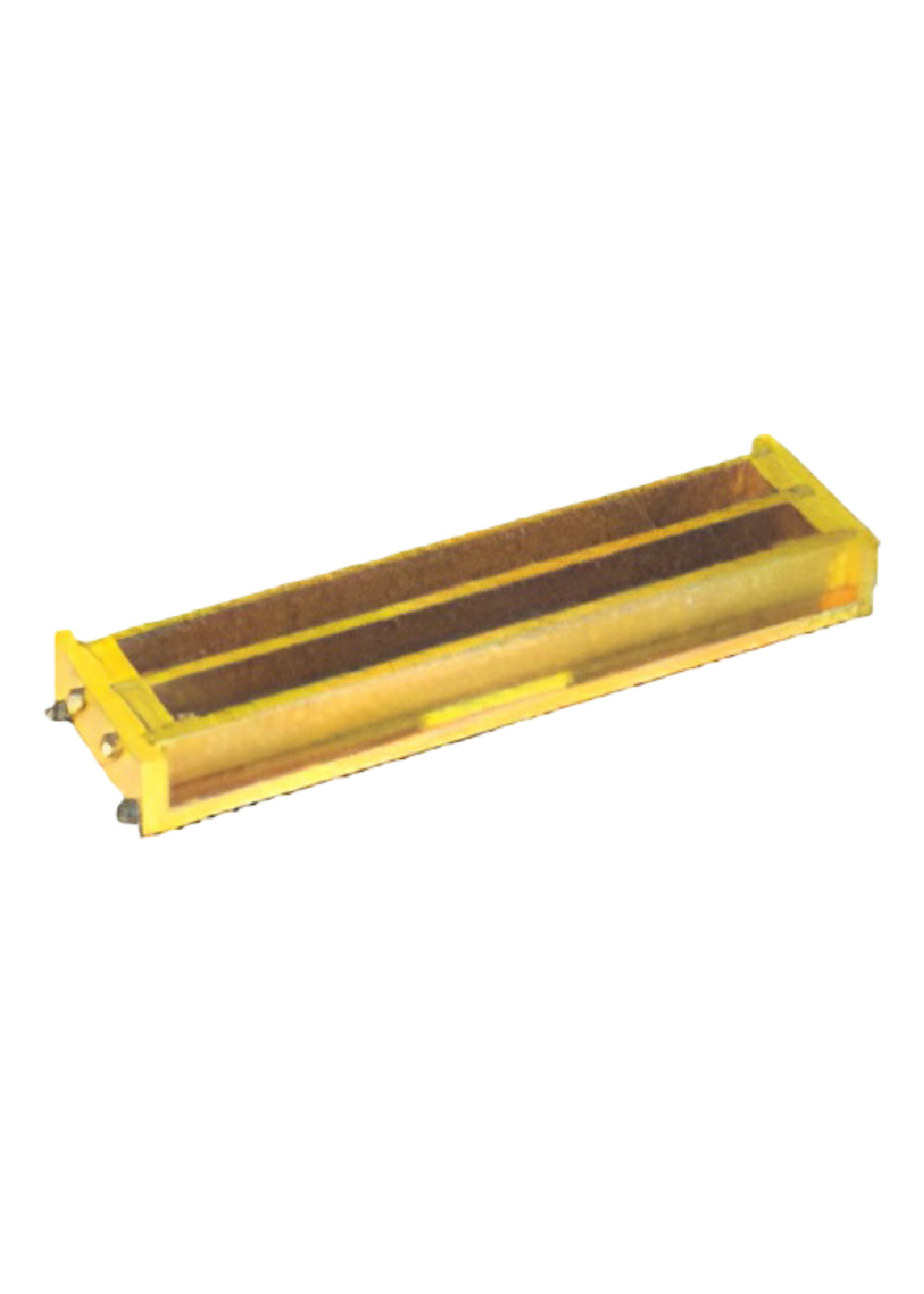

Shrinkage Bar Mould (Two Gang) - ASI-530

Shrinkage Bar Mould (Two Gang) - ASI-530

The mould is used for casting specimens of cement aggregate combinations for measuring the potential expansive alkali reactivity. Specifications: The mould, which has 25mm x 25mm x 250mm effective gauge length, is made of mild steel and has accurately machined faces. The parts of the moulds are tight fitting and firmly held together when assembled. Supplied complete with base, with two compartments assembled on an angled base plate.

Read more

View full details

IS: 4031 – Cement Physical Testing

Scope: Standard methods for testing physical properties of hydraulic cement.

  • Fineness (sieve, Blaine)
  • Consistency & Setting Time (Vicat)
  • Soundness (Le Chatelier)
  • Compressive Strength
  • Specific Gravity

IS: 10086 – Cement Test Moulds

Scope: Specification for cube moulds used in cement testing.

  • 70.6 mm cast iron/steel moulds
  • Dimensional tolerance & finish
  • Supports IS: 4031 & IS: 4032 tests

ASTM C227 – Alkali Reactivity

Scope: Mortar-bar method to assess alkali-aggregate reactivity risk.

  • Mortar bars with test cement & aggregate
  • Stored at 38°C, 100% RH
  • Length change monitored for ASR risk
  • Used in concrete durability studies
