Asisales

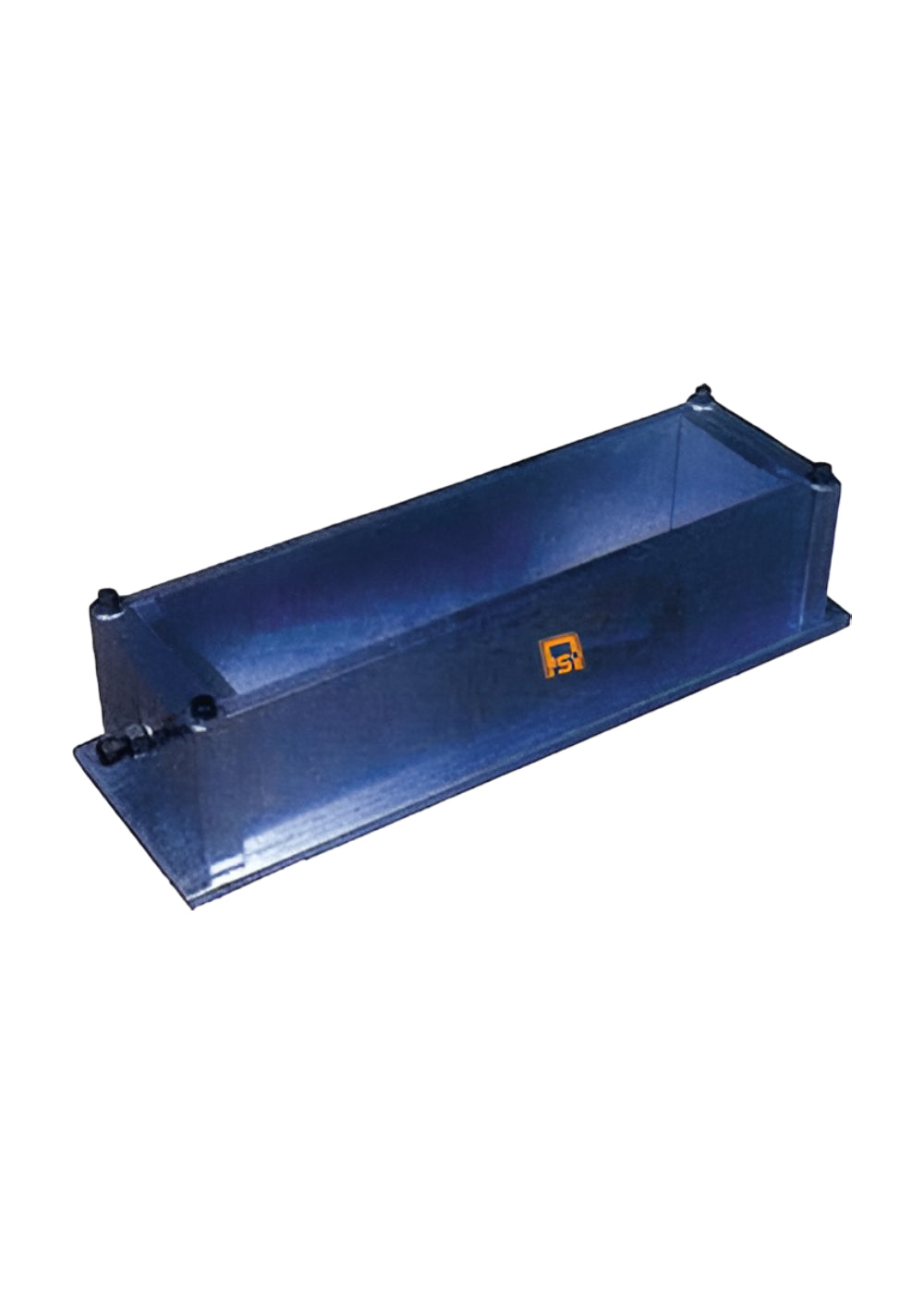

Shrinkage Bar Mould - ASI-529

Name: Shrinkage Bar Mould - ASI-529
Brand: Asisales
SKU: ASI-529
Availability: InStock

The mould is used for casting specimens of cement aggregate combinations for measuring the potential expansive alkali reactivity.

Specifications: The mould, which has 25mm x 25mmx 250mm. effective gauge length is made of mild steel and has accurately machined faces. The parts of the moulds are tight fitting and firmly held together when assembled. Supplied complete with base.

View Catalogue Get Latest Price

View full details

Standard	Title	Scope	Main Procedures / Applications
IS: 4031	Methods of Physical Tests for Hydraulic Cement	Defines procedures for evaluating key physical properties of cement.	Fineness (sieve/Blaine method) Consistency & setting time (Vicat apparatus) Compressive strength Soundness (Le Chatelier) Specific gravity
IS: 10086	Specification for Moulds for Testing Cement	Specifies dimensions, design, and materials of test moulds used in cement testing.	Cube moulds (70.6 mm for compressive strength) Material: Cast iron/steel Dimensional tolerance and surface finish Used in tests per IS: 4031 & IS: 4032
ASTM C227	Standard Test Method for Potential Alkali Reactivity of Cement–Aggregate Combinations	Determines potential expansive reaction between alkalis in cement and reactive aggregates using mortar bars.	Mortar bars with specific cement and aggregate Stored at 38°C with 100% RH for 14 days to 6 months Length change measured over time Used to predict alkali-silica reactivity (ASR)
