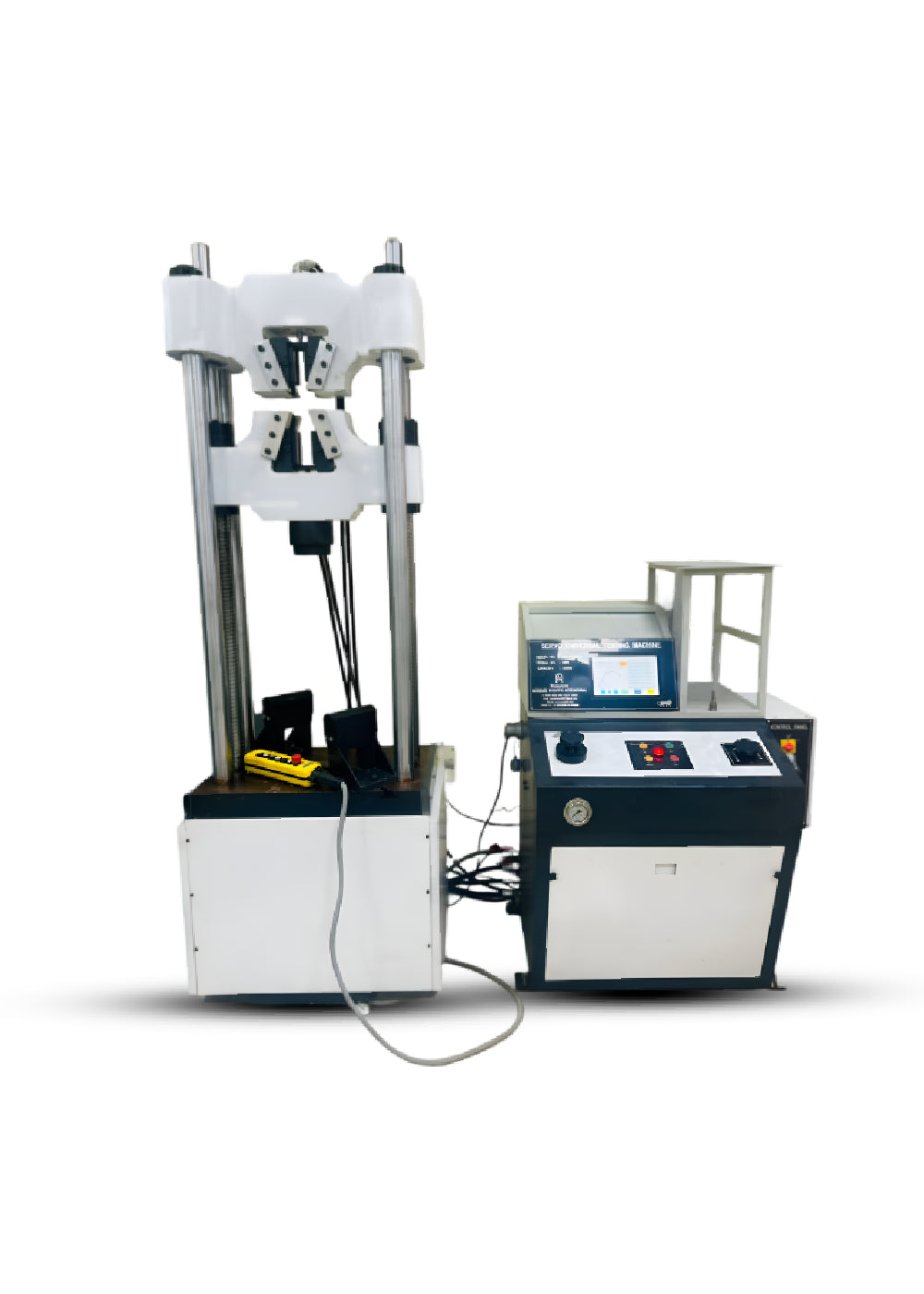

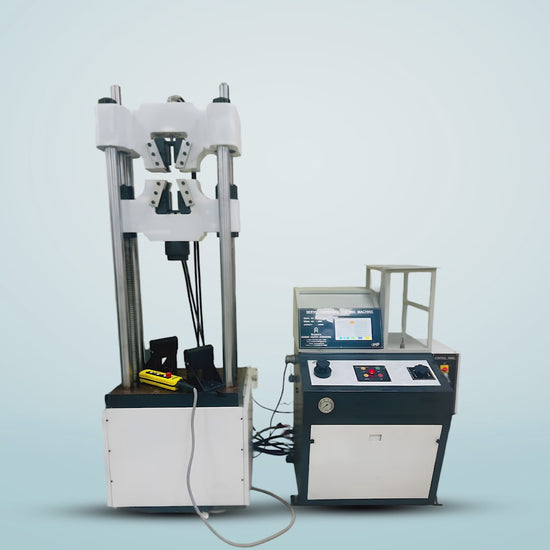

Servo Controlled Hydraulic Grip Front Loading Universal Testing Machine - AMT - SERIES (Hydraulic)

Features:

Precision hydraulic wedge-action grips ensuring a firm hold.
(Optional Purchase)
Extended test stroke and spacious test area for versatility.
High loading accuracy of ±1%.
Variable straining speeds suitable for a diverse range of materials.
Advanced servo-controlled motorized valve offering multiple
control modes:
Manual control
Load rate control
Elongation rate control
Load hold mode
Auto start with initial valve open start feature.
Intuitive Windows-based touchscreen control panel with printing capabilities.
Effortless adjustment of the lower crosshead through motor-driven threaded columns.
Extensive range of standard and customizable accessories, including load stabilizers.
Quick and easy adaptability for plain, threaded, screwed specimens.
Large clearance between columns for accommodating standard
specimens and structural elements.
User-friendly controls ensuring seamless operation.
Robust and rigid frame construction for enhanced durability.
Comprehensive safety features for secure operation.
Fully enclosed pressure transducer for maximum protection.
Available load capacities: 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN,
1500 kN, and 2000 kN.

View full details

AMT Series Table

AMT Series Model Comparison

MODEL	UNIT	AMT–10E	AMT–20E	AMT–40E	AMT–60E	AMT–1000E	AMT–1200E
Maximum Capacity	kN	100	200	400	600	1000	1200
Measuring range	kN	0-100	0-200	0-400	0-600	0-1000	0–1200
Load resolution (40000 counts full scale)	N	2.5	5	10	15	25	30
Load range with accuracy of Measurement +/-1%	kN	2 to 100	4 to 200	8 to 400	12 to 600	20 to 1000	24-1200
Resolution of piston movement (Displacement)	mm	0.01	0.01	0.01	0.01	0.01	0.01
Clearance for tensile test (At fully descended working piston)	mm	50-700	50-700	50-700	50-800	50-850	50-850
Clearance for compression test (At fully descended working piston)	mm	0-700	0-700	0-700	0-800	0-850	0-850
Clearance between columns	mm	500	500	600	600	750	750
Ram Stroke	mm	150	200	200	250	250	250
Straining/ Piston Speed (at no load)	mm/min	0-300	0-150	0-150	0-100	0-80	0-65
CONNECTED LOAD
Power	HP	2.33	2.33	3.33	3.5	5	5
V		400-440
Φ		3
STANDARD ACCESSORIES
FOR TENSION TEST
Clamping jaws for round specimens of diameter	mm	10-20, 20-30, …… , 30-40, 40-50
Clamping jaws for flat specimens of thickness	mm	0-10, 10-20, 20-30, …… , 30-40
Width	mm	50	50	65	70	70	70
FOR COMPRESSION TEST
Pair of Compression Plates of diameter	mm	120	120	120	120	160	160
FOR TRANSVERSE TEST
Table with adjustable rollers
Width of rollers	mm	160	160	160	160	160	160
Diameter of Rollers	mm	30	30	30	30	50	50
Maximum clearance between supports	mm	500	500	500	600	800	800
Radius of punch tops	mm	6,12	6,12	12,16	16,22	16,22	16,22

● Due to constant R & D specifications & features are subject to change without notice.

● Colour scheme subject to confirm at the time of order.
