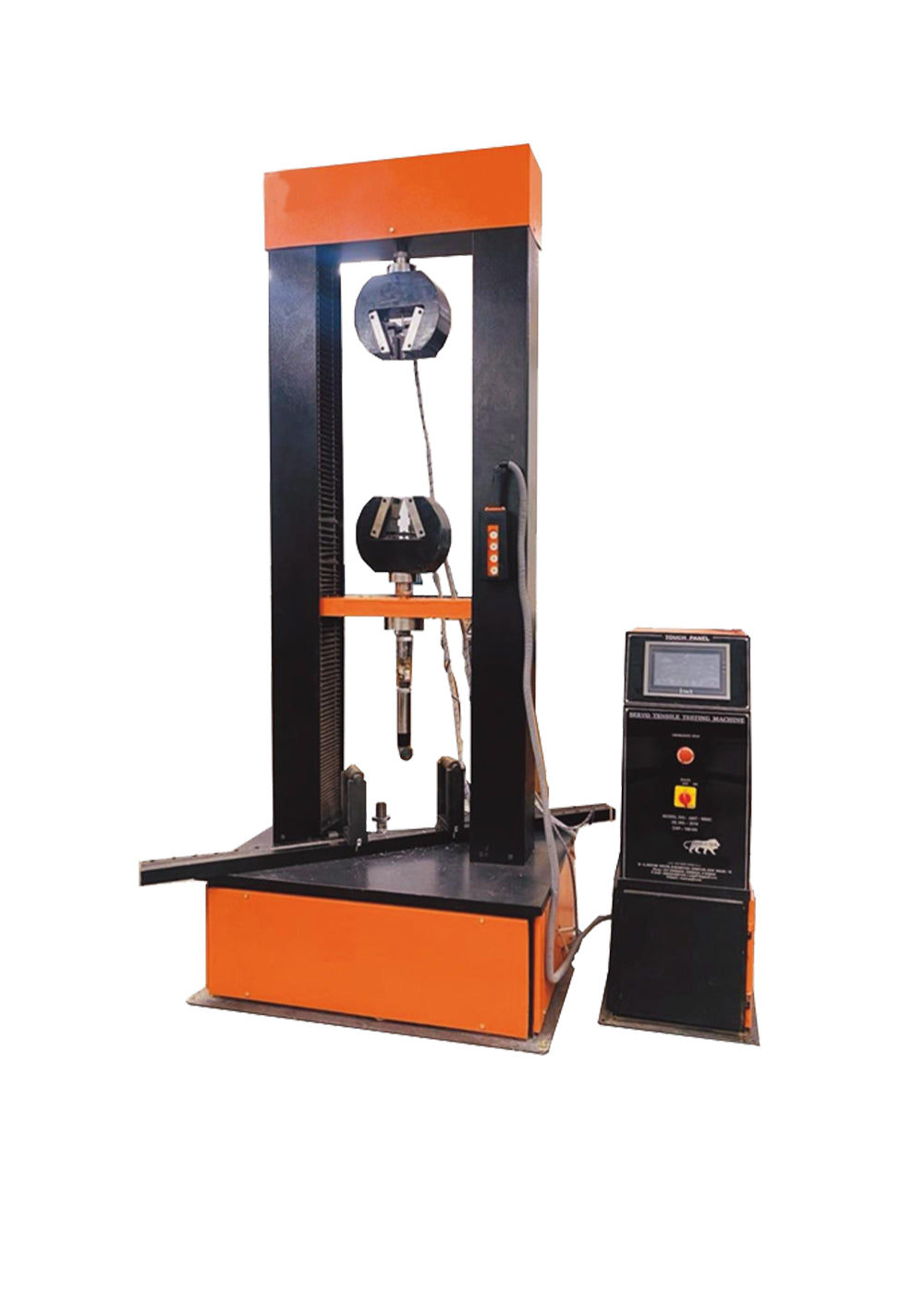

Servo Control Computerized Universal Testing Machine Capacity-100 KN, AMT-10SC

Product Overview

The ASI AMT-10SC is a servo-controlled, screw-driven universal testing machine with a 100 kN capacity, designed for precise mechanical testing of materials. Featuring Windows 11-based software, it supports a wide range of tests with high accuracy and user-friendly operation.

Key Features

• Servo-Controlled System: Screw-driven mechanism with variable speeds from 0.1 to 500 mm/min (±1% accuracy) for tension, compression, shear, flexural, and hardness tests.
• High Precision: Load cell with 0.01 kN resolution, displacement ≥600 mm (0.01 mm resolution), and electronic extensometer with ±1% accuracy.
• Double Column Design: Robust frame with ≥300 mm working width and tensile clearance of 50–600 mm.
• Advanced Software: GUI for real-time monitoring, data storage, and automatic calculations (e.g., peak load, elongation, tensile strength); multi-unit display (kg, pound, Newton, mm, cm, inch).
• Safety Features: Overload protection, limit switches, and safety norms in auto/manual modes.
• Versatile Grips: Suitable for flat (0.5–12 mm), round (5–15 mm), and wire samples.

Applications

Ideal for testing metals and non-metals in industries like manufacturing, construction, and research, supporting quality control and material analysis for tension, compression, bend, shear, and adhesion tests.
