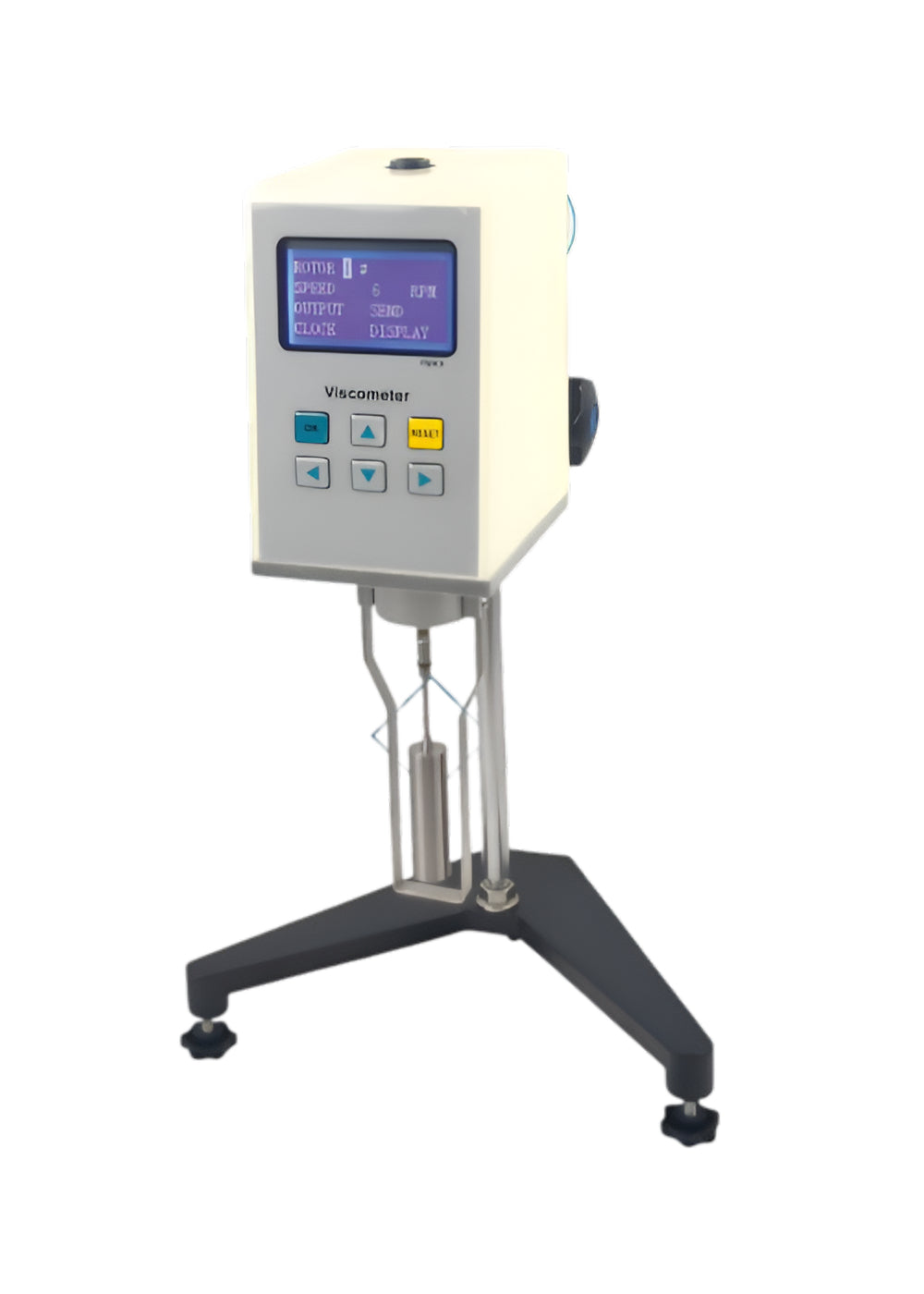

Rotational Digital Viscometer - ASI- NDJ-5S/8S/DV

Rotational Digital Viscometer - ASI- NDJ-5S/8S/DV

Features:

This instrument is a new upgrading product of our rotational viscometer. The adoption of advanced mechanical design technology, manufacturing process, microcomputer control technology guarantees accurate data collection. Ultra bright LCD display with blue back-light guarantees clear data display. With the microcomputer technology, it is easier to set measuring span (rotor number and rotating speed), take digital process of the data measured by sensor, and clearly display rotor number, rotating speed, viscosity value of the tested liquid and its full-scale percentage on the screen. Besides, its automatic switch is set for free selection of proper rotating speed or rotor number.

Function:

This instrument is an instrument to measure absolute viscosity of Newton liquid as well as apparent viscosity of non-Newton liquid featured by high flexibility, reliable test result, easy operation and beautiful appearance, which is widely applied to grease, paint, plastics, drugs, decorations, coatings and detergent. In addition, NDJ-5S/8S is also added English/Chinese interface for user's selection.

Read more

View full details
Rotational Viscometer
Viscometer Model Comparison
Model NDJ-5S NDJ-8S DV-1
Measurement Range 1~2×10⁵mpa.s 1~2×10⁵mpa.s 1~2×10⁶mpa.s
Rotor Specification 1, 2, 3 1, 2, 3, 4# 1, 2, 3, 4#
Rotating Speed of Rotor 6 / 12 / 30 / 60 rpm 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm Same as NDJ-8S
Interface No No 1. Printer Interface
2. PC Interface
3. Temperature Sensor
ROTATIONAL DIGITAL VISCOMETER
Automatic Switch Free selection of proper rotating speed or rotor number
Stable Cursor Strip-type cursor fully charged displayed when reading basically stable
Measurement Tolerance ± 2% (newtonian liquid)
Power AC 220V ±10% 50Hz±10%
Working Condition Temperature 5-35°C, Relative humidity no more than 80%
Outline Dimension (mm) 100×140×170 mm (not including the foundation)
Packing (mm) 410×490×250 mm
Net Weight 7 kg
Gross Weight 8 kg
Delivery Date (1 pc) In 2~4 days after received the payment
H.S. Code 9027
