| Standard Accessories : | |||
|---|---|---|---|
| Model | ASI-AMT-5AD / ASI-AMT-5AD/TS | ASI-AMT-5AE / ASI-AMT-5AE/TS | ASI-AMT-5AB / ASI-AMT-5AB/TS |
| Testing table 50mm dia | 1 | 1 | 1 |
| Testing table 38mm dia with "V" groove | 1 | 1 | 1 |
| Diamond indenter - Rockwell RA | 1 | 1 | 1 |
| Diamond indenter - Rockwell SF | 1 | 1 | 1 |
| Ball Indentor 1/16" | 1 | 1 | 1 |
| Ball Indentor 2.5 mm | 1 | 1 | 1 |
| Test block Rockwell "C" | 1 | 1 | 1 |
| Test block Rockwell "B" | 1 | 1 | 1 |
| Test block HBW 2.5/187.5 | 1 | 1 | 1 |
| Test block HR 30 N | 1 | ||
| Allen Spanners | 5 | 5 | 5 |
| Screw Driver | 1 | 1 | 1 |
| Clamping device | 1 | 1 | 1 |
| Telescopic sleeves | 1 Set | 1 Set | 1 Set |
| Spare fuse 1 AMP | 1 | 1 | 1 |
| Power cable | 1 | 1 | 1 |
| Brinell microscope | 1 | 1 | 1 |
| Machine cover | 1 | 1 | 1 |
| Instruction Manual | 1 | 1 | 1 |
| Technical Specifications : | ||||
|---|---|---|---|---|
| Model | Unit | ASI-AMT-5AD / ASI-AMT-5AD/TS | ASI-AMT-5AE / ASI-AMT-5AE/TS | ASI-AMT-5AB / ASI-AMT-5AB/TS |
| Major Load | N | 588.4, 980.7, 1471 (60,100,150) | 1471, 2942.2, 4413, 588.4, 980.7, 1471 (15,30,45,60,100,150) | 588.4, 980.7, 1471, 1839, 2452 (60,100,150,187.5,250) |
| Minor Load | kgf | 98.07 (10) | 29.42, 98.07 (3,10) | 98.07 (10) |
| Max Test height | mm | 215 | 215 | 215 |
| Depth of throat | mm | 133 | 133 | 133 |
| Net Wt. Approx. | kg | 75 | 77 | 77 |
| M/c dimensions | mm | L-450 W-175 H-627 | L-450 W-175 H-627 | L-450 W-175 H-627 |

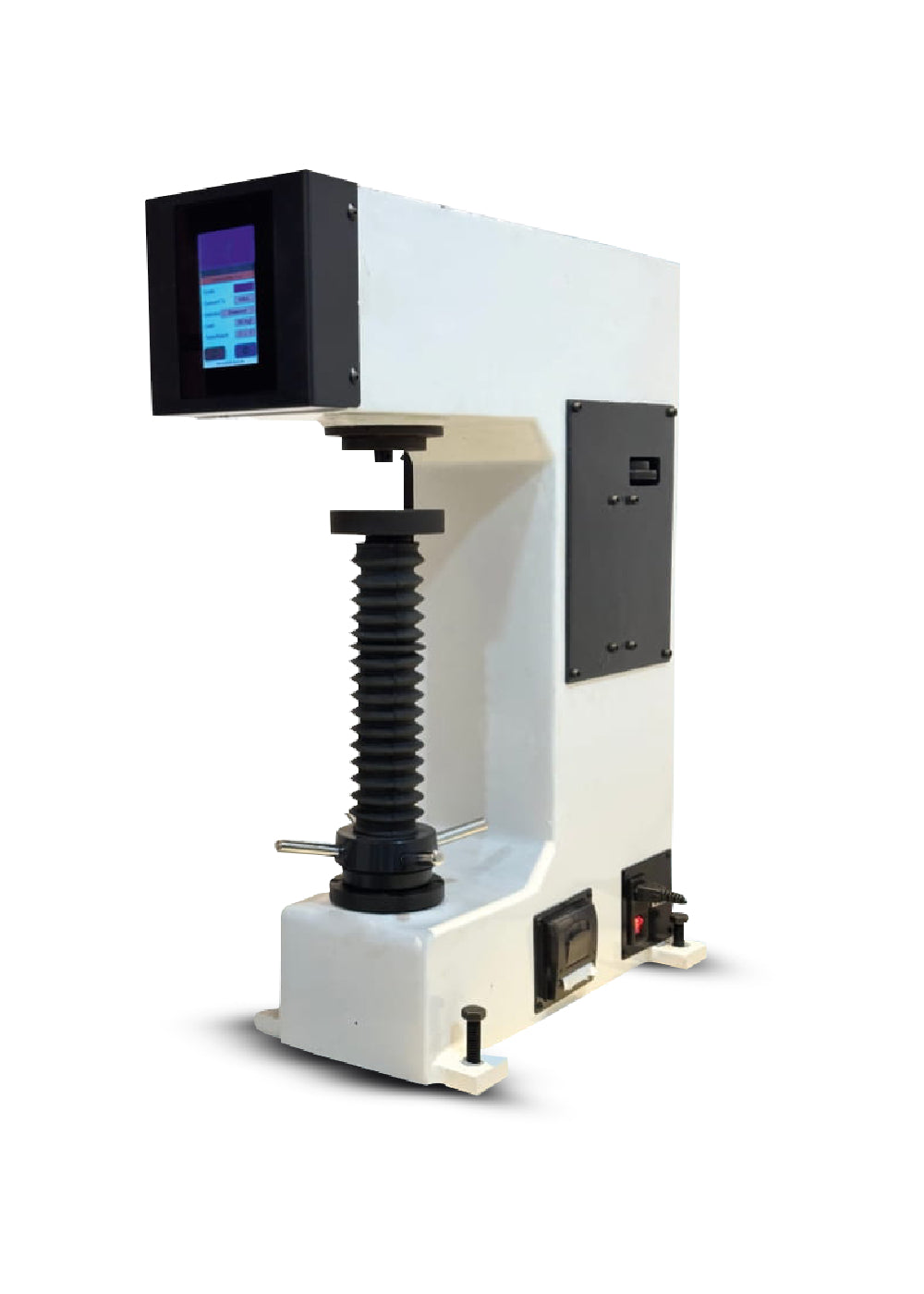

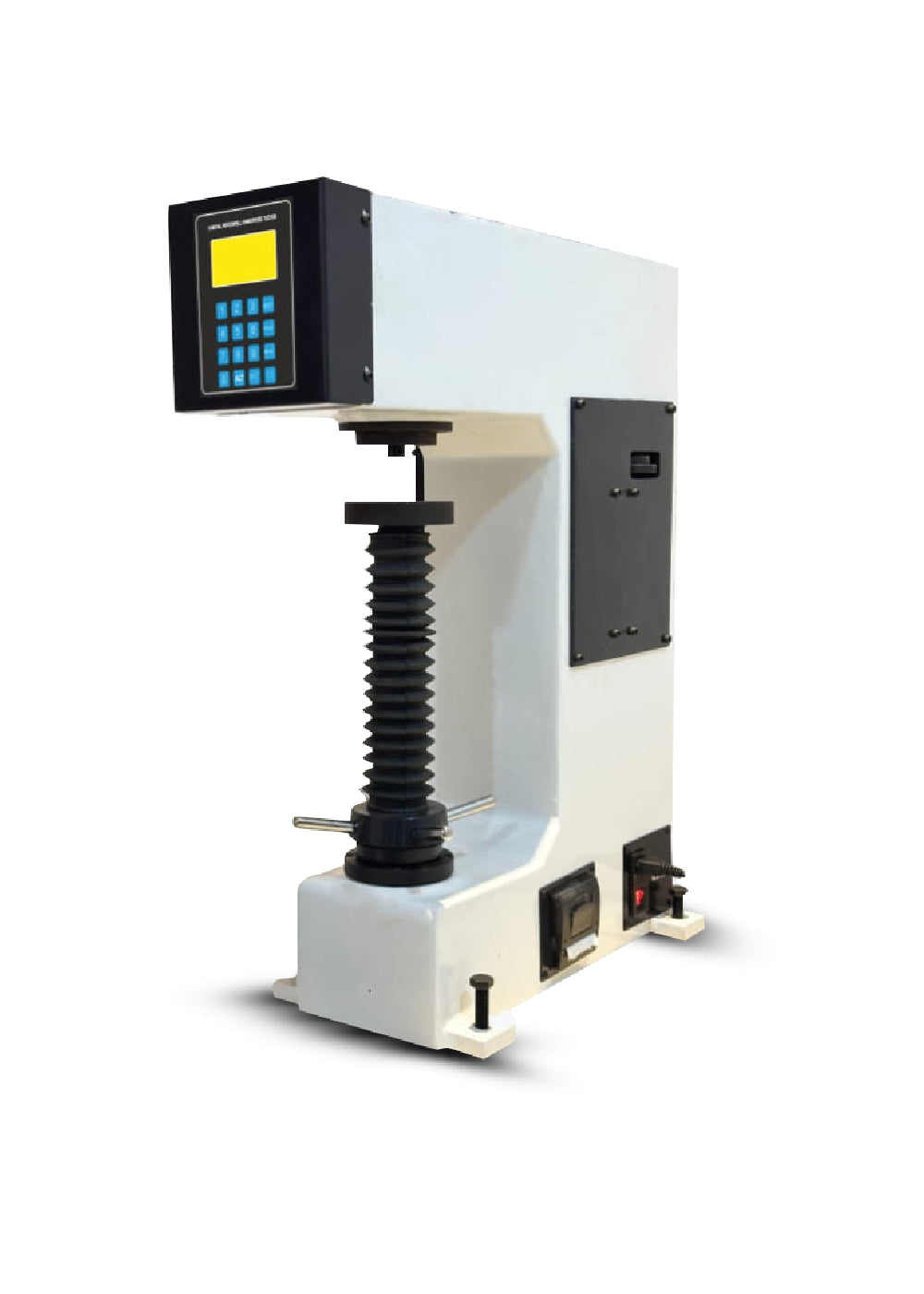

| ETS Digital Hardness Tester : | ||
|---|---|---|
| Model | ASI-AMT-5AD / 5AE / 5AB | ASI-AMT-5AD/TS / 5AE/TS / 5AB/TS |
| Type | Digital Rockwell & Rockwell Superficial | Digital Rockwell & Rockwell Superficial |
| Operation Cycle | Automatic - Load/Dwell/Unload Manual load & scale selections. | Automatic - Load/Dwell/Unload Manual load & scale selections. |
| Test Force Selection | By Knob | By Knob |
| Set Position | With LCD bar indicator | With LCD bar indicator |
| Data Entry | Through Tactile Key for scale, limits & dwell time. | Through Capacitive Touchscreen for scale, limits & dwell time. |
| Resolution | 0.1 Rockwell 0.1 Rockwell Superficial | 0.1 Rockwell or 0.1 Rockwell Superficial |
| Output | Built-in Thermal Printer + Software | Built-in Thermal Printer + Software |
