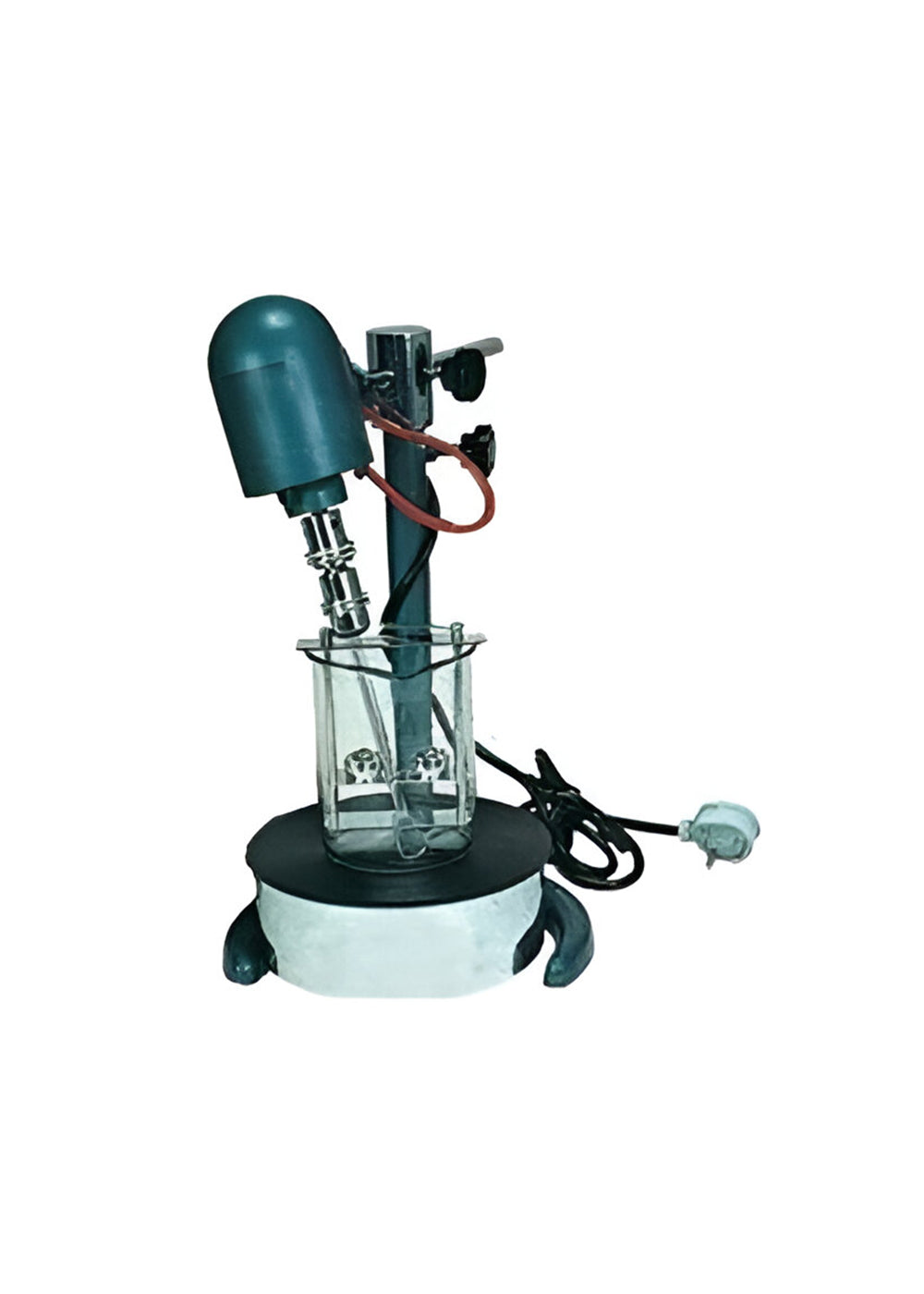

Ring And Ball Apparatus (Electrical) - ASI-102

This apparatus is used to determine the softening point of bitumen. Ring and Ball apparatus is used to determine the softening point. It is the temperature at which a sample of bituminous material, loaded by a 9.5 mm diameter steel ball, drops to a distance of 25 mm.

Supplied with a thermostatic hot plate. Suitable for operation on 230V A.C.

Specifications: 0 0 0 0 0 0 Thermometer IP62c range-2 C to 80 C x 0.2 C, Thermometer IP 61c range 30 C to 300 C x 0.5 C, Electrical Stirrer with stand and blades to gently stir water in the beaker. Suitable for operation on 230 V A.C.
