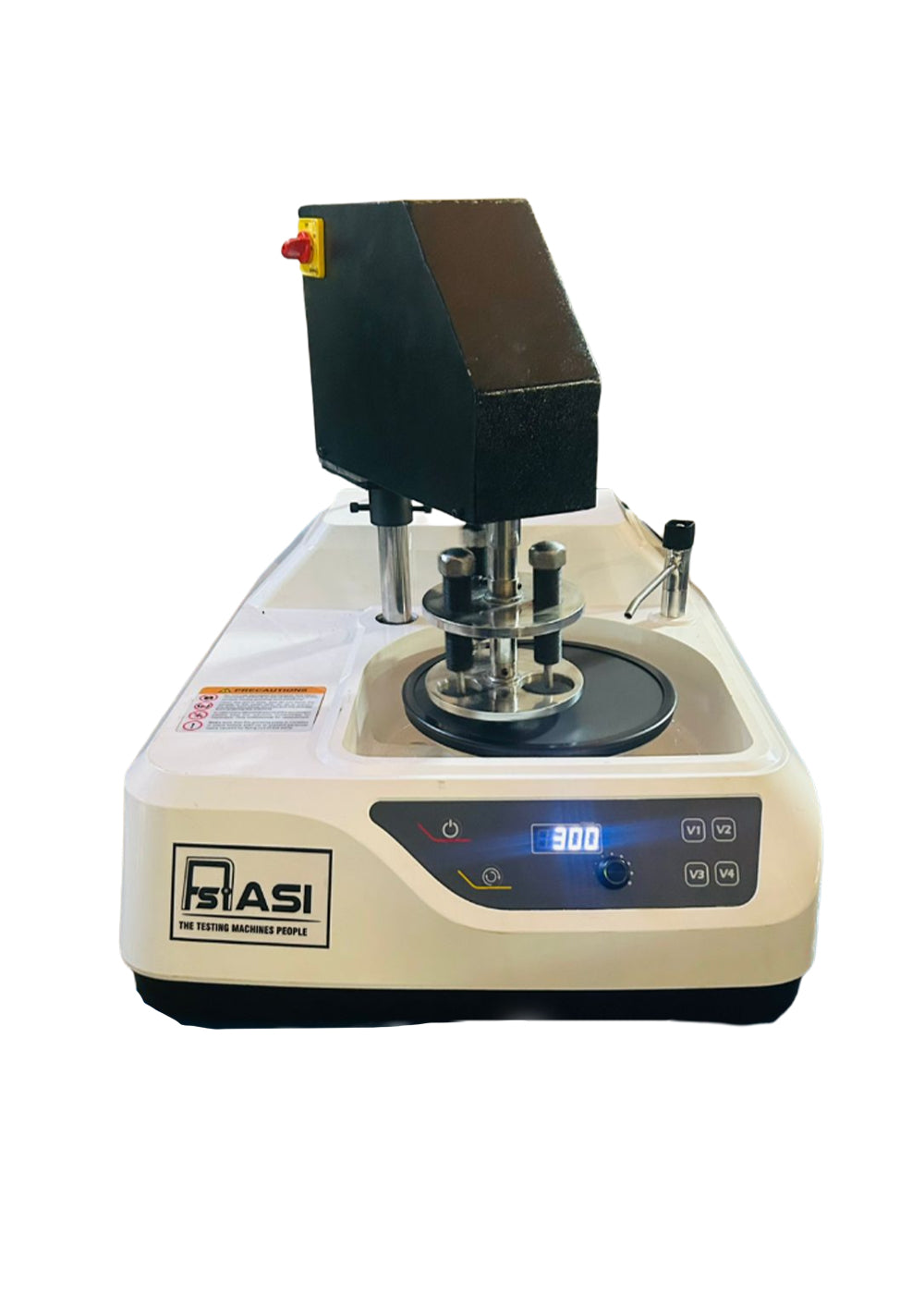

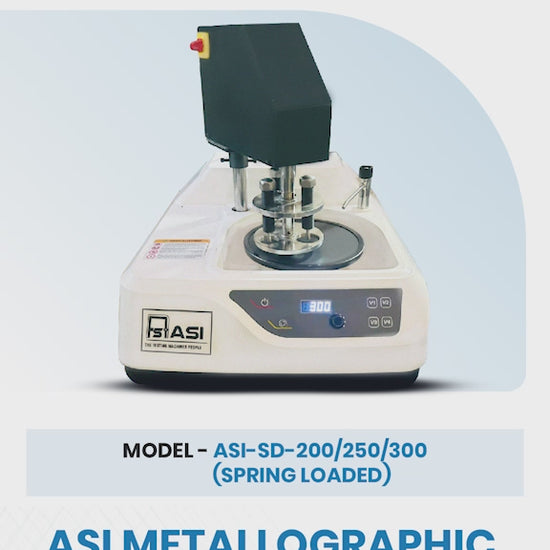

ASI Metallographic Grinding/Polishing Machine,

ASI Metallographic Grinding/Polishing Machine,

Applications
This grinder-polisher is single-plate. It is suitable for pregrinding, grinding and polishing
metallographic specimens. Since the machine is speed-adjusted by microprocessor, it can
run at a revolution of  0 to 600rpm/1000rpm/1400rpm,which favors the machine with wide
applications. The machine is equipped with cooling system that can cool down the
specimen during pre-grinding so as to prevent overheating and damage the metallographic
structure. Featuring easy operation and reliable performance, it is an indispensable device
for the factories, research institutions, and college labs to prepare metallographic specimens.

Read more

View full details
Technical Parameters
Technical Parameters
Model ASI-SD-200 ASI-SD-250 ASI-SD-300
Wheel diameter Φ203 mm Φ250 mm Φ300 mm
Rotational speed 0–1400 r/min 0–1000 r/min 0–600 r/min
Constant speed 150 r/min, 300 r/min, 600 r/min, 1000 r/min 150 r/min, 300 r/min, 450 r/min, 600 r/min
Emergency stop YES
Rotational direction Clockwise or anticlockwise
Input voltage AC220V 50Hz
Wheel quantity 1PC
Input power 0.75KW
Dimension 594mm × 795mm × 310mm
Net weight 40kg
