Technical Specifications

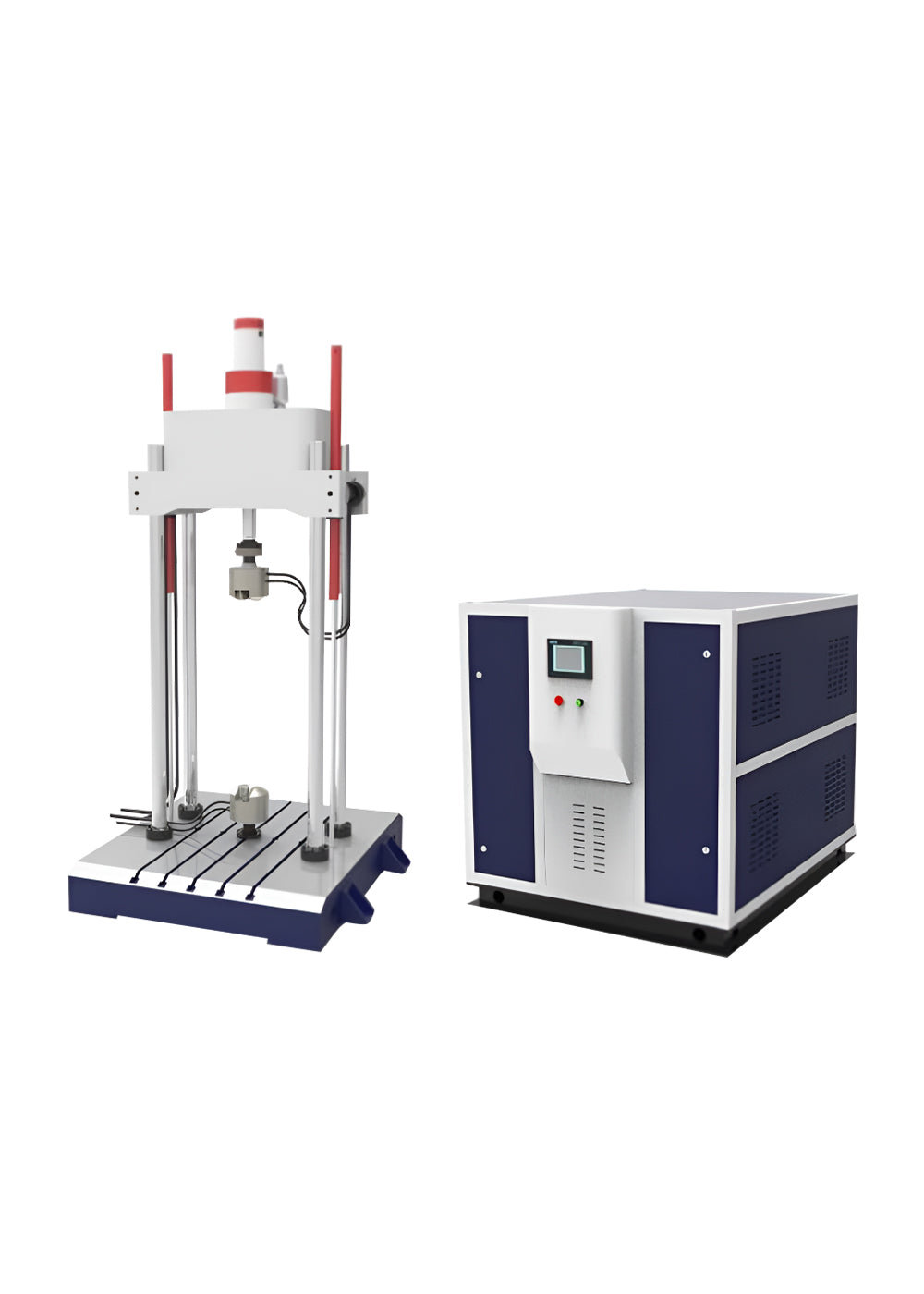

| Model | AMT-FTM |
|---|---|
| Maximum test force (kN) | ±300 |
| Load frame | Four-column |
| Effective width of columns (mm) | 820 × 500 (other larger sizes available on request) |
| Test space (mm) | 1000 (other larger sizes available on request) |
| Table dimensions | 1200 × 1200 (other larger sizes available on request) |
| Test force measurement range | Dynamic: 2%–100% FS |
| Amplitude range | 0–10 mm |
| Force accuracy and fluctuation | Better than 1% of the indicated value; amplitude fluctuation not exceeding ±1% FS for each range |
| Test force resolution | 1/250,000 code |
| Test force indication accuracy | Dynamic: ±1%; Static: 0.5% |
| Displacement measurement range | 200 mm (±100 mm) |
| Displacement measurement resolution | 0.001 mm |
| Displacement indication accuracy | Indicated accuracy: from 1%, within ±0.5% of full scale |
| Deformation | Indicated accuracy: from 2%, within ±0.5% |
| Frequency range | Standard unit: 0.01–30 Hz |
| Main waveforms | (Other frequencies available on request) |
| Maximum height of the main unit | Sine wave, pulse wave, square wave, sawtooth wave, random wave (primarily supported by the controller) |
| Servo variable pump station |
Flow rate ≥ 80 L/min, Pressure ≥ 21 MPa, Motor power ≥ 22 kW |
| Accessories | Forced-feed clamping unit, fitted with bar-tensioning jaws, capable of clamping round specimens with a maximum diameter of ≥ φ40 mm |
