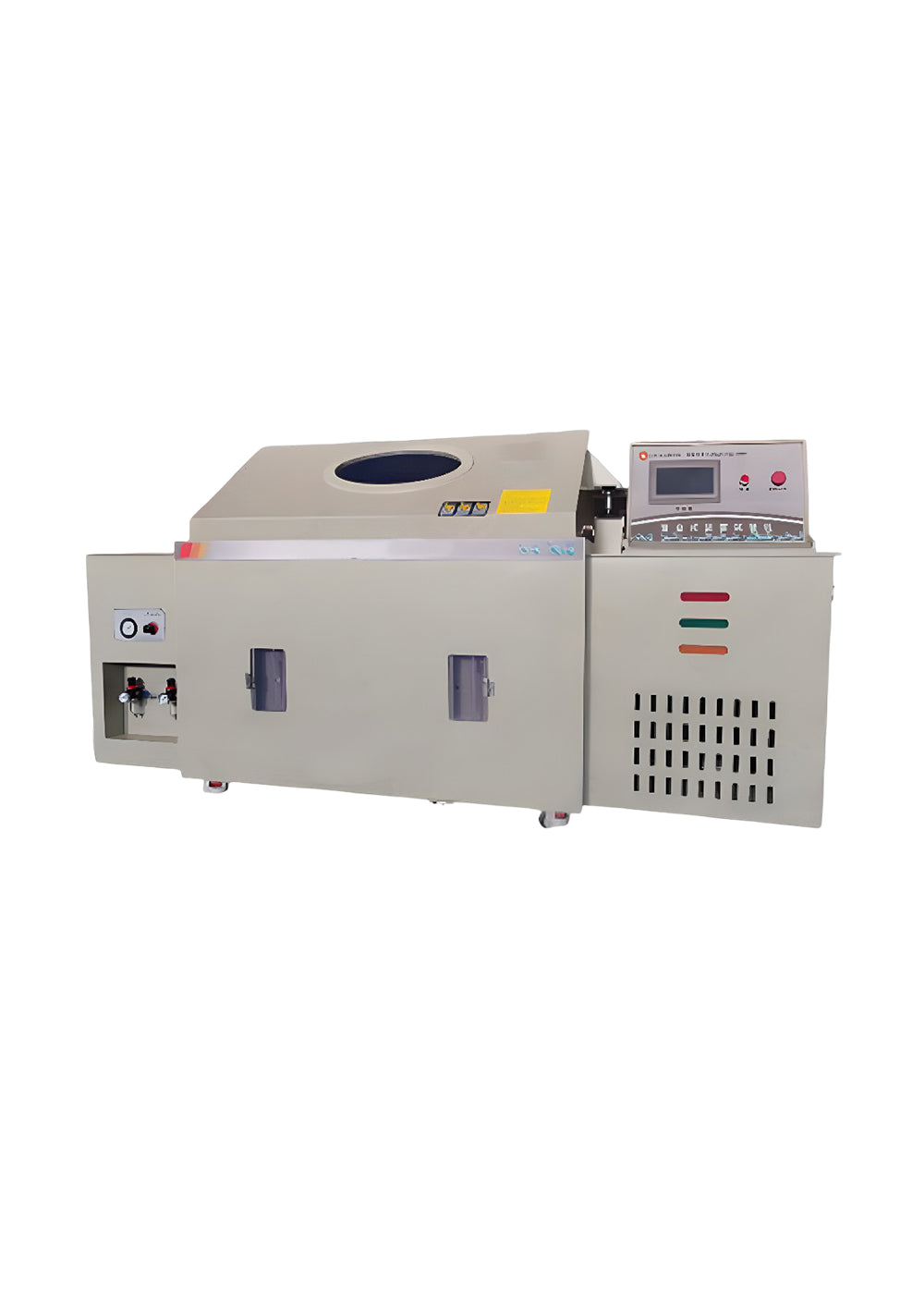

ASI Salt Spray Chamber, ASI-STC360

ASI Salt Spray Chamber, ASI-STC360

Specifications:
The ASI-STC360 Series Composite Salt Spray Test Chamber (also known as Composite
Salt Spray Corrosion Tester) is a high-end environmental simulation equipment specially
developed for verifying the corrosion resistance of materials and products in complex
environments. Different from traditional single salt spray chambers, the ASI-STC360 series
innovatively integrates four core functions: “salt spray corrosion + damp-heat cycle + hot air
drying + standard climate simulation”. It can program and combine multiple environmental
working conditions in any order, accurately reproduce the drastically changing scenarios
such as “salt spray – humidity – drying – low temperature” in the natural environment, and
accelerate the assessment of the durability and reliability of products in complex corrosive
environments.

Read more
View Catalogue Get Latest Price

View full details
ASI-STC360 Standards
Standards
Model ASI-STC360
Workroom dimensions 1200 × 800 × 500
External dimensions 2460 × 1300 × 1350
Workroom capacity 480 L
Salt water tank volume 30 L
Pure water tank volume 35 L
Working power Three Phases AC380V/50HZ (60Hz is Option)
12.5KW
Testing sample space 1000 × 600 × 300
Opening Method Stainless steel air spring support
The temperature range of the salt spray chamber 15°C ~ 65°C
The temperature range of saturated barrel RT (room temperature) ~ 70°C
Relative humidity of the salt spray chamber 30% ~ 98%RH (± 3%, adjustable, refer to the temperature and humidity corresponding chart)
Temperature accuracy Temperature uniformity: ≤ 2°C;
Temperature volatility: ≤ ± 1°C
Salt spray deposition rate 1 ~ 2 ml/80cm²/h
Test methods Programmable spray, moist heat, dry,
standard climate
Test conditions

A. Saline spray test: NSS test: 35°C ± 2°C;
Saturated air barrel: 47°C ± 2°C

B. Humidity and heat test:

  1. Test temperature range: 20°C ~ 60°C.
  2. Test humidity range: 60% ~ 98%RH can be adjusted.

C. Dry test:

  1. Test temperature range: 20°C ~ 60°C.
  2. Test humidity range: 30% ~ 60%RH can be adjusted.
Standard accessories 1 set of V-type/O-type storage racks,
1 glass nozzle, 2 bottles of sodium sodium (500g/bottle), 1 plastic rust barrel (5L)
Air compressor Requirements Prepared by the customer (or buy LISUN LS-EU800W2-55-LS-US800W2-55L air compressor): air inlet pressure 0.4M or above, two-stage pressure regulation, spray pressure 0.07 ~ 0.17Mp (adjustable)
Working environment requirements The ambient temperature is 5°C ~ 30°C.
Ventilation is recommended. When the temperature exceeds 30°C, it is recommended to adjust the room temperature through appropriate methods. The ambient humidity is below 80%Rh.
