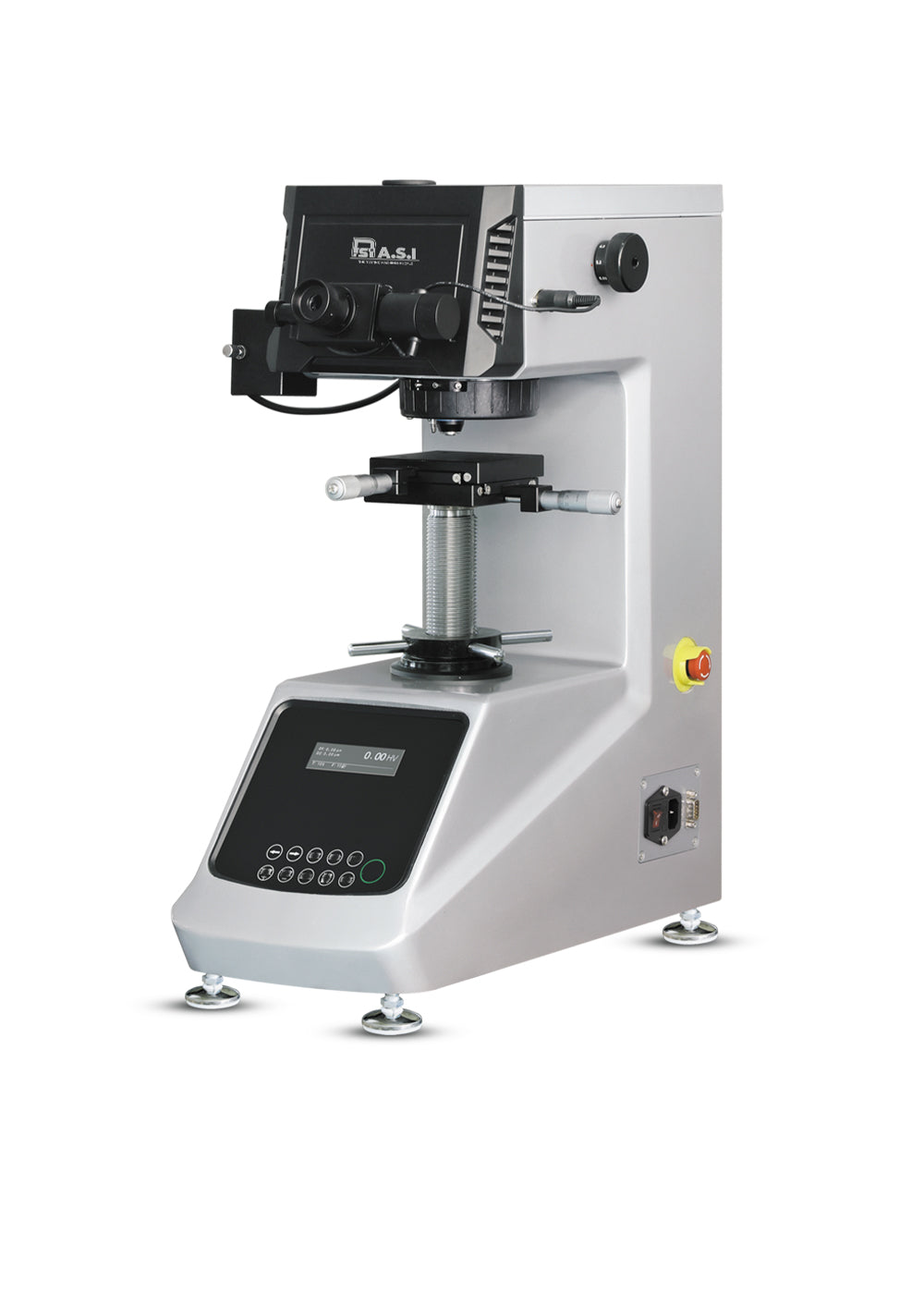

Specification
| Vickers scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Test force |
0.098, 0.2452, 0.4903, 0.9807, 1.961, 2.942, 4.904, 9.807 (N) 10, 25, 50, 100, 200, 300, 500, 1000 (gf) |
| Test force selection | The test force is selected by turning the test force conversion hand wheel, and the current test force is displayed on the screen |
| Turret | Automatic turret |
| Hardness value reading | Digital direct reading |
| Loading Control | Automatic (load/hold/unload) |
| Dwell time | 0~60 seconds adjustable (1 second increments) |
| Test Mode | HV/HK |
| Hardness range | Hardness range |
| Maximum specimen height | 110 mm, distance from indentation center to machine wall 110 mm |
| Optical measurement system |
Objective lens: 10× (observation), 40× (measurement) Total magnification: 100× (observation), 400× (measurement) Graduation value: 0.03 μm |
| Measuring range | 0~200 μm |
| XY coordinate test table |
Size: 100×100 (mm), stroke: 25×25 (mm), graduation value: 0.01 mm |
| Light source | 12V/20W, light source brightness adjustable |
| Energy saving mode | Can set time to automatically enter standby mode |
| Power supply | 220V 50Hz, power consumption: 100W |
| Overall size | 525×330×620 (mm), weight: 36KG |
| Vickers Hardness Measurement Software (CCD image processing system) | Optional |
