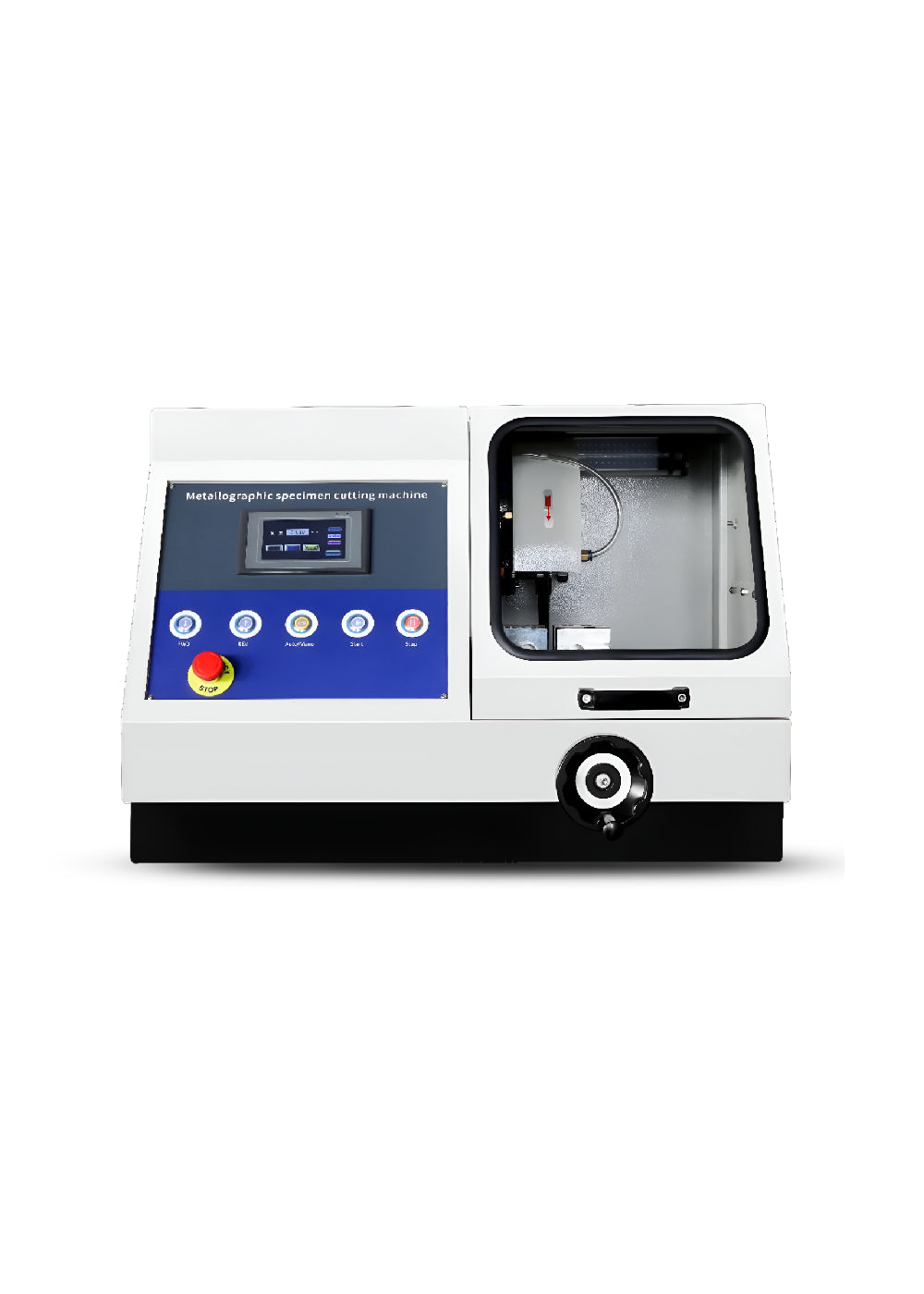

Precision Metallographic Sample Cutting Machine - ASI-eCM-350AT

Product Features:

ASI-eCM-350AT high precision Cutting Machine with automatic work mode and manual work mode;
This machine is composed of body, electric control box, cutting room, motor, cooling system, cutting wheel and other components;
Can not only cut circular workpieces with a diameter of less than 100mm, but also can cut rectangular samples with a height of 100mm and a depth of less than 200mm;
The cooling system to prevent the sample from overheating and burning the tissue during the cutting process;
The machine adopts closed structure, large observation window, use safe
Quick clamping mechanism, easy to clamp sample
Main components adopts stainless material, long service life
Emergency stop button, ensure more safe operation.
The shell of the machine is sprayed with plastic treatment, making the machine more beautiful in appearance and has a good anti-corrosion

Model	ASI-eCM-350AT
Cutting wheel	φ350×2.5mm×φ32 (Diamond cutting wheel)
Maximum cutting diameter	Φ100mm
The maximum movement of the table in Y axis	275mm
Spindle Speed	2300r/min
Cutting speed	0.01 - 1mm/s
Cutting table size	310×280mm (move follow Y Axis, Optional: X axis for cutting pieces)
Fixture	Fast clamp fixture
Feeding mode	Automatic mode: Cutting wheel move automatically in Y axis (forward - backward), automatic return to original position after cutting work done. Manual mode: Rotate handwheel move work table forward - backward in Y axis
Automatic cutting method	Intermittent cutting (metal workpiece) and continuous cutting (non-metal workpiece)
Reset mode	Automatic reset
Cooling system	Automatic water cooling with 3 channel
Water tank	60L
Feed depth tracking	LCD digital display
Cutting chamber housing	Steel plate
Cutting room light	Low voltage dc LED lighting
Motor Power	3kW
Voltage	380V, 50Hz, Three-phase four-wire (optional 220V)
Machine Dimension / weight	900×790×600mm; 210kg
Packing size / Weight	Cutter: 110×94×80cm, 242kg; Water tank: 54×46×46cm, 27kg
