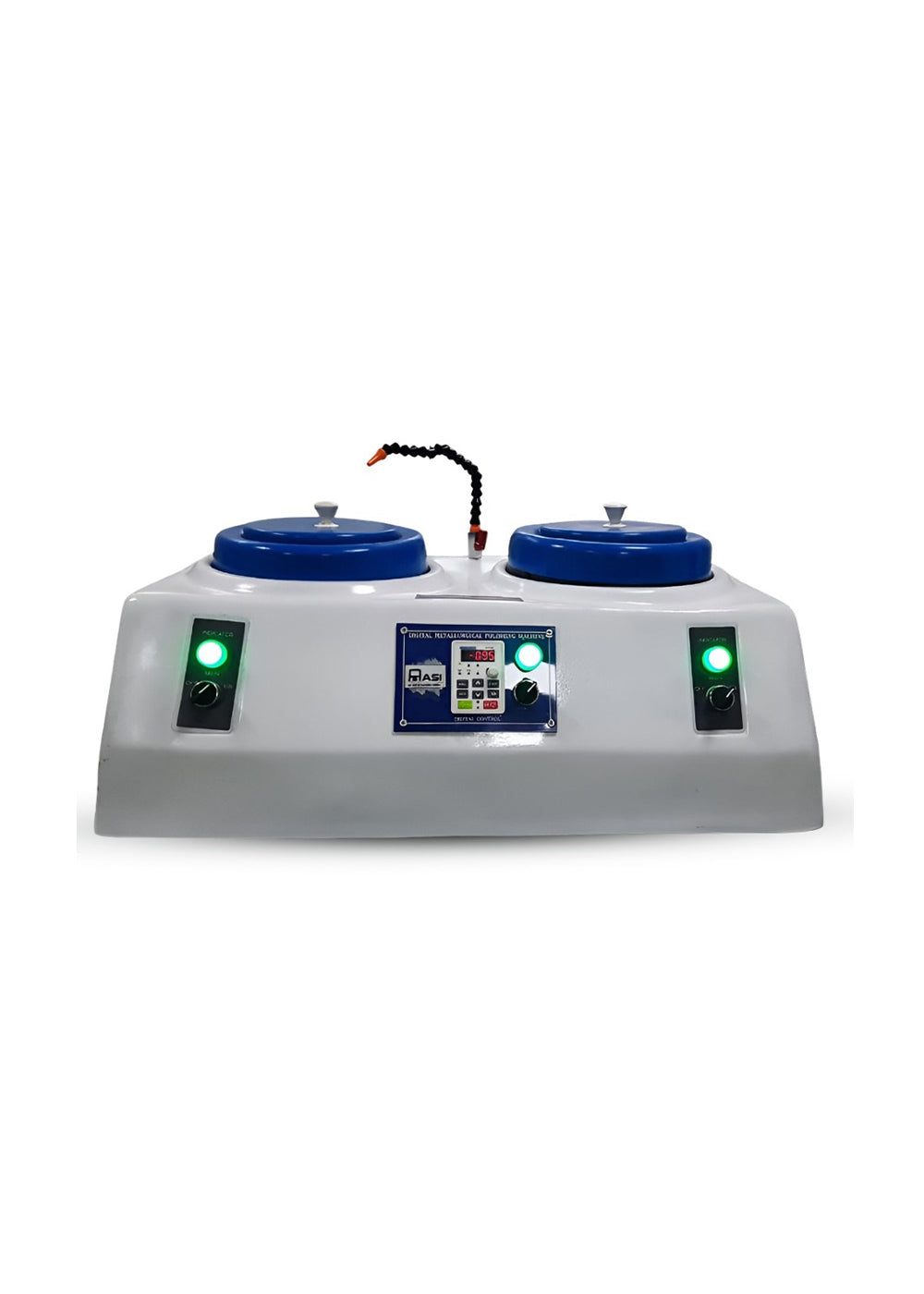

ASI Polishing Machine Double Disc Variable Speed ASI-PMDD-V

Metallography specimen polishing machine is suitable for the polishing of the specimen which has been grinded. The specimen surface is very smooth after processing and can be used to observe and measure the metallography structure of specimen under microscope.

Specifications:

Two 200 MM Aluminum discs over which polishing paper or cloth can be stretched

Separate Motors for individual disc of ½ HP

Variable speed from 50-1500 RPM

Variac Variable Transformer for smooth speed change

Single Phase High torque AC Motor

Water inlet/outlet for wet polishing.

Flexible water jet with control valve

The operation of the machine with 220 V AC

Complete Powder Coated Body for Corrosion resistant

Paper & Polishing Cloth holding Ring

Front control panel with ON-OFF Switch & for change the speed

Machine Dimension (LXWXH) : 870X 460 X 570 MM )

Weight:  70 Kg Approx
