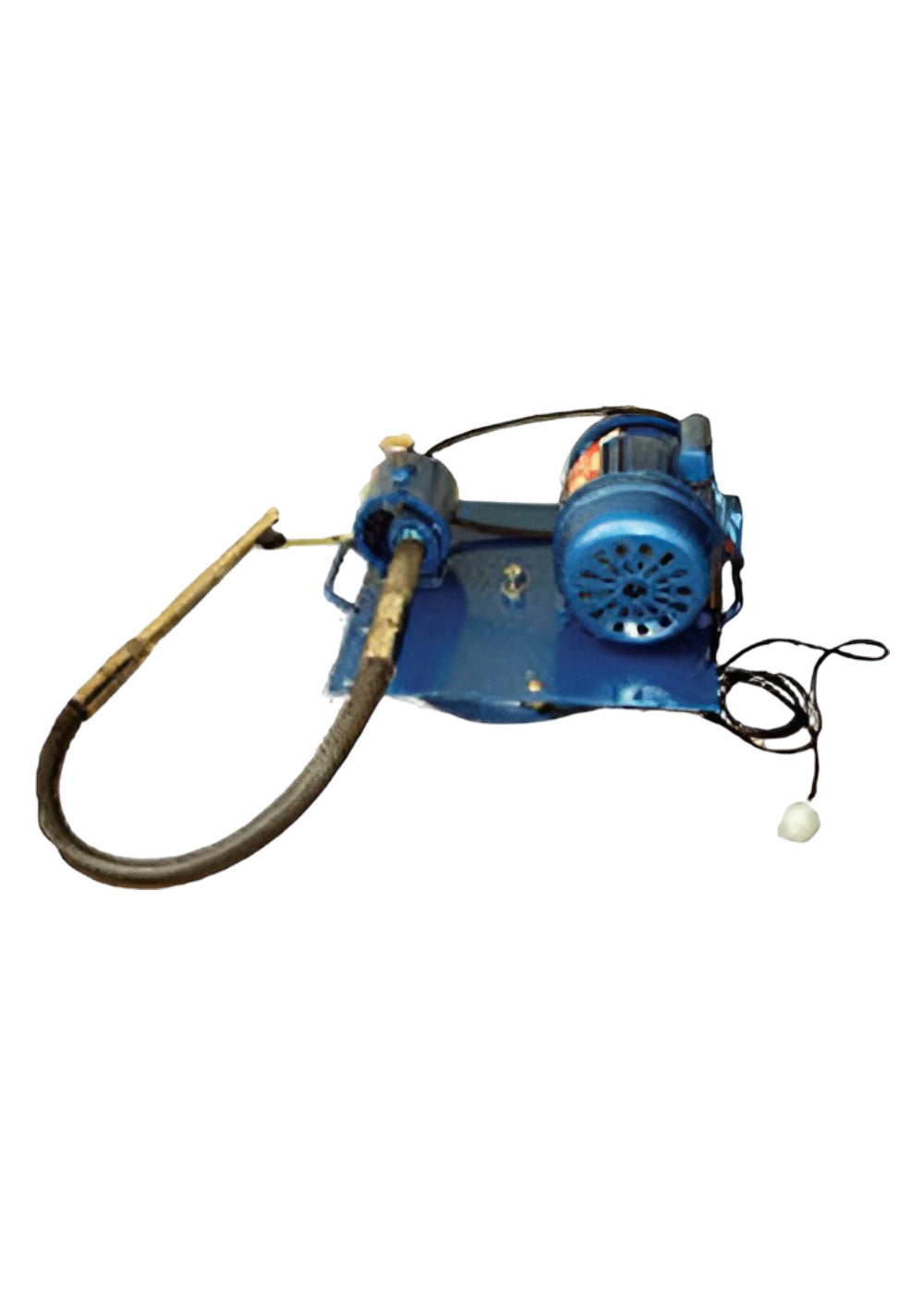

Needle Vibrator - ASI-233

An increasing number of contractual obligations call for various forms of vibrocompacted concrete fro achieving a better and more consistent mixute. The Needle Vibrator is recommended for vibrocompaction test cylinders and beams at site and in the Laboratory. This instrument can also be used at small construction sites. A motor fitted on a swivel base drives a flexible shaft, which in turn, vibrates the needle at about 10,000 vibrations perminute. (approx.)

Specifications: Needle Vibrator with a 25mm. diameter x 350mm, long needle, a one meter long flexible shaft and a motor drive with a swivel head and on/off switch. Wired for 230V. Sph. 50Hz.
