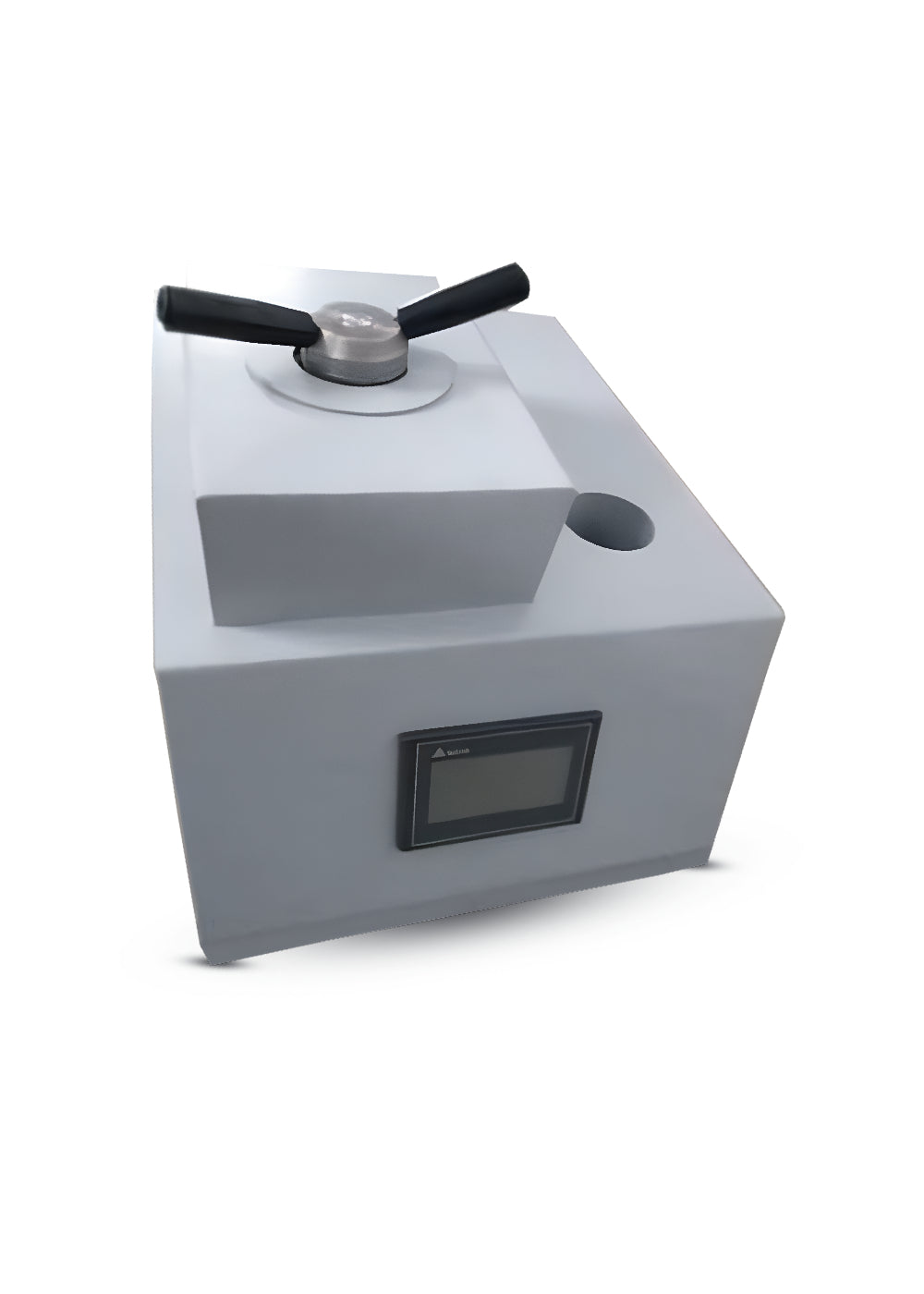

Mounting Press Automatic With Plc Based Control Panel - ASI-SMP

Name: Mounting Press Automatic With Plc Based Control Panel - ASI-SMP
Brand: asisales
SKU: ASI-SMP
Availability: InStock

Mounting Press Description:

The mounting press is equipped with a digit temperature controller to establish real-time temperature. Meanwhile, a timer is equipped to realize the automatic sample making, which obviously increases working efficiency. For each specimen-mounting, 3-4 minutes is enough, and a mirror-like specimen can be acquired. The press also features a high-speed mould heater with built-in water cooling coils. The mould is interchangeable and suitable for high-volume applications, relieving operator fatigue.

View Catalogue Get Latest Price

View full details

Technical Specification

Specification	Details
Technical Specification:
4.3" TFT LCD Display	480X272 Pixels
Touch Screen HMI & PLC Based Control Panel	Available
DTC Delta Temperature Controller Module	Available
Heater Capacity	1500 watt
Automatic Water-cooling systems	Available
Heating & Cooling Time	Adjustable
Temp Range	50-400 degree Adjustable
Pressure	50-100 PSI Adjustable
Mould Size	1.25"/1.5 Inch mm
Aluminum Casting Heater with Water Cooling Provision	Available
Alarm System after Complete the Cycle	Available
Pneumatic Operation System	Compressed air required
Quick ram return to speed up reloading	Available
Dovetail slot for easy changeability of Mould assemblies	Available
Digital temperature indicator and digital timer with LCD display	Available
31.75 Or 38 mm dia comes with the machine as standard	Available
Quick heater for speedy operation	Available
Pressure gauge	FRC
Power Supply	230 C/50 Hz
Machine Size	550X600X580
