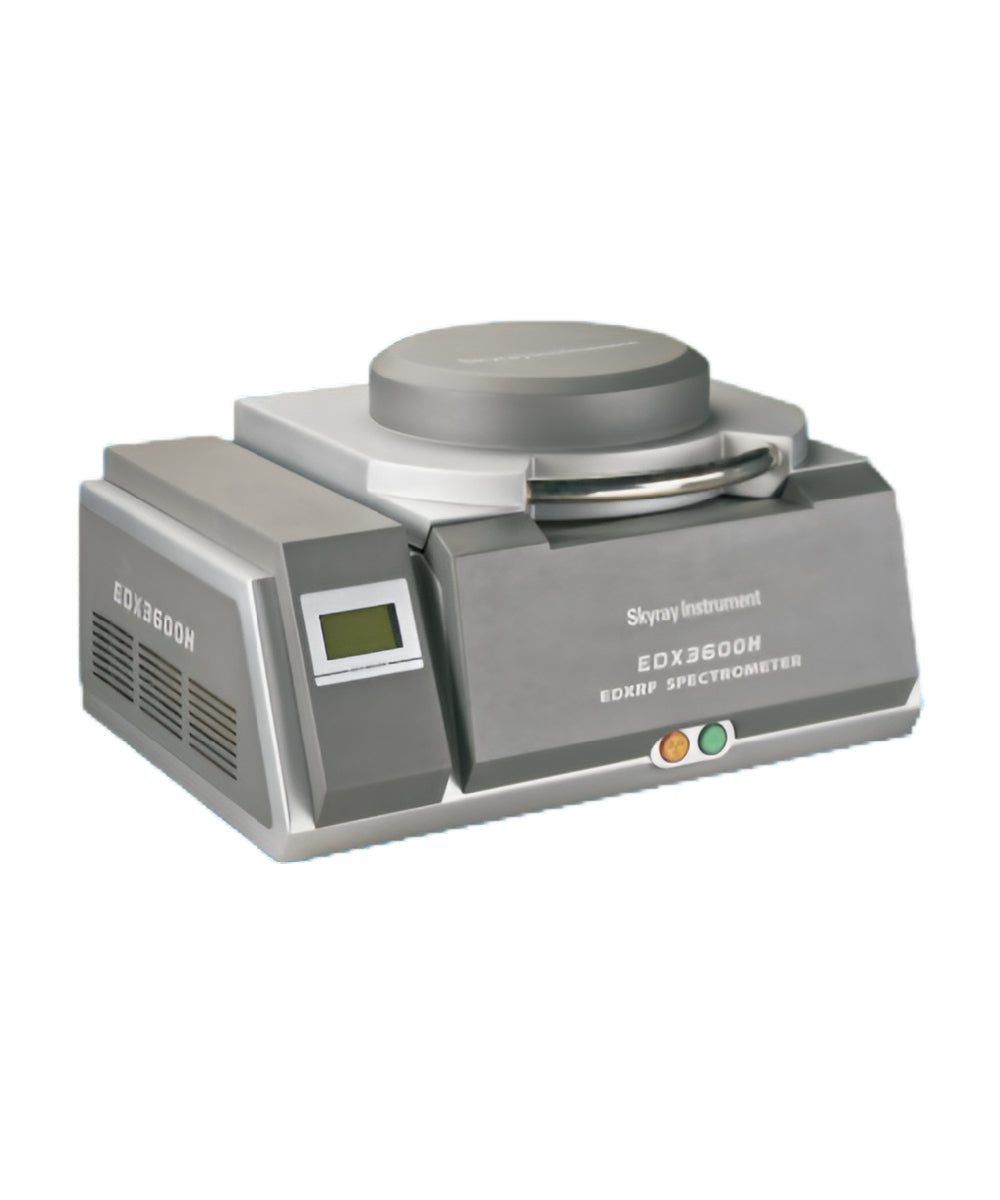

Mining Analyzer–EDX 3600H

Skyray Instrument is a professional manufacturer of high-performance X-ray Fluorescence Spectrometer. The high-performance desktop XRF geology and mining analyzer–EDX 3600H, brought up in 2011, is equipped with globally advanced analysis technology, intelligent vacuum system and developed electronic technology. Combined with low-energy tube, vacuum system and Skyray patent low background technology, it efficiently reduces testing interference, and improves energy resolution of Mg, Al, Si, P and other light elements in geology and minerals.

Specialized in Mineral Elements and Grade Testing

1. EDX3600H Mining Analyzer is specially designed for geology and mining industries
2. This instrument features high precision, fast testing speed and easy operation etc
3. Bear several testing modes, including alloy analysis, soil analysis, precious analysis, RoHS analysis
4. Testing samples includes minerals, slag, rocks, etc. Analytical content is from Na to U. Testing samples can be solids, liquids, and powders

Performance Advantages

1. Highly efficient super-thin window x-ray light tube, which is specially developed for mineral testing, reaches the international advanced level
2. Silicon Drift Detector (SDD), provides better energy linearity, resolution, spectrum characteristics and higher peak/base ratio
3. Skyray’s patent—Signal-to-Noise Enhancer (SNE), improves the signal processing ability by 25 times or more
4. Built-in CMOS HD camera
5. Automatic switch of collimator and filter according to different samples, it eliminates the troublesome manual operation
6. Triple x-ray protection design
7. (1) Mechanical protection: segregate x-ray
8. (2) Electronical protection: Automatic shut-down of x-ray when opening the cover during testing
9. (3) Software protection: Automatic shut-down of software program when opening the cover during testing
10. LCD screen directly shows the important parameters: tube voltage, tube current and vacuum degree
11. 2L vacuum pump
