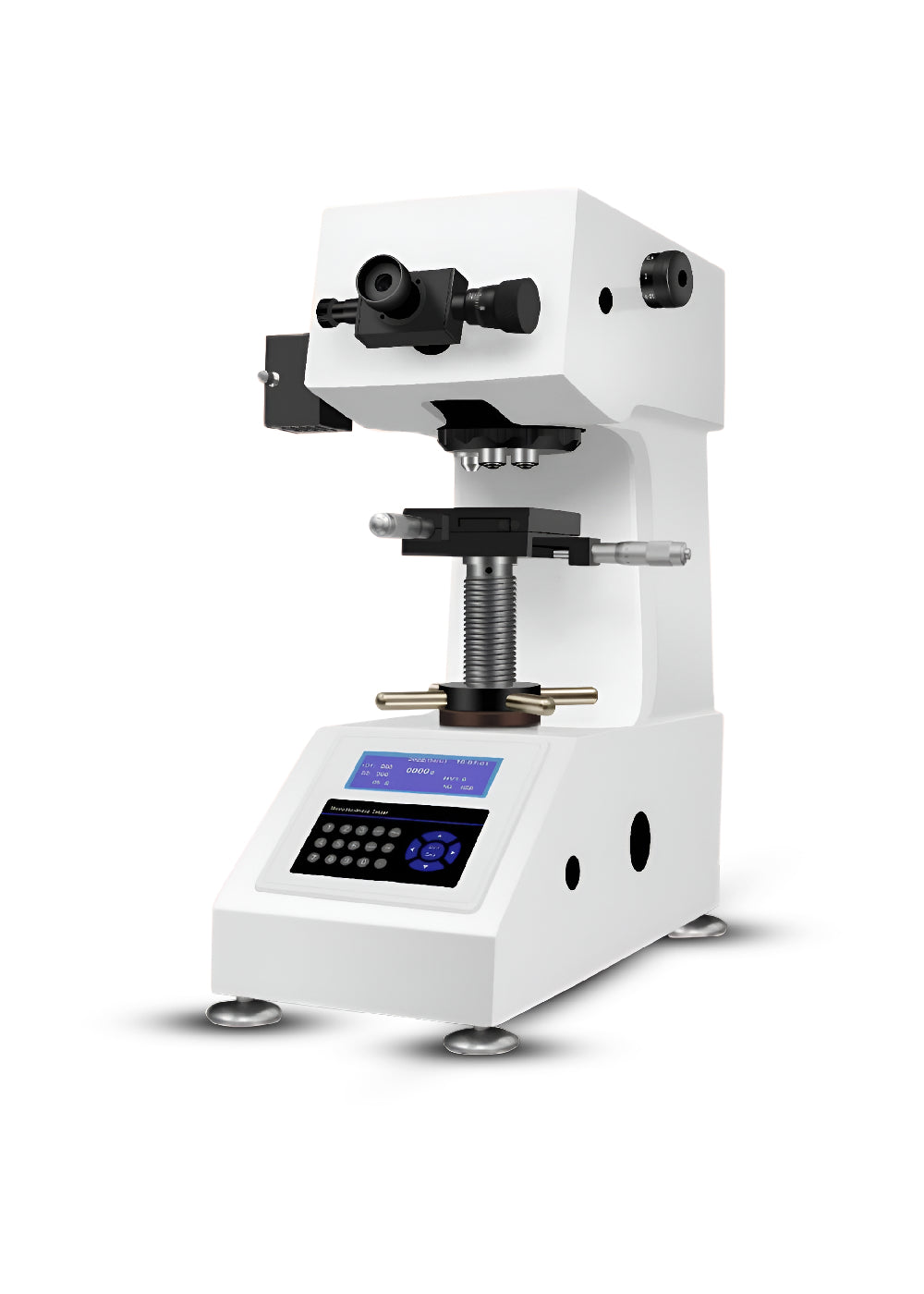

Micro Vickers Hardness Tester - ASI-HV-1000 / ASI-HV-1000Z

Manual turret or Automatic turret Micro Vickers hardness tester; Manual eyepiece and traditional keypad screen; With photography port for work with camera and software; 10g-1000g force; Screw rod or worm rod

Main Features:

One-time cast iron machine body with automotive-grade painting technology, providing a more stable structure and a more refined appearance.
10X eyepiece for easy data reading.
LCD digital display shows hardness values, dwell time, and other key information directly.
User-friendly menu interface for easy operation.
Supports HV/HK test functions (HK test requires optional Knoop diamond indenter and standard Knoop hardness blocks).
Dual optical path design with a reserved camera port—supports optional camera installation for integration with hardness testing analysis and measurement software (camera and software system sold separately).

View full details

Technical Specifications

Technical Specifications:
Model	ASI-HV-1000	ASI-HV-1000Z
Turret	Manual turret	Automatic turret
Test force	10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf (4.9N), 1kgf (9.8N)
Hardness scale	HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Conversion Scale	HRA, HRB, HRC, HRD, HRF, HR, HV, HK, HBW, HBS, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness range	5–3000HV
Min. measuring unit	0.25μm
Data display	LCD screen
Sample Height	Maximum sample height: 120mm, Throat depth: 110mm
X-Y Testing table	Dimension: 100x100mm, Max movement: 25x25mm
Force loading type	Automatic (Loading, Dwell, Unloading)
Magnification	Eyepiece: 10X Objective: 10X (observation); 40X (measuring) Total: 100X (observation); 400X (measuring)
Duration time	1~60s
Power supply	AC220V ±5%, 50–60Hz
Machine size	405×290×480mm; Net weight: 40kg
Package size	530×350×820mm; Gross weight: 59kg
Standard	ISO6507, ASTME384, JISZ2244, GB/T4340.2
