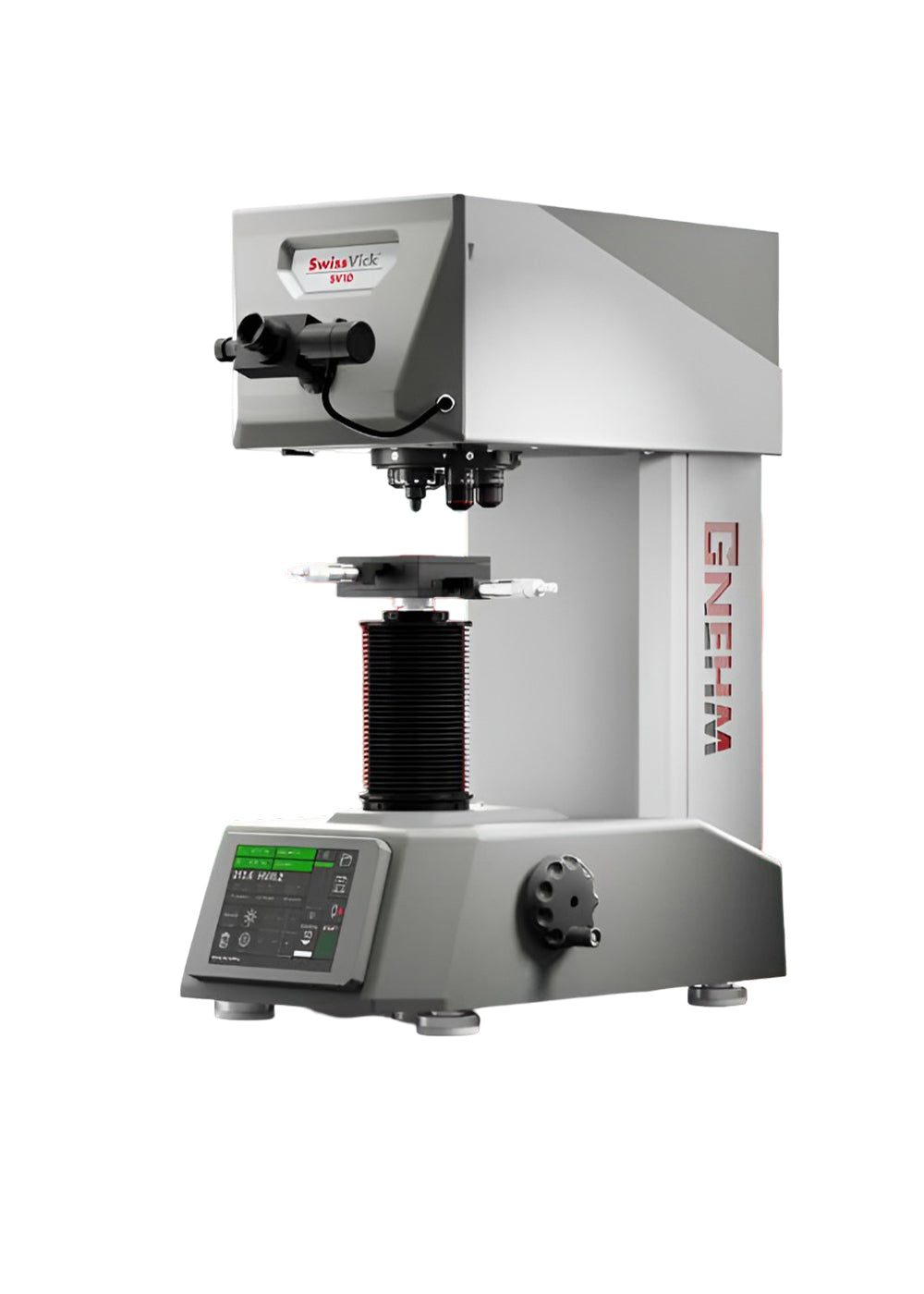

MICRO (MACRO) VICKERS HARDNESS TESTER, SV-10

Name: MICRO (MACRO) VICKERS HARDNESS TESTER, SV-10
Brand: Asisales
SKU: SV-10
Availability: InStock

KEY FEATURES

The system features a 6-position collision-protected turret, accommodating a maximum of 2 indenter positions and 4 long working distance (LWD) objective positions.

It offers the choice between an analog or electronic digital eyepiece, allowing simultaneous viewing through both the eyepiece and the camera.

The interface is a full-color 6.5” industrial touchscreen equipped with software for intuitive operation.

The system is powered by a robust embedded electronic system, and it can be optionally equipped with an integrated 5-megapixel Full HD camera system supporting the

View Catalogue Get Latest Price

View full details

Tester model	SV10 A (2)	SV10 B (2)	SV10 C (2)	SV10 D (2)
Load system
Test load range	5gf – 1kgf	5gf – 2kgf	5gf – 10kgf	5gf – 62.5kgf
Load steps	10	11	16	25
Loads in gf	10, 15, 20, 25, 50, 100, 200, 300, 500, 1000	10, 15, 20, 25, 50, 100, 200, 300, 500, 1000, 2000	10, 15, 20, 25, 50, 100, 200, 300, 500, 1000, 2000, 2500, 3000, 4000, 5000, 10000	10, 15, 20, 25, 50, 100, 200, 300, 500, 1000, 2000, 2500, 3000, 3125, 4000, 5000, 6000, 6250, 12500, 25000, 50000, 60000, 62500
Optional loads within range	On request
Load application system	Electronic \| Load Cell \| Closed Loop		Electronic \| Multi Load Cell \| Closed Loop
Load operation sequence	Fully automatic – Approach \| Load \| Dwell \| Unload \| Objective
Load application speed	60μm/sec (Compliant standards: JIS B 7725, ISO 6507-2, ASTM E92: 15–70μm/sec)
Load dwell time	1–999 seconds
Parameters & Settings
Scales	HV / HK / HB compliant to ISO / ASTM / JIS
Optional scales	KIC (JIS R1607 / IF Method)
Conversion to other methods	4 simultaneous conversions compliant to ISO & ASTM
Cylindrical & spherical	Offset available
Turret & Optical System
Turret mechanics	6 position, Motorized, Manual & Automatic
Security	Anti-crash \| Collision detection system
Indenters vs Objectives (2)	(A model) 1 indenter, 4 objectives \| (A2 model) 2 indenters, 4 objectives Vickers (HV) \| Knoop \| Brinell 1mm / 2.5mm ball
Optical system	Simultaneous Dual Channel system \| Eyepiece – Camera
Objectives (6)	2.5X – 5X – 10X – 20X – 50X – 100X
Light source	High power long life LED \| Adjustable
Electronic eyepiece	15x magnification (Optional 10x magnification)
Optional camera system	5MPx \| High Definition \| Digital Camera System
Z-Axis & Stage
Z-Axis	Trapezoid spindle, hand-wheel driven, precision height adjustment
Maximum specimen height	120mm (from X-Y stage top)
Depth from center (throat)	170mm (from spindle middle)
Manual X-Y stage	100×100mm, precision polished, displacement 25×25mm \| Analogue micrometer heads included
