Lateral Extenso Meter - ASI-537

This is for determining the lateral extension of 15 cm dia. x 30cm high cement concrete cylinders while testing them under compression.

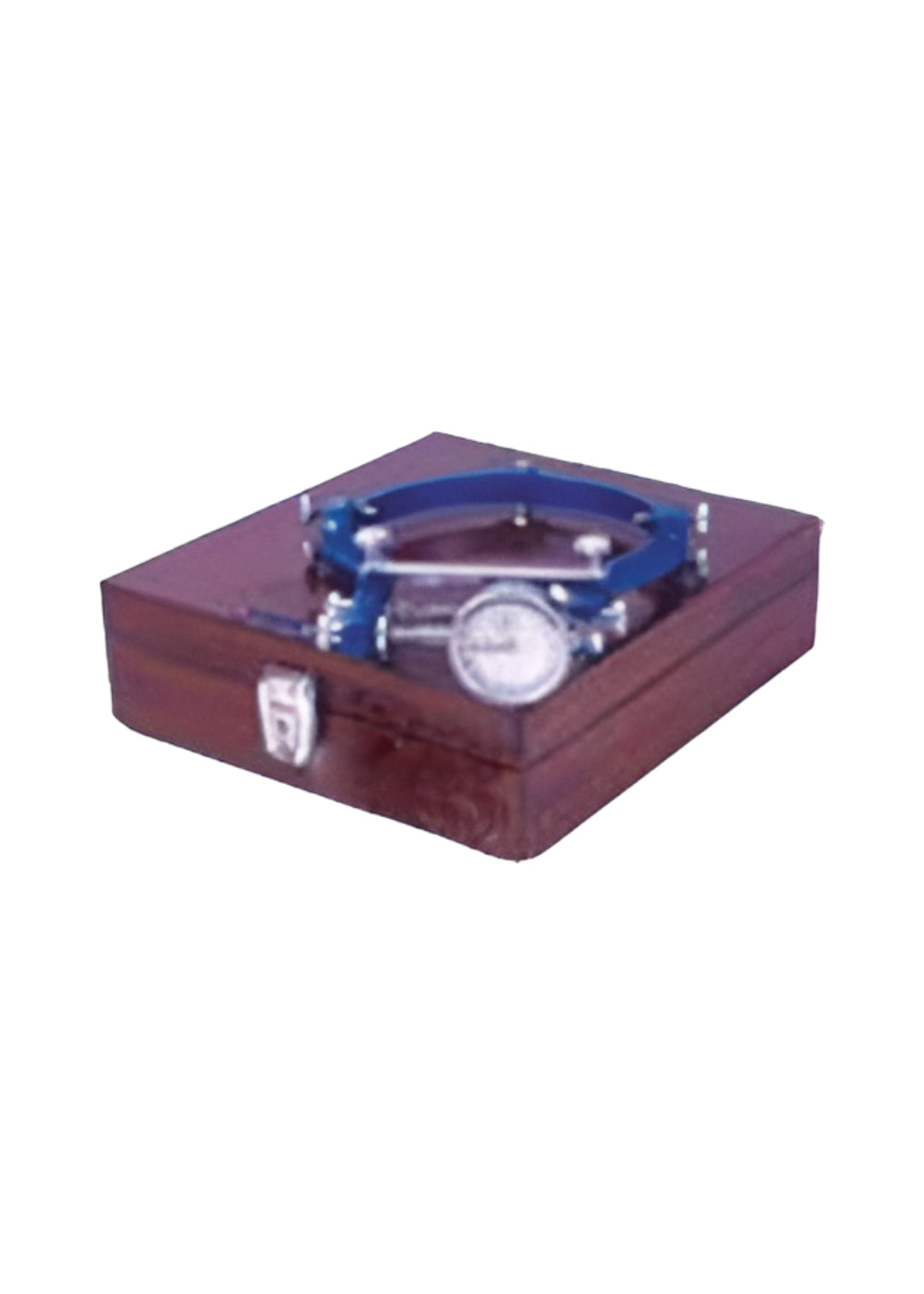

Specifications: The unit consists of two movable frames pivoted at one end. The extensometer is fixed to the specimen with the help of tightening screws. The lateral extension is indicated on a dial gauge of .002mm x 12mm travel. The extension is magnified 2.5 times and the dial gauge readings are to be divided by 2.5 to get the exact read-ings. A spacer strip is provided to initially set the dial gauge, and can be removed after initial setting. Supplied in a wooden carrying case.
