| C. Features |
|---|
|

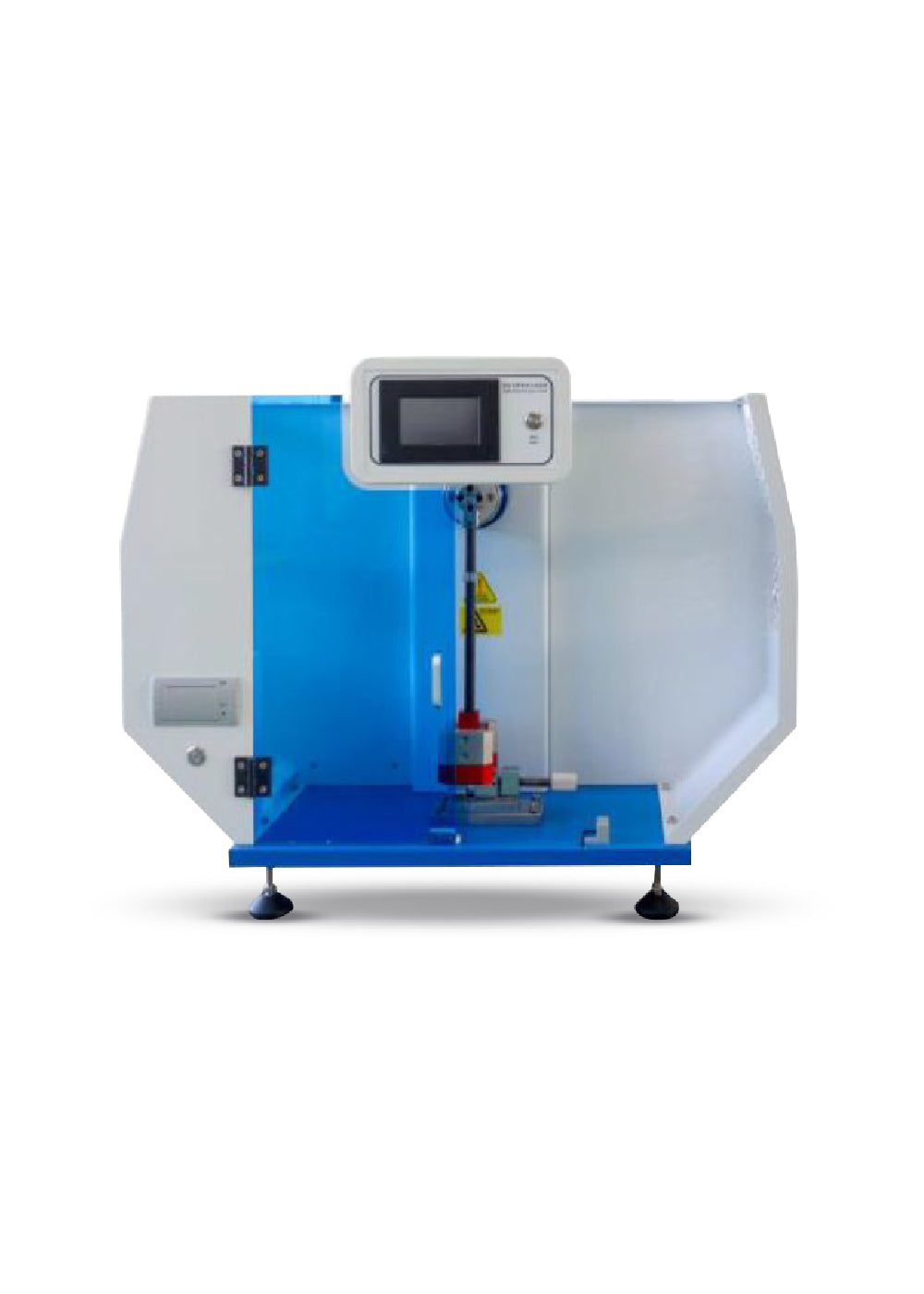

High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately. The use of carbon fiber pendulum rods improves the rigidity of the material in the impact direction and maximizes the impact mass on the center of mass of the pendulum, truly achieving a vibration-free impact test and extending the service life. Using imported high-resolution digital encoders, the angle measurement accuracy is higher and more stable. The aerodynamic impact hammer and imported ball bearings greatly reduce the friction loss caused by the machine. Automatically calculate the final result, the test data can save 24 sets of data and calculate the average. The IZOD impact testing machine can choose English operation interfaces, and the test results can be chosen in J/m, KJ/m³, kg-cm/cm, ft-lb/in and other units. Built-in micro printer. 24 test data values can be printed one by one, and the average value can also be printed. |
| Item | GC-XBL-5.5D | GC-XBL-22D |
|---|---|---|
| Display mode | 4.3-inch color touch screen (English) | |
| Energy accuracy | 0.01J | |
| Pendulum pre-evaluation angle | 150°C | |
| Impact velocity | 3.5m/s | |
| The pendulum energy | 2.75J, 5.5J | 11J, 22J |
| Distance between Pendulum and the impact blade | 335mm | |
| Distance between impact blade to upper mouth | 22.0mm±0.2mm | |
| Blade angle | 75±1° | |
| Blade fillet radius | R=0.8±0.2mm | |
| Angle accuracy | 0.01° | |
| Blade fillet radius (repeat) | R=0.8±0.2mm | |
| Pendulum force moment |
2.75J MN = 1.4737N.m 5.5J MN = 2.9474N.m |
11J MN = 5.8948N.m 22J MN = 11.7898N.m |
| Output method | Micro printout | |
| Voltage | AC220V±10% 50HZ | |
| E. Accessories List | ||||
|---|---|---|---|---|
| Category | Name | Quantity | Unit | Remark |
| The main machine | Impact tester | 1 | set | |
| 2.75J pendulum | 1 | set | XBL-5.5D | |
| 5.5J impact weight | 1 | set | XBL-5.5D | |
| 11J pendulum | 1 | set | XBL-22D | |
| 22J impact weight | 1 | set | XBL-22D | |
| Accessory | Aim for the center block | 1 | set | |
| wrench | 1 | set | ||
| printer | 1 | set | ||
| Printing paper | 2 | set | Combined on the machine | |
