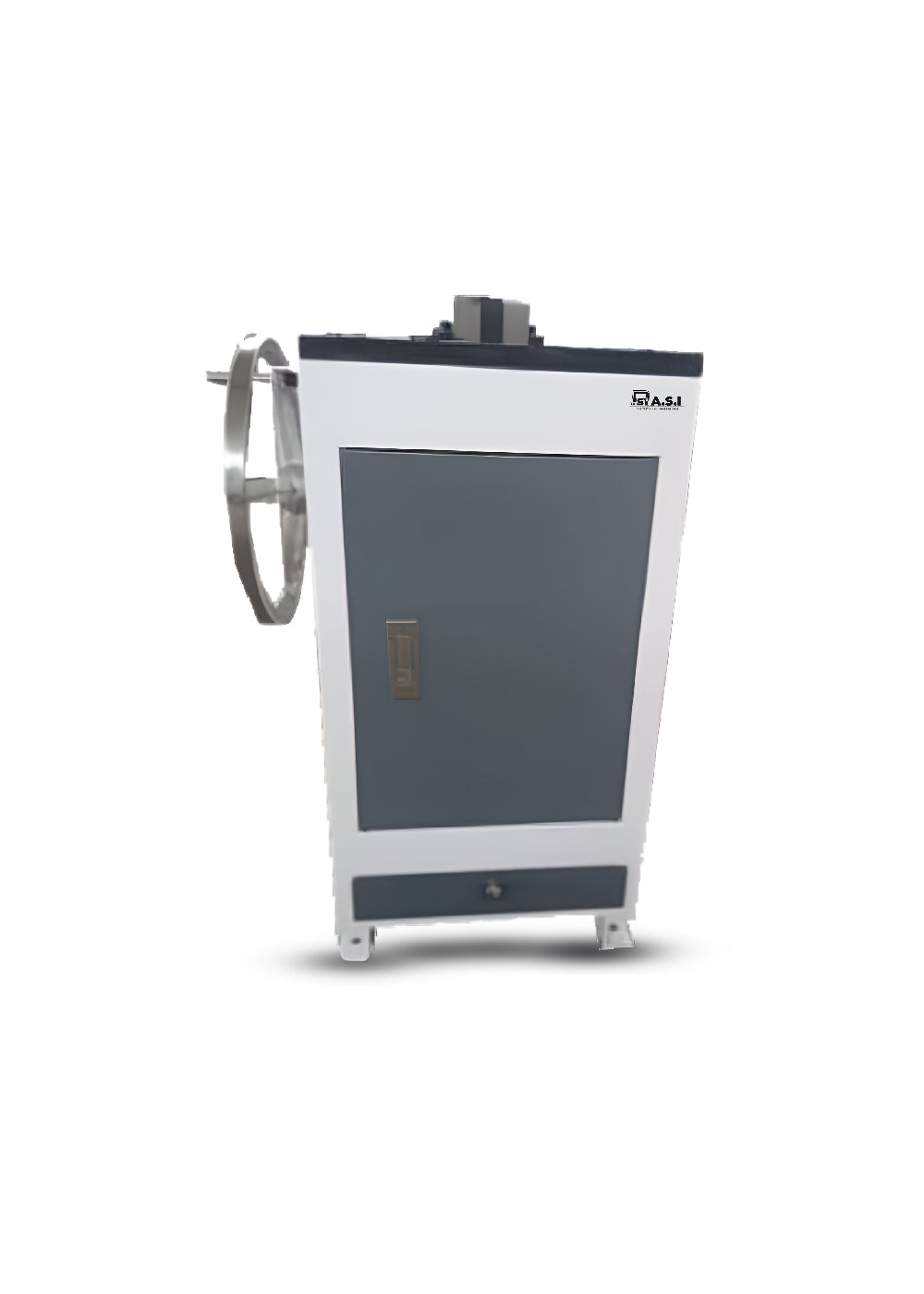

Impact Specimen Notch Manual Broaching Machine - ASI-VU-2S

Impact Specimen Notch Manual Broaching Machine - ASI-VU-2S

Application

The broaching machine is specially used for precise processing of V-shaped and U-shaped notches of impact samples. It is an essential auxiliary equipment for impact testing of metal materials.

Features

  1. The broaching machine has the characteristics of simple operation, one-time forming and uniform notches and vertebrae. Meet the requirements of GB/T229-2007, ISO148 and other domestic and foreign standards. Manually drive the power disc for cutting.
  2. V-shaped and U-shaped broaches can be configured according to user requirements.
  3. The broach is manufactured with special materials and special technology, with high hardness, good wear resistance, long service life, and long-term use of the broach.
Read more
View Catalogue Get Latest Price

View full details
Broaching Machine Tables
Specifications:
No. Items Specifications
1 Machining Specimen Notch Type V type or U type (2mm)
2 Processing sample size 10×10×55mm
3 Broaching speed 2.5m/min
4 Broach stroke 340 mm
5 Broach material V6MO5Cr4V2
Main configuration :
No. Items Qty. Remark
1 Host machine 1
2 V- type broach (2mm) or U- type broach (2mm) 1 HRC63-66° (Optional Alloy broach HRC85°)
