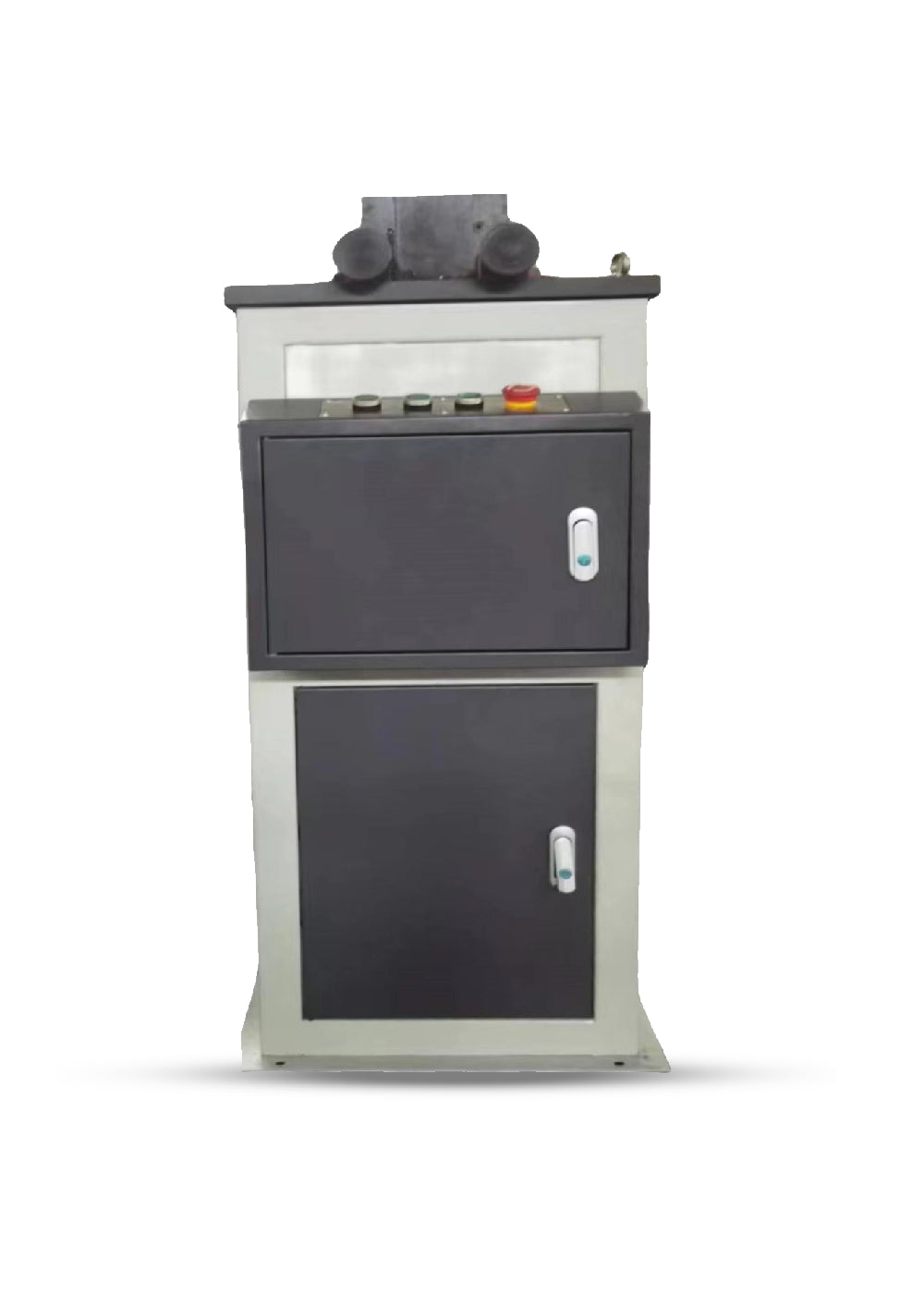

Impact Specimen Notch Electric Broaching Machine - ASI-CYDD-L

Features

The impact specimen notch broaching machine is currently the only tool in China, other than
the optical curve grinder, that can process notches of qualified Charpy impact specimens.
Due to the one-time forming processing principle, the notches produced by it have excellent
uniformity. This broaching machine adopts motor ball screw transmission to ensure the
stability of the broach operation and the geometric accuracy of the notch. This product is
equipped with a double-station broach, which can process two sample notches at the same
time: one V-shaped (2mm deep) and one U-shaped (2mm deep) (two V-shaped or two
U-shaped notches are also available). There is no need to change tools whether processing
V-shaped or U-shaped notches. It only takes 8 seconds to process.
 the sample notch at one time, making the operation simple and reliable. The broaching tool
of this broaching machine has high hardness and good wear resistance. This broaching
machine has a unique lubrication device. The broaching tool stroke adopts a dual-track
four-slide design (our company's patented product) to prevent damage to the broaching
tool. It is equipped with a garbage box inside. , easy to clean iron filings. Company patent
features:
