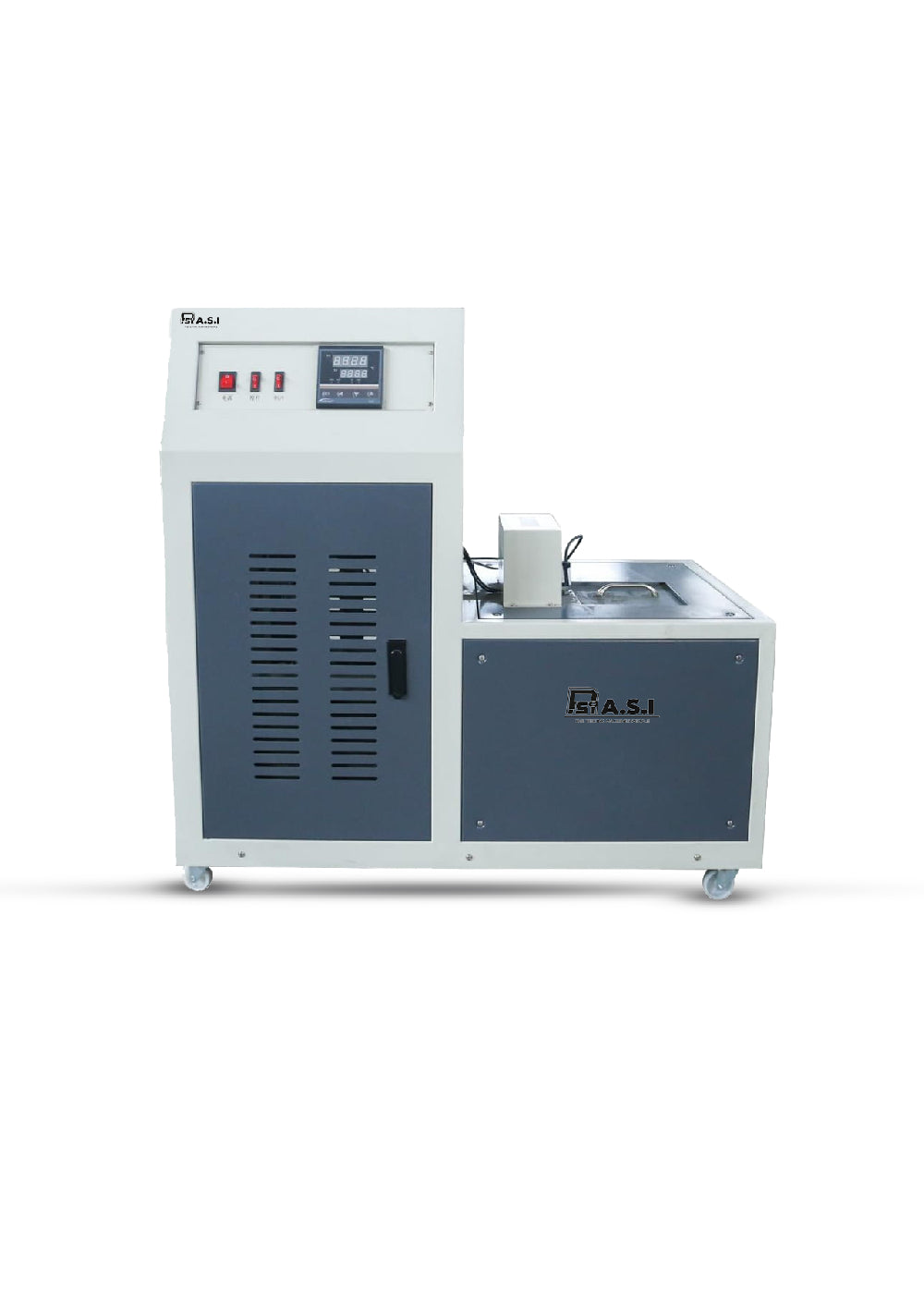

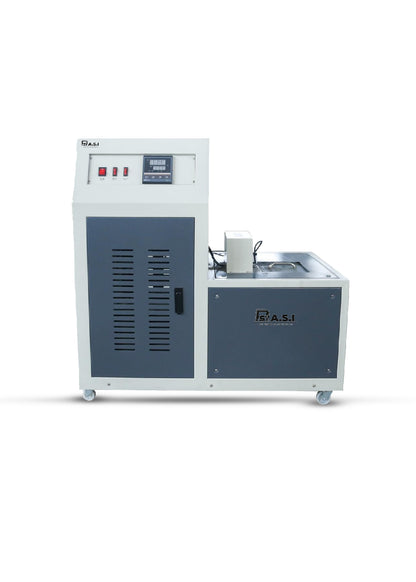

Impact Specimen Cryostat - ASI-DWC-Series

Impact Specimen Cryostat - ASI-DWC-Series

INTRODUCTION
DWC-series impact sample cryogenic tank is the latest compressor refrigeration equipment
developed by our company in accordance with the requirements for cryogenic devices in
GB/T229-2007 "Metal Charpy Notch Impact Test Method". This equipment adopts cascade
compressor refrigeration technology, utilizes the principle of heat balance and circulating
stirring method to achieve automatic uniform cooling and constant temperature of the
sample, which can fully meet the various temperature control indicators specified in the
national standard GB/T229-2007. This equipment is simple and convenient to operate and
has high working efficieney. It is the most ideal sample cooling and heat preservation
equipment in the metal low-temperature impact test. At the same time, it can also be
used for other low temperature detection and test work.

Read more
View Catalogue Get Latest Price

View full details
Technical Table
Main technical parameters and configuration :
Model ASI-DWC-40 ASI-DWC-60 ASI-DWC-80 ASI-DWC-100
Range room temperature~ -40°
(room temperature 0 - 25°)		 room temperature~ -80°
(room temperature 0 - 25°)		 room temperature~ -80°
(room temperature 0 - 25°)		 room temperature~ -80°
(room temperature 0 - 25°)
Accuracy ±0.5°C ±0.5°C ±0.5°C ±0.5°C
Cooling rate 0°C~30°C 1.2°C/min
30°C~40°C 1°C/min 		0°C~30°C 1.2°C/min
30°C~40°C 1°C/min
40°C~ -60°C 0.7°C/min 		0°C~30°C 1.2°C/min
30°C~40°C 1°C/min
40°C~ -60°C 0.7°C/min
60°C~80°C 0.5°C/min 		0°C~30°C 1.2°C/min
30°C~40°C 1°C/min
40°C~ -60°C 0.7°C/min
60°C~80°C 0.5°C/min
80°C~100°C 0.5°C/min
Cold room volume 160×140×100mm 160×140×100mm 160×140×100mm 160×140×100mm
Cooling Medium 99% ethanol 99% ethanol 99% ethanol 99% ethanol
Hold samples >60 >60 >60 >60
Stirring motor 8W 8W 8W 8W
Weight 70Kg 80Kg 80Kg 150Kg
Voltage AC 220V 50Hz, 1KV AC 220V 50Hz, 1.5KV AC 220V 50Hz, 1.5KV AC 220V 50Hz, 1.5KV
