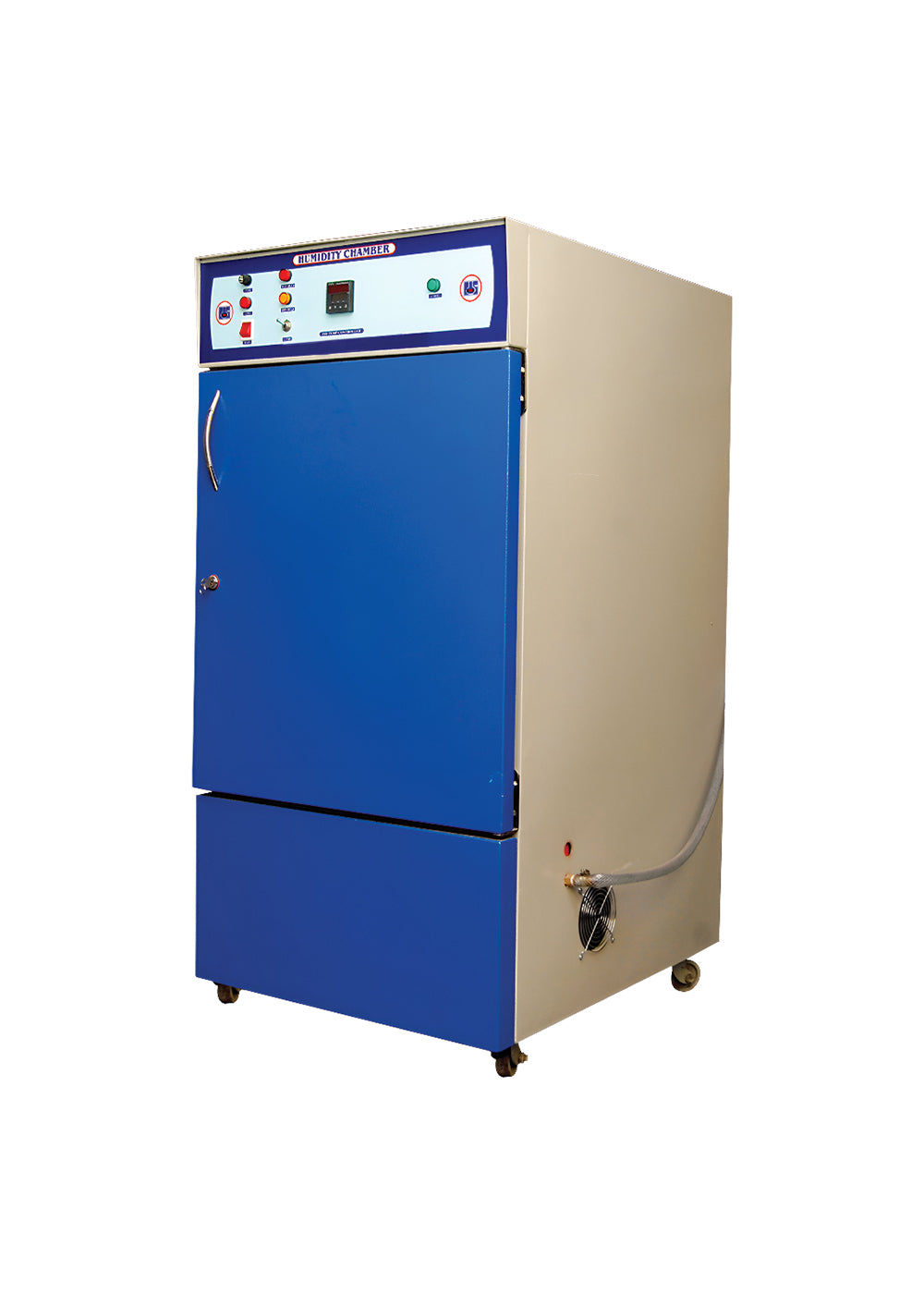

Humidity Control Oven Digital Display (Environmental Test Chambers) - ASI-1120

Humidity Control Oven Digital Display (Environmental Test Chambers) - ASI-1120

Double walled, interior made of Aluminum/Stainless Steel. Exterior of Mild Steel finished in paint. Glass wool insulation, full length inner glass door and outside metal door with magnetic gasket and lock. Two perforated removable trays at fixed distance are provided of Aluminum /Stainless Steel. Unit consists of Main switch, fuse, pilot lamps for all controls. DIGITAL DISPLAY Electronic temp. controllers for Dry Wet bulbs. Humidity by steam injection controlled temp. In case of cooling models by Hermetically sealed compressor coupled with evaporation coil and condenser, safe guard by time delay circuit. Unit works on 230 Volts AC. 50Hz main supply.

Read more
View Catalogue Get Latest Price

View full details
Internal Dim.
In cms. (HxWxD)		 Inner Chamb. Temp. Range
0 Accuracy = 1 C		 Humidity Range
Accuracy +3%RH
0 0 between to 10 C to 60 C
(a)70x50x50 xAluminum10 C above 0 ambien to 60 CAmbiedn to 95%RH
(b)-do-Stainless Steel-do--do-
(c)-do-Aluminum10 CI to 60 C40% to 90%
(d)-do-Stainless Steel-do--do-
(e)-do--do-0 C to 60 C-do-
(f)90x55x55Aluminum10 C above 0 ambient to 60 CAmbien to 95% RH
(g)-do-Stainless Steel-do--do-
(h)-do-Aluminum10 C to 60 C40% to 95% RH
(i)-do-Stainless Steel-do--do-
(j)-do--do-0 C to 60 C-do-
(k)-do--do-20 C to 60 C-do-
