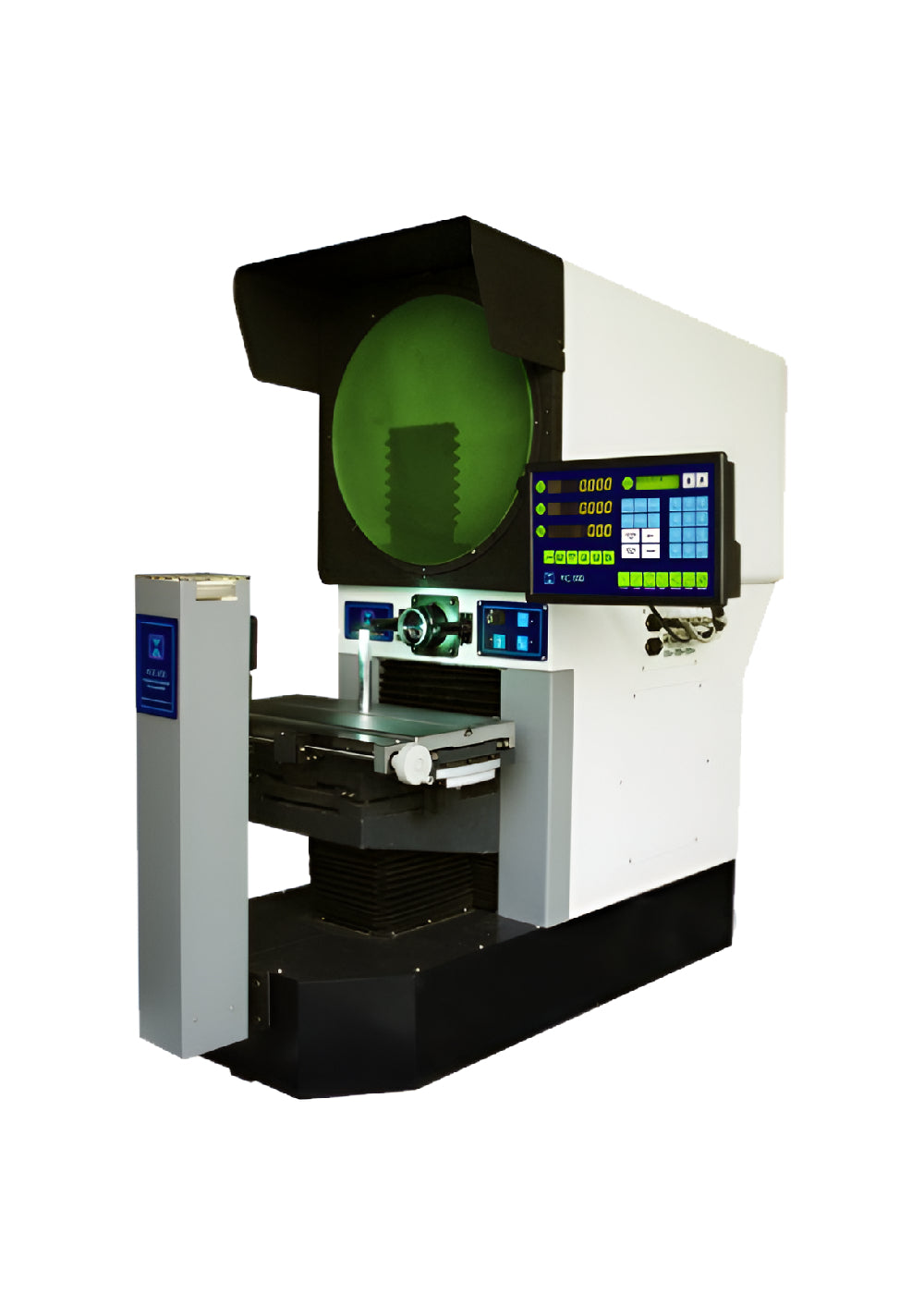

| Stage Specification | |
|---|---|
| Working table's size (mm) | 450×200 |
| Stage Travel X-axis (mm) | 250 |
| Stage Travel Y-axis (mm) | 100 (for focus) |
| Stage Travel Z-axis (mm) | 150 |
| Stage turning angle | ±15° |
| Measuring Accuracy | (2.5+L/150)μm L = measuring length (mm) |
| Machine Specifications & Components | |
| Screen |
Screen Diameter: φ400mm with 4 film clips Screen material: fine ground glass Reference line: Staggered cross and crosshair Screen rotary range: 0°~360° Rotary angle resolution: 1' or 0.01° |
| Digital Readout | DC-3000 Metrology Counter with RS-232C output |
| Illumination |
Contour illumination: 24V/150W halogen bulb Reflected illumination: 21V/150W halogen bulb illuminated by two optical fibers |
| Power | AC100-120V, 200-240V |
| Cooling | Built-in cooling fans |
| G.W/N.W | 300KG/240KG |
| Dimension (mm) | 1211×628×1225 |
| Standard Delivery | Optional Accessories (Extra fees) |
| Main unit | 2D Measuring Software |
| Digital Readout DC-3000 | Optical Edge Detector |
| HOC400-10X Objective | Overlay Charts |
| Screen Clamp | HOC400-5X Objective lens, HOC400-20X Objective lens |
| Foot switch | HOC400-50X Objective lens |
| Power cable | HOC400-100X Objective lens |
| Anti-dust cover | Holder with Clamp |
| User manual | V Block with Clamp |
| Swivel Center Support | |
| Rotary table | |
| Calibration Scale | |
| Magnification Details | |||||
|---|---|---|---|---|---|
| 5× (Optional) | 10× (Standard) | 20× (Optional) | 50× (Optional) | 100× (Optional) | |
| Field of view (mm) | Φ80 | Φ40 | Φ20 | Φ8 | Φ4 |
| Working distance (mm) | 93.7 | 103.9 | 95.1 | 65.7 | 35.0 |
