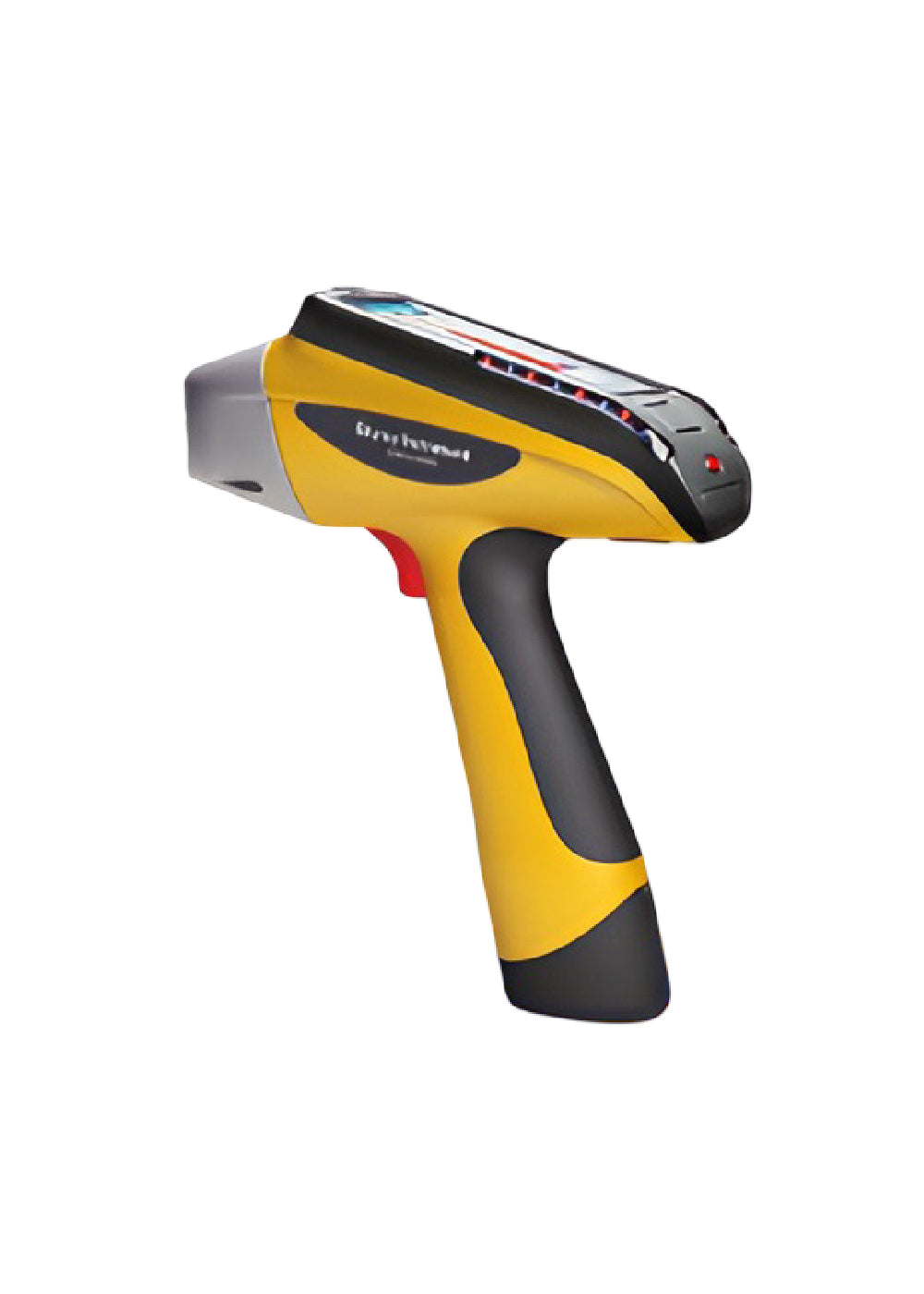

Handheld XRF Metal Analyzer 7000+

A New Generation, The Leader of Handheld XRF EXPLORER 7000+ Handheld Alloy Analyzer EXPLORER 7000+ can make accurate and nondestructive detection on a variety of precious metal alloys, low alloy steel, stainless steel, tool steel, chrome / molybdenum steel, nickel alloys, cobalt alloys, nickel / cobalt–resistant alloys, titanium, copper alloy, bronze, zinc alloy, tungsten alloy, etc. Knowing the materials composition and alloy kind in one second. Rapid detection on aluminum and magnesium alloy grades is possible and it allows to make reliable identification and confirmation of the material (PMI) and precisely control the materials quality.

Rapid and accurate on-site analysis of alloy kinds and elements
Based on ten–year research and development experiences of portable instruments, EXPLORER handheld XRF adopt photoelectron, microelectronics, semiconductor, computer and many other technology and develop the new generation of handheld XRF with Independent Property Rights. EXPLORER 7000+ handheld alloy analyzer is the first to use large–screen, high–resolution LCD and the new digital signal processor. The minimum detection limits make its performance as great as the desktop. With small size and light weight, EXPLORER is portable for testing and suitable for analyzing different kinds of alloy.
» Application Field
▪ Precious metal alloy ▪ Iron and steel smelting ▪ Waste metal recycling ▪ Machinery manufacturing and processing	▪ Boiler pressure vessel ▪ Aerospace industry ▪ Shipbuilding ▪ ......

View full details

Analytical Method	Energy dispersive X ray fluorescence analytical Method
Elements Measuring Range	Atomic number from 12 to 92 [elements from magnesium (Mg) to uranium (U)] can be measured
Simultaneous detector elements	Simultaneous analysis 40 elements
Microcomputer system	Customized system; CPU: 1G ; system memory: 1G ; extended stored maximum support 32G ; standard 4G for mass storage data
The content range	ppm ~ 99.99%
The detection time	1 – 60 seconds (a second report results)
A built-in system	GPS, WIFI, Bluetooth
Power Supply	Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh superbattery with wide voltage 110V ~ 220V universal adapter for recharging power supply
Detection Objective	Solid, liquid, powder
Detector	SDD detector or Fast–SDD detector (optional)
Detector resolution	Minimum can reach 128eV
The excitation source	50KV/200uA – silver target end window integrated miniature X ray tube and high voltage power supply
Collimator and filter	Collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
Video system	500W pixel high resolution camera
Display screen	Brand new 5 inch transflective LCD touch screen, the resolution is 1080 × 720
Detection limit	The minimum detection limits at 1 ~ 500 ppm
Safety	Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards, and has no sample telemetry, automatic shut X light tube function. Standard radiation shields, thickened wall alloy test instrument
Specialty	Ore special edition analysis software, using intelligent one key test
Convenience of application	Key intelligent matching the best curve that no need to select curve
Data transmission	Digital multi–channel technology, SPI data transmission, quick analysis, the high count rate; waterproof mini USB, and can be connected with a desktop computer
Operating ambient humidity	≤90%
Operating environment temperature	−20°C ~ +50°C
Instrument dimension	244mm (Length) × 90mm (Width) × 330mm (Height)
Instrument weight	1.7Kg
Intelligent warning signal/Indicator system	Green light means power on, red flushing means testing and yellow flushing means the problems
Accessories	Three–military–protection–box is compression, waterproof and shock absorption. Universal charger and car charger, 4G SD memory card and card reader. Two lithium battery and charger, PDA accessories, radiation shield. Optional accessories: the large battery, seat type test support, Bluetooth printer, mill, manual pressure machine, and other options can to choosen...
