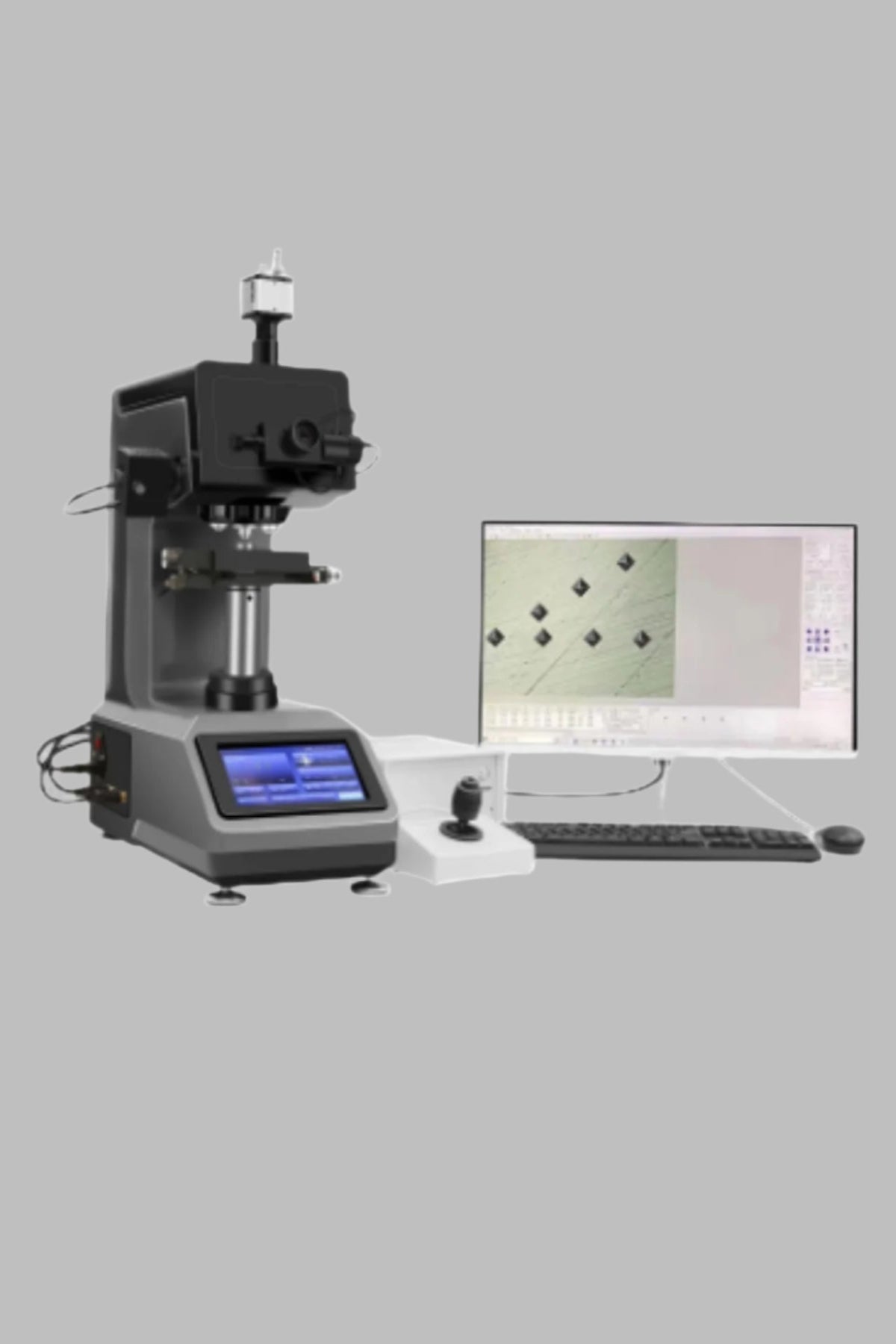

Fully-Automatic Digital Micro Vickers Hardness Tester - ASI- MHVD-1XYZ

MHVD-1XYZ Fully Automatic Micro Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Micro Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of fully automatic, high precision, high repeatability, and it is the important equipment for materials analysis.

Key Features:

1. Fully Automation: With click of a button, system starts automatic test and measurement process in indentation, auto-focusing, measuring, and hardness curve plotting.
2. Motorized XY Sample Stage: System provides motorized XY sample stage, with XY stage table dimensions 110mm × 110mm, travel lengths 50mm × 50mm, and position precision 2 µm as standard. Can be controlled by joystick and by software. Table dimensions and travel lengths can be customized.
3. Test Pattern and Path Setup: Sets up test paths with various patterns such as line, line set, arc, gear top parallel, gear center, and matrices etc.
4. Automatic Sample Boundary Scan: Automatically scans along the sample boundary to obtain the sample overview image which is necessary in many test cases to set up test load paths.
5. Hardness Curve, Statistics, Auto-alarm: Automatically detects and plots multiple hardness curves and calculates the hardness case depths. Automatically updates the statistics such as average, min and max, standard deviation, Cp, and Cpk. Automatically marks data that are out of specification limits. May load the depth template file for convenience.
6. Conversion, Compensation, and Validation: Converts HV to other hardness scales simultaneously; validates the test results with sample dimensions; compensates the test results with respect to sample cylindrical/spherical diameters.
7. Data Archiving: Measurement data and images can be saved in one file for later processing.
8. Test Report: Automatically generates WORD, EXCEL or PDF report with customizable template. May enter user additional information in report.
9. Data Output by Network: Sends data to TCP/IP server in network to enterprise database.
10. Knoop Scale, Fracture Toughness: Can be configured for Knoop Scale measurement; also for Fracture Toughness measurement by indentation.
11. Other Functionalities: Image/Video capture/save; Geometric measurements; Document entries, etc.
12. Stable Structure Design: Adopted one-time casting aluminum machine body and car painting technology, structure more stable and appearance more decent.
13. Multi-functions: Support automatic measuring with computer and software, also support manual test by machine independently. Double optical path design. Both eyepiece and CCD camera path can work at same time. No need to switch optical path.
