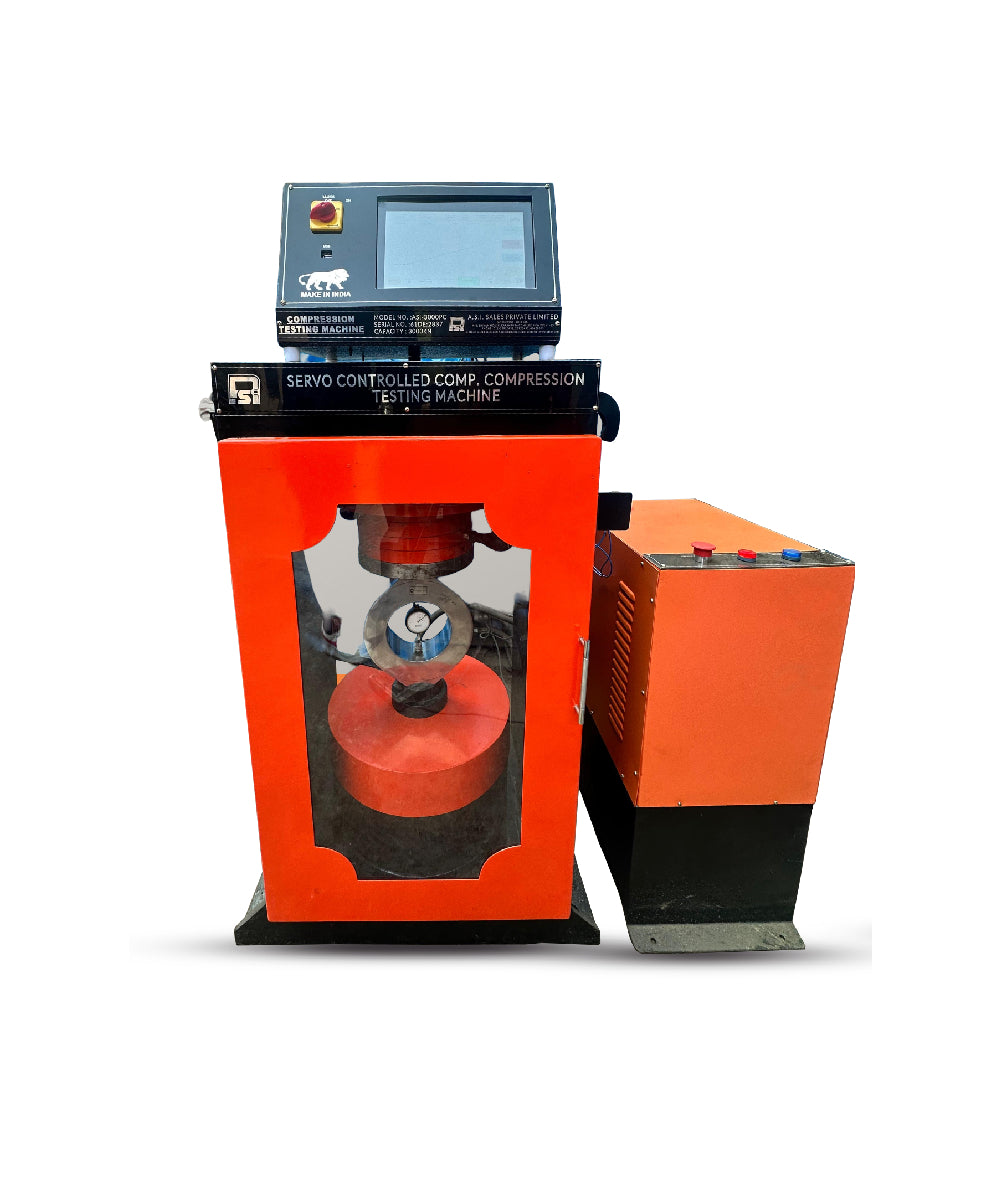

Fully Automatic Compression Testing Machine - ASI- 3000 PC

Features

This machine consist of loading unit and pumping unit.

Loading Unit: Loading unit have high stiffness welded frame for high stability. Heavy duty spherical seat in lubricating oil bath, allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test. The hydraulic jack is fixed to
the base , the upper plate have aligning action & shaft attached which passes to the cross head andcan be raised and lowered for initial clearance for adjustment the lower plate rests on the jack ram and is positioned with the help of centering pin. The lower and upper plates of the machine are hardened, ground and polished. Pumping Unit: The double stage hydraulic pump has motorized unit connected to a jack by means of a steel connecting tube. This consist of Dual stage pump, centrifugal for fast approach and multi-piston for loading, AC motor.
