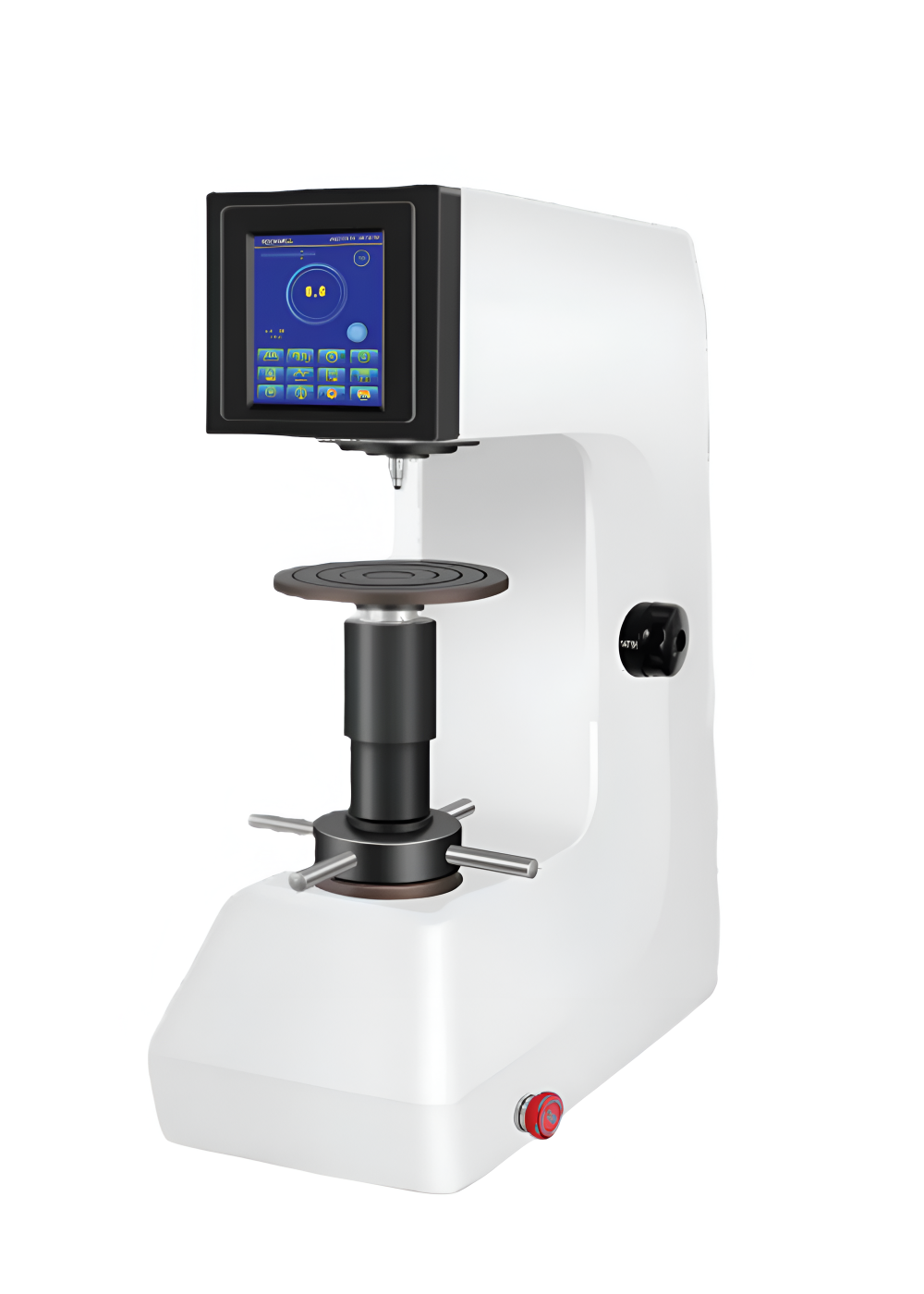

Digital Rockwell Hardness Tester - ASI-HR-150DT

Digital Rockwell Hardness Tester - ASI-HR-150DT

Features

ASI-HR-150T digital Rockwell hardness tester has high level automation, stable and reliable performance, it is equipped with sophisticated sensors so that can test data more accurate ; Large touch screen provide comprehensive data for quality control.

Product Features

  1. The touch screen will display hardness value, conversion value, test force, dwell time,
     indenter info. etc directly, indicator responses sensitively, show the hardness value
     accurately, the test value is more accurate than national standard; the hardness
     value accurately, the test value
  2. Automatic loading - dwell - unloading test force, easy operate
  3. Touch screen support English language, menu structure
  4.  Built-in printer can print test result directly
  5. One-time casted molding shell, stable structure and it is not easy to be out of shape. It can work under harsh environment; the shell coating adopted car paint technology with white color. it has strong



Read more
View Catalogue Get Latest Price

View full details
Hardness Tester Specifications
Technical Parameters
ModelASI - HR-150T
Rockwell ScaleHRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR
Conversion ScaleHRA, HRB, HRC, HRD, HRF, HV, HK, HBW, H15N, H30N, H45N, H15T, H30T, H45T
Test ForceInitial: 10kg (98N); Main: 60Kg (588N), 100Kg (980N), 150Kg (1471N)
Indication Resolution0.1HR
Hardness Value Range HRA: 20-88, HRB: 20-100, HRC: 20-70, HRD: 40-77, HRE: 70-94, HRF: 60-100,
HRG: 30-94, HRH: 80-100, HRK: 40-100, HRL: 100-120
Hardness Data Read4.5” Touch Screen
Loading MethodAutomatic (Load, Dwell, Unload)
Dwell Time1–60s, each step 1 second
Data OutputBuilt-in Printer, RS232
Test SpaceMaximum Height: 210mm; Maximum Throat Depth: 165mm
Machine Size / N.WBuilt-in Printer, RS232
Executive StandardGB/T230.2, BSEN 6508, ASTM E18, ISO 6508, JJG12
Standard Accessories
Standard Accessories Rockwell hardness tester host : 1 set
Diamond Rockwell indenter : 1 pc
1.5875mm diameter hard alloy steel ball indenter : 1pc
Standard hardness block : 5pc
A/B/C : 3 pcs
Large Testing Table : 1 pc
Testing Table : 1pc
V-shaped Testing Table : 1pc
Spare fuse 2A : 2 pcs
Dust proof cover : 1pc
Accessory case : 1pc
Operating Instruction : 1pc
Quality certificate : 1
Standard Accessory Table
Scale Indenter Preliminary Test Force (N) Total Test Force (N) Applications
A Diamond indenter coning angle 120°±0.2mm radius of top sphere 98 588 Horniness alloy, cementite steel
D 980 Thin steel, quenched case
C 1471 Quenched steel, thermal refined steel, cast steel
F Diameter of steel ball 1.588mm (1/16 inch) 588 Anneal copper alloy, thin soft steel
B 980 Soft steel, aluminum alloy, copper alloy, casting
G 1471 Pearliest iron, copper, nickel, zinc, nickel alloy
