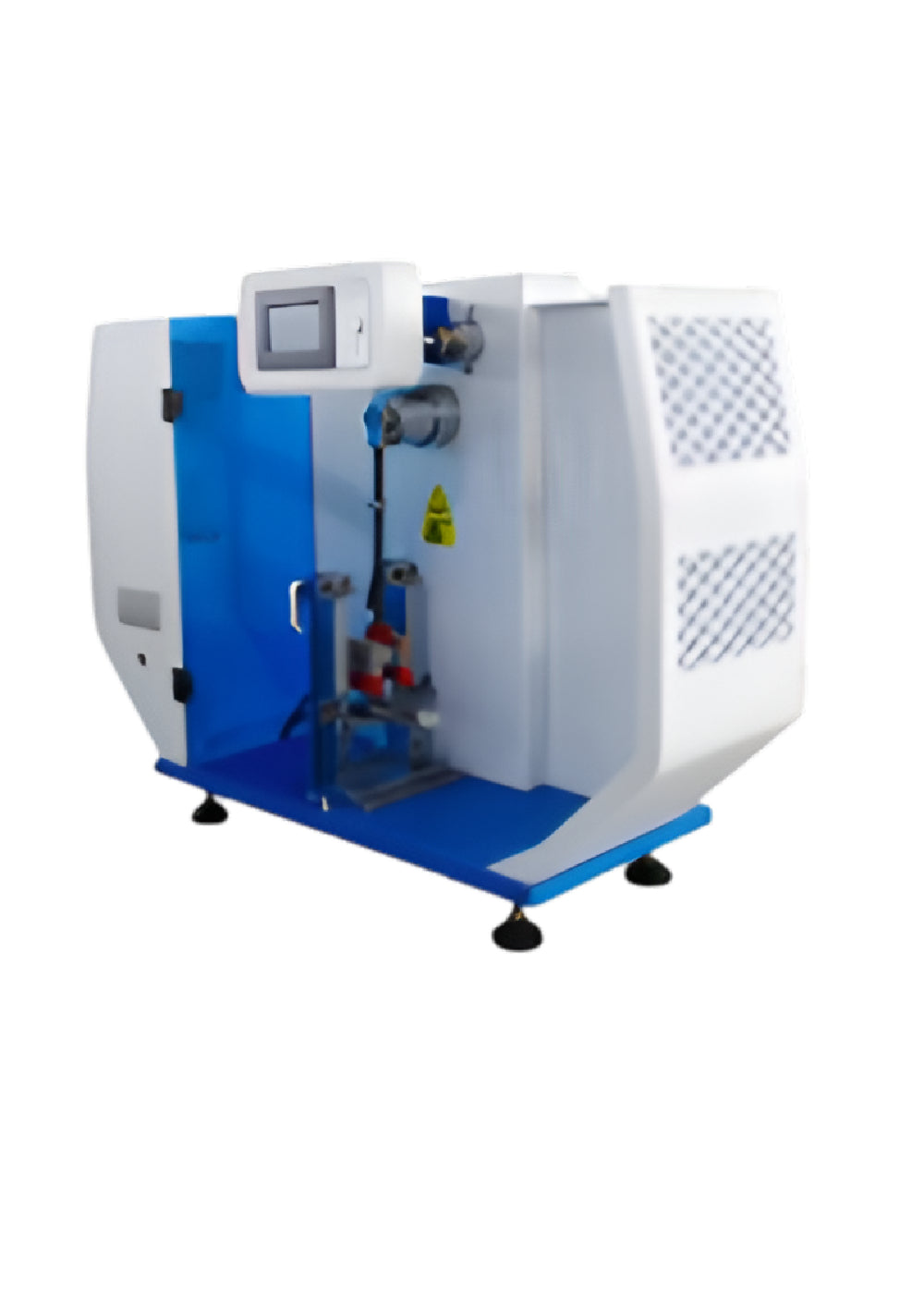

Digital Izod & Charpy Combined Impact Test Machine - ASI-XJL-5/5.5D / ASI-XJL-2250D

Product introduction: This instrument is a new multifunctional Izod and Charpy integrated impact testing machine. It is easy disassemble the fixture and sample holder. The Izod and Charpy test methods are automatically switched. It is easy to use, simple to operate, and has high test accuracy. Mainly used for the determination of the impact toughness non-metallic materials such as hard thermoplastic molding and extrusion materials, hard thermoset molding materials, to of and fiber-reinforced thermoset and thermoplastic composite materials.

Test standards

1. ISO179-2000 "Plastics - Determination of Impact Strength of Charpy of Hard Materials"
2. GB/T1043-2008 "Impact Test Method for Charpy of Rigid Plastics"
3. JB/T8762—1998 "Plastic Charpy impact testing machine"
4. GB/T 18743-2002 " Thermoplastic pipes for fluid transportation - supported beam impact test method" (applicable to pipe parts)
5. GB/T 21189 Inspection of Pendulum Impact Tester for Plastic Izod, Charpy and Tensile Impact Test
6. ISO180-2000 "Plastics - Determination of Izod Impact Strength of Hard Materials GB/T1843-2008 "Izod impact test method for rigid plastics"
7. JB/T8761-1998 "Plastic Izod Impact Testing Machine"
8. ASTM D256-2010 "Test Method for Determining Plastic IZOD Pendulum Impact Strength"
9. GB-T13525-1992 "Test Method for Tensile Impact Properties of Plastics"

Features

1. Integrated impact of Izod and Charpy, no need to disassemble the clamp and specimen holder
2. High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately
3. The use of carbon fiber pendulum rods improves the rigidity of the material in the impact direction and maximizes the impact mass on the center of mass of the pendulum, truly achieving a vibration-free impact test and extending the service life.
4. Using imported high-resolution digital encoders, the angle measurement accuracy is higher and more stable. The aerodynamic impact hammer and imported ball bearings greatly reduce the friction loss caused by the machine.
5. Automatically calculate the final result, the test data can save 24 sets of data and calculate the average
6. The IZOD impact testing machine can choose Chinese and English operation interfaces, and the test results can be chosen in J/m, KJ/m², kg-cm/cm, ft-ib/in and other units
7. Built-in micro printer. 24 test data values can be printed one by one, and the average value can also be printed.
