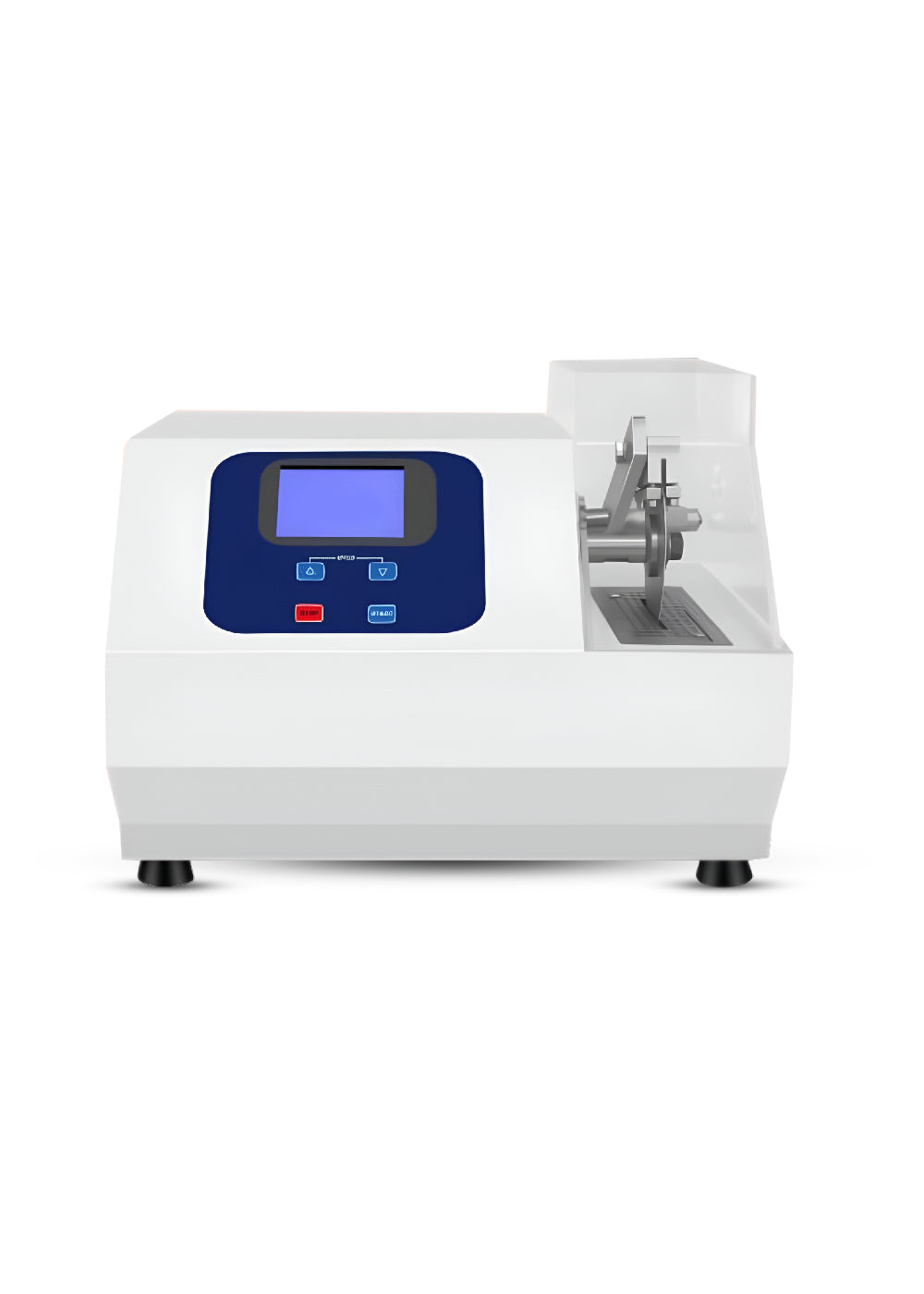

Cutting Machine Sample Precision Automatic Cooling Mode - ASI-CM-30L

Cutting Machine Sample Precision Automatic Cooling Mode - ASI-CM-30L

Product Features:

  1. Precision cutting off with micrometer head control;
  2. Closed transparent protective cover and safety switch provide protection for operators;
  3. With weight sliding loading system, easy to operate and minimize sample damage;
  4. Closed loop control cutting to prevent overload burning motor, circuit, etc;
  5. Automatically stop after finishing sample cutting;
  6. Built-in movable coolant tank avoid overheating of cutting wheel and samples, the surface of the cut sample is bright, smooth and free of burns;
  7. The equipment has the features of compact body, small footprint, convenient operation and maintenance.
Read more

View full details
Technical Specification
Technical Specification:
Model ASI-CM-30L
Cutting wheel Ø100xØ12.7x0.4mm
Cutting depth 25mm
Motor Power: 50W speed: 0-600r/min
Cooling device Automatic cycle cooling of cutting fluid (the cutting wheel drives the circulation of the water in the tank to cool down)
Display LCD screen
Weights 2pcs (167.69g / 236.32g)
Micro meter travel range 0-15mm
Position accuracy 0.01mm
Power supply AC220V 50HZ
Machine Size 392x330x310mm
Net Weight 20 kg
Package size 650x530x540mm
Gross Weight 33 kg
Accessories:
Item Quantity Item Quantity
Cutting wheel 100*0.4*12.7mm 1 Wrench 17-19 1
Jig 4 Open-end spanner 20mm 1
Double head jig 1 Internal hexagonal wrench 3
Manual 4 Power cord 1
