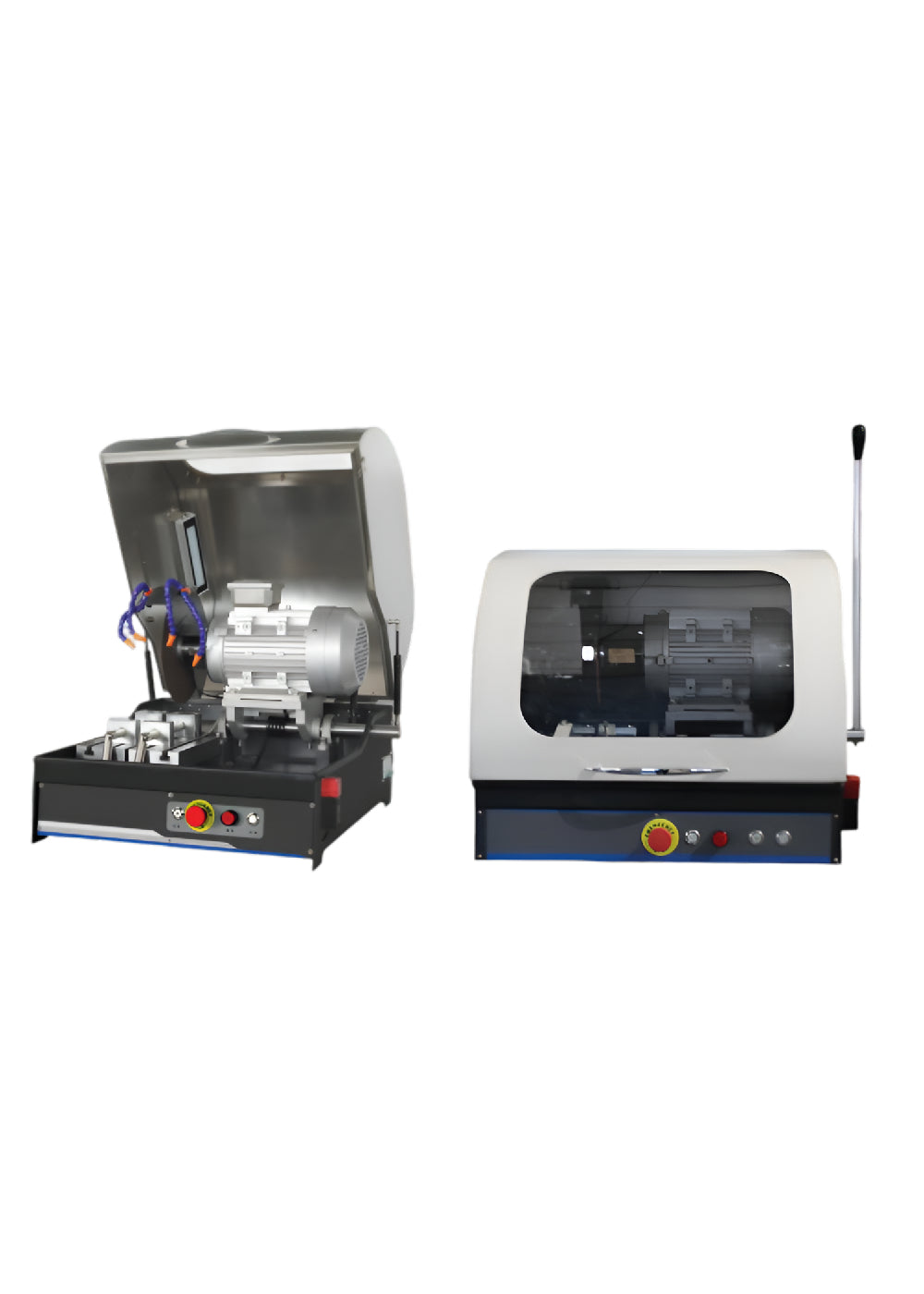

Cutting Machine Manual Maximum Cutting Section Ø60Mm - ASI-QG-60C

Cutting Machine Manual Maximum Cutting Section Ø60Mm - ASI-QG-60C

Product Features:

  1. QG-60C/80C/100C Cutting Machine can be used to cut metal sample, electronic components, crystal and mineral materials.
  2. The machine adopts closed structure, large observation window, use safe.
  3. Quick clamping mechanism for optional, easy to clamp sample.
  4. Have a special cooling water tank, for circulating cooling liquid.
  5. Main components such as jaw and work surface adopts stainless material, long service life.
  6. QG-60C machine shell is sheet metal material, QG-80C, 100C machine shell is stainless steel material.
Read more
View Catalogue Get Latest Price

View full details
Technical Specifications
Main Technical Specifications:
Model ASI-QG-60C ASI-QG-80C ASI-QG-100C
Maximum cutting section φ60mm φ80mm φ100mm
Cutting Disc 250*2*32mm 250*2*32mm 300*2*32mm
Motor power 2.2kW 3.0kW 3.0kW
Net weight 86kg 117kg 120kg
Machine Size 710*645*470mm 650*715*545mm 680*800*820mm
Rotation Speed 2800rpm 2800rpm 2800rpm
Cutting room light Low voltage dc lighting Low voltage dc lighting Low voltage dc lighting
Working table T-slot working table, Left - Right double clamp vise T-slot working table, Left - Right double clamp vise T-slot working table, Left - Right double clamp vise
Power supply 3 phase 4 lines / 380V, 50Hz 3 phase 4 lines / 380V, 50Hz 3 phase 4 lines / 380V, 50Hz
Cooling system Outside water cooling system (can work with chiller) Outside water cooling system (can work with chiller) Outside water cooling system (can work with chiller)
Safe & Easy Cutting Design
Classic chop cut design, large cutting section
Abrasive wheel cutting speed faster
Easy operation & maintenance
Item Quantity
ASI-QG-60C / ASI-QG-80C / QG-100C 1
Cooling water box (including pump) 1
Wrench 2
Water inlet 2
Drain-pipe 1
Pipe Clamps 1
Cutting wheel 2
Manual & Certificate 1
