| TECHNICAL SPECIFICATION | |
|---|---|

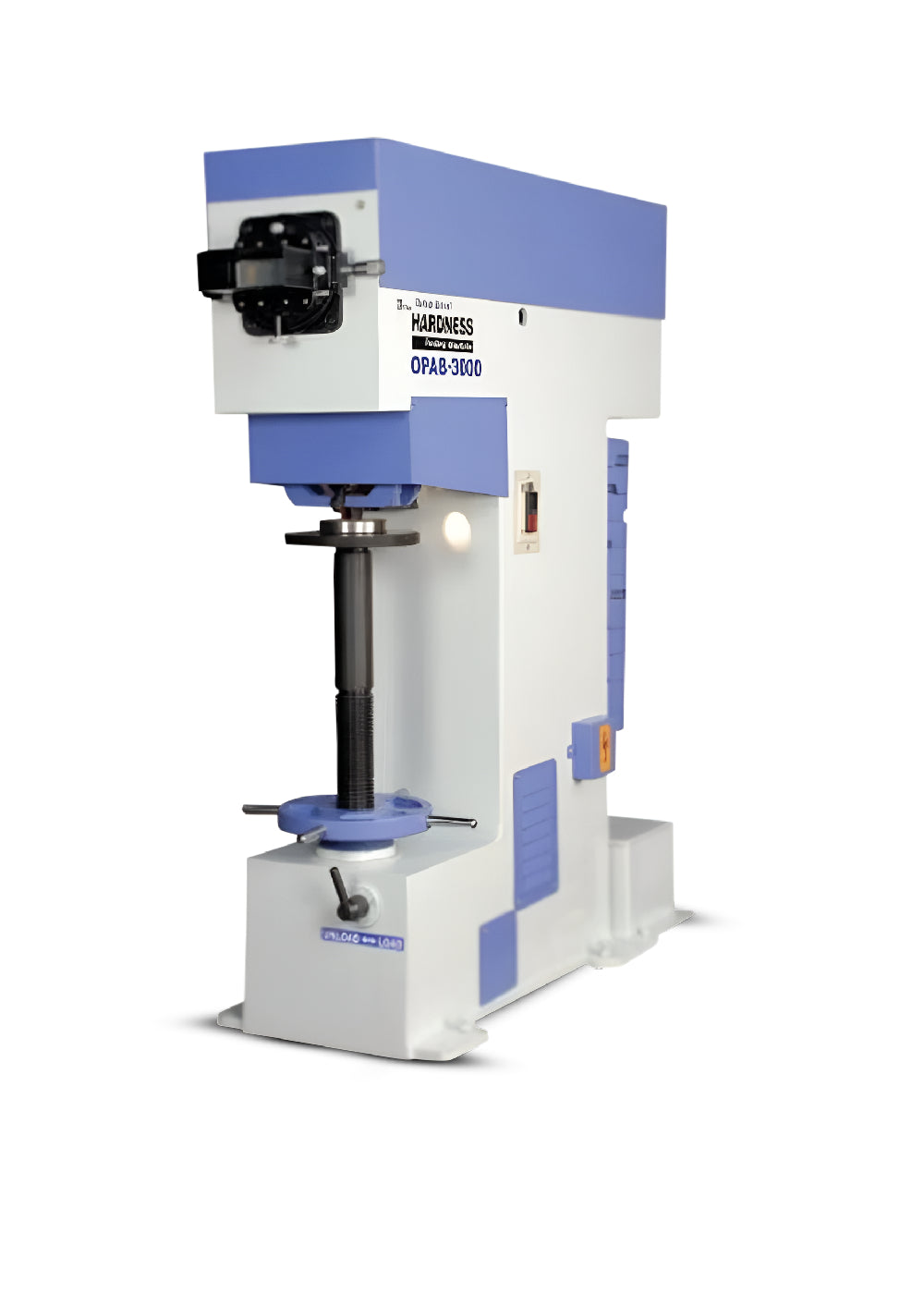

| Model | AMT 3000 OP |
| Load (kgf) | 500 to 3000 in steps of 250 |
| Initial Load (kgf) | NIL |
| Max. test height x throat (mm) | 380 x 200 |
| Max. Depth of elevating screw below base (mm) approx. | 180 |
| Machine height (mm) | 1250 |
| Size of base (mm) | 400 x 740 |
| Nett. Weight (Approx.) kg. | 400KG |
| Drive Motor (hp) | 0.5 |
| Mains supply | 3 phase, 415V, 50Hz, A.C. |
| Indentation Measurement | Direct reading optical drive with 14x magnification |
| STANDARD ACCESSORIES | |
| Testing Table 200 mm | 1 pc. |
| Testing Table dia 70 mm with ‘V’ grove for round jobs 10 to 80 mm dia | 1 pc. |
| Ball holder 5 mm | 1 pc. |
| Ball holder 10 mm | 1 pc. |
| Test Block HBW-5/750 | 1 pc. |
| Test Block HBW-10/3000 | 1 pc. |
| Brinell Microscope (25 X Magnification) | - |
| Allen Key Set | 1 pc. |
| Instruction Manual | 1 pc. |
