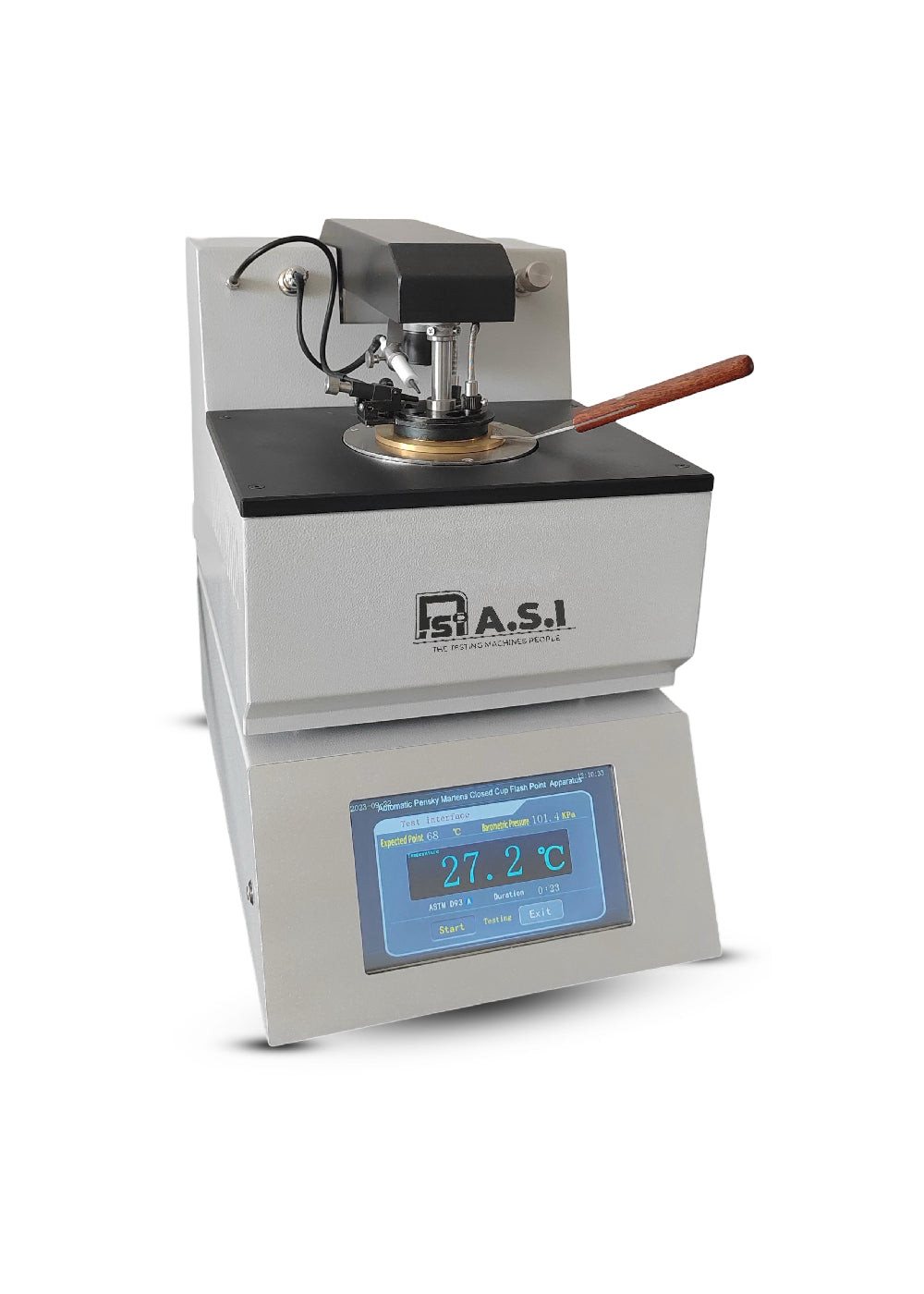

Automatic Pensky-Martens Closed Cup Flash Point Tester - ASI-KN-93Z

Automatic Pensky-Martens Closed Cup Flash Point Tester - ASI-KN-93Z

Features

  1. MCU control, large LCD color touch screen, program heating as ASTM D93 requires
  2.  Automatic ignition and judgment of flash point, ignition can be electric or gas supply
  3.  Equipped with automatic ignition wire, can automatically ignite the gas
  4.  Stepper motor is used for sample stirring, the speed is stable, accurate and adjustable,
     fully in line with ASTM D93 A,B and C procedure
  5.  Quick detection function, the heating rate can be set according to requirements, and the expected flash point of unknown oil sample can be judged quickly.
  6.  Automatic lifting and lowering function, easy to operate.
  7.  Temperature correction function is equipped, The atmospheric pressure can be automatically corrected
  8.  Be able to set the highest detection temperature, ignition times, reach the set value
     automatically stop heating.
Read more

View full details
Technical Parameters
1. Measurement range: 40 ~ 300°C
2. Applicable standards: ASTM D93 (A, B and C procedure)
3. Temperature detection: platinum resistance (PT100)
4. Flash point detection: miniature thermocouple
Heating rate:
   A method: 5 ~ 6°C/min (ASTM D93A)
   B method: 1 ~ 1.5°C/min (ASTM D93B)
5. Heater: 220V, 0.5KW
6. Stirring speed: 105RPM (ASTM D93A), 250RPM (ASTM D93B)
7. Ignition mode: optional gas ignition or electric
8. Working power supply: AC220V±10%, 50Hz
