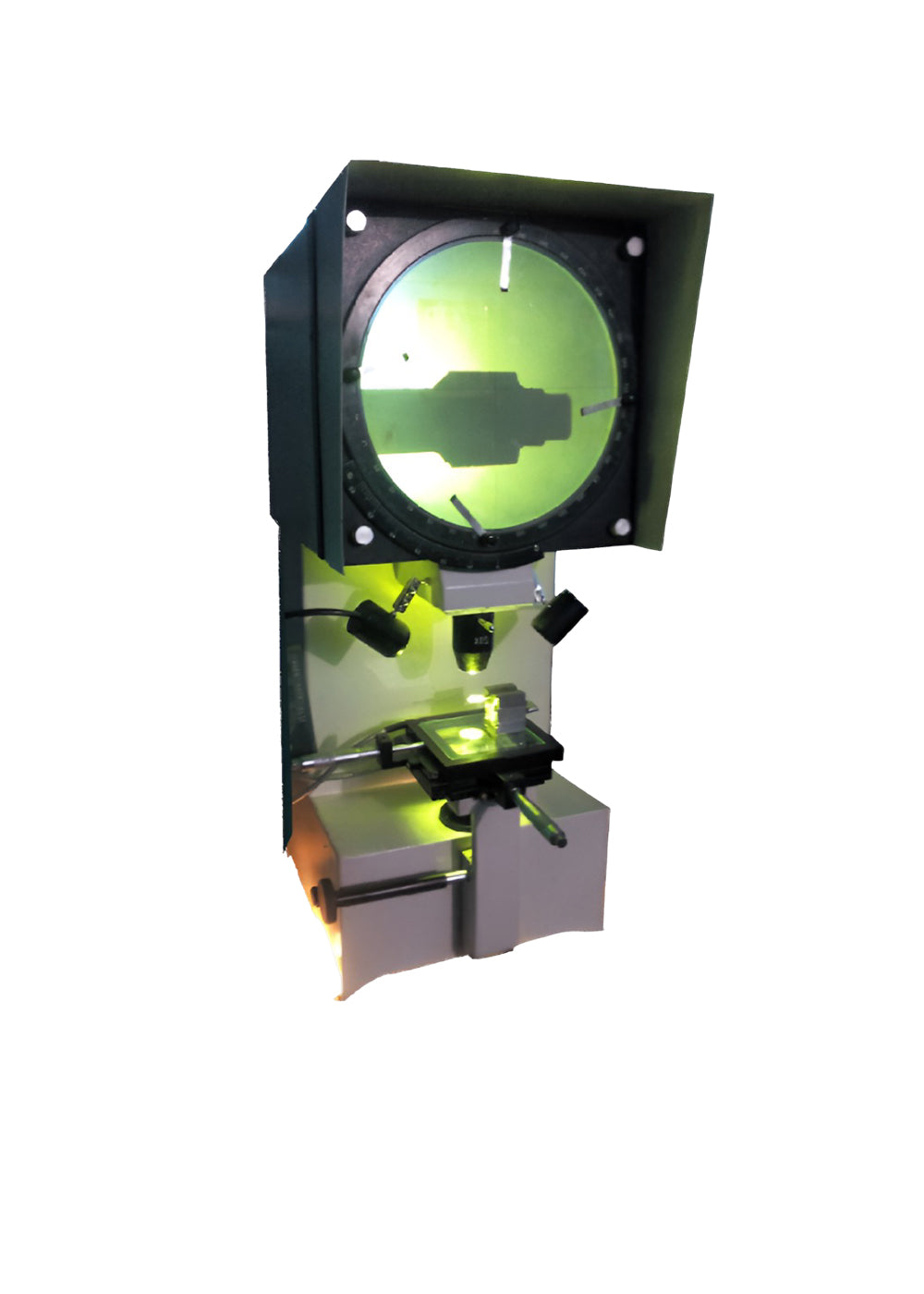

ASI Vertical Profile Projector 300mm ASI-71A

ASI Vertical Profile Projector 300mm ( ASI-71A ): Having 300mm dia 360 degree rotatable graduated screen with venire and 90 degree cross hair line providing high accuracy of linear and angular measurements, providing illumination of contour lamp 12V/100W and two surface (12v/35W) lamps, with three standard magnifications.

Standard Features:
•    X-Y Bed Size : Size :150mm X 150mm, fitted with hard steel balls for X-Y movement
•    Travel X-Y movement (Standard) :25 X 25mm
•    Micrometers (50mm Dia) :Zero Adjustable 25mm (L.C 0.01mm)
•    Angular Measurement : Manual, 360 degree graduated ring with 1 minute venire
•    Maximum size of object view : 28mm (dia)
•    Max Working Distance :  65 mm
•     Standard Magnifications :10x, 20x & 50x

Optional Available At extra cost:
•    Rotary encoder for Digital angle Measurement
•    Digital Micrometers of  0.001mm Least Count
•    Magnification of 100x
•    2 Axis DRO for Digital X-Y & Radius Measurements
•    3Axis DRO for Digital X-Y, Angle & Radius Measurements
•    Data Processor Geometrical DRO with RS 232 Port
•    360 degree Rotary attachment on X-Y bed
