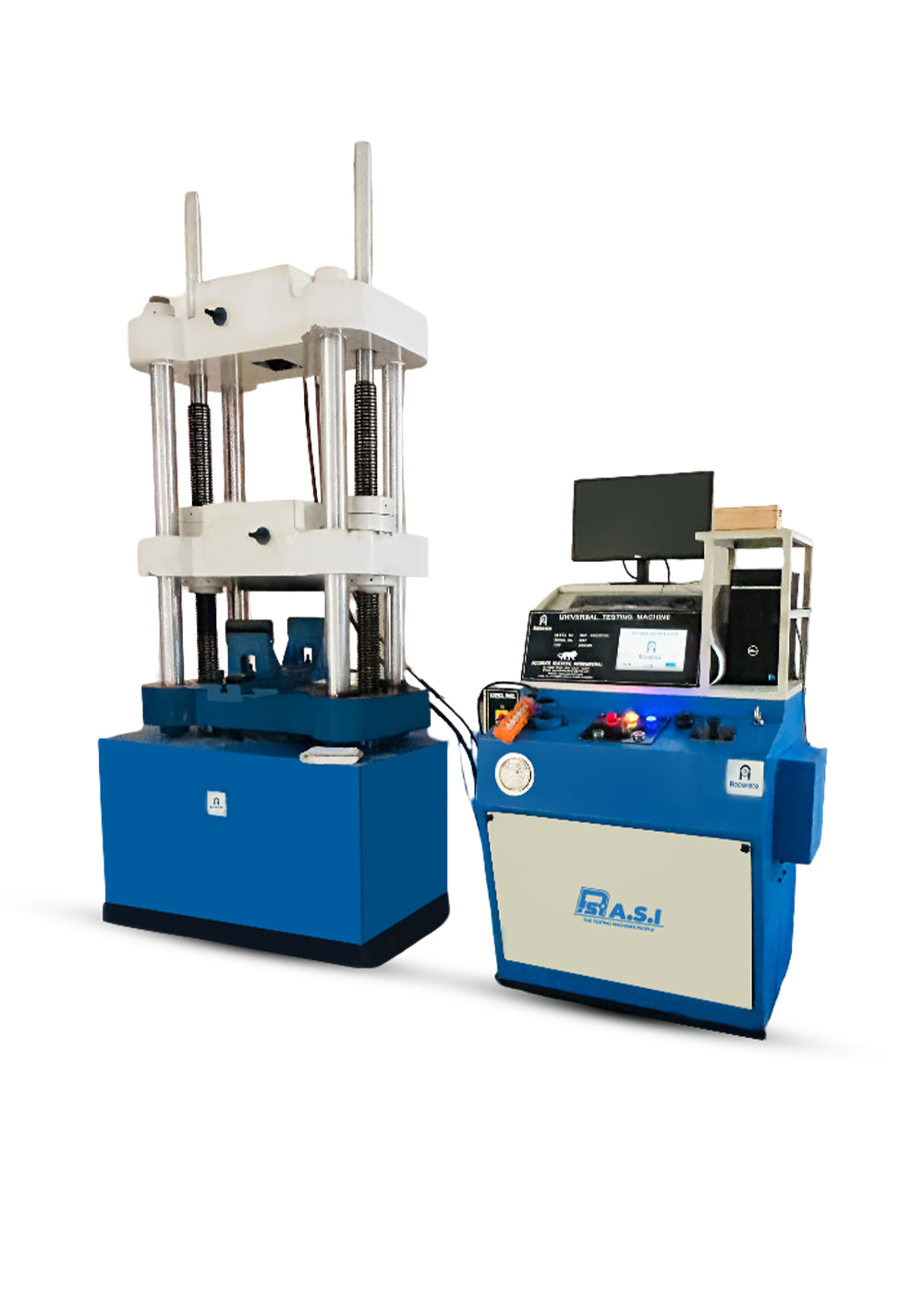

ASI Universal Testing Machine 2000 KN Capacity, AMT-200SC

Name: ASI Universal Testing Machine 2000 KN Capacity, AMT-200SC
Brand: Asisales
SKU: AMT-200SC
Availability: InStock

Key Features

· Servo-controlled automation with force/stress, displacement/strain control modes.

· Rate of loading: ≥100 N/s (or better).

· PID closed-loop controller: ≥120 Hz loop closure rate.

· Precision: Load resolution: 0.1 kN, Elongation resolution: 0.01 mm, Extensometer resolution: 0.001 mm.

· DAQ & Analysis: Real-time curves (Force–Deformation, Stress–Strain), report generation, export in Excel/PDF.

· Channels: Minimum 6 additional channels for external displacement transducers (LVDT, compressometers, strain gauges, etc.).

· Safety: Overload protection with automatic shutdown at max load.

· Power: 440 V, 50 Hz, 3-phase AC.

Technical Specifications

· Test clearance: 75 mm – 800 mm (or better).

· Stroke: 200 – 300 mm.

· Crosshead speed (no load): 0–50 mm/min.

· Machine frame: Stable load frame with hydraulic jaws set.

· Hydraulic power pack: Pressure: 100 – 700 bar, Oil delivery: ~ 10 L/min, Cooling: Forced oil–water type.

AMT 2000SC Specifications

Technical Specifications - AMT 200SC

Model	Unit	AMT 200SC
Maximum Capacity	KN	2000
Measuring range	KN	0–2000
Load resolution (40000 count full scale)	N	100
Load range with accuracy of Measurement ±1%	KN	40–2000
Resolution with accuracy of (Displacement for UTE)	mm	0.01
Clearance for tensile test (At fully descended working piston)	mm	75–800
Clearance for compression test (At fully descended working piston)	mm	0–850
Clearance between columns	mm	750
Ram Stroke	mm	250
Straining/Piston Speed (at no load)	mm/min	0–50
Connected Load
Power	HP	5.5 / 7
V	-	400–440
Φ	-	3
Standard Accessories – For Tension Test
Clamping jaws for round specimens of diameter	mm	6–20, 20–40, 40–60, 60–80
Clamping jaws for flat specimens of thickness	mm	0–20, 20–45, 45–70
Width	mm	90
Pair of Compression Plates of diameter	mm	160
For Transverse Test
Table with adjustable rollers
Width of rollers	mm	200
Diameter of rollers	mm	50
Maximum clearance between supports	mm	800
Radius of punch top	mm	16, 22
