| Specification |
|---|
| Model Name/Number | AMT-20E |
| Brand | ASI |
| Display | Analogue |

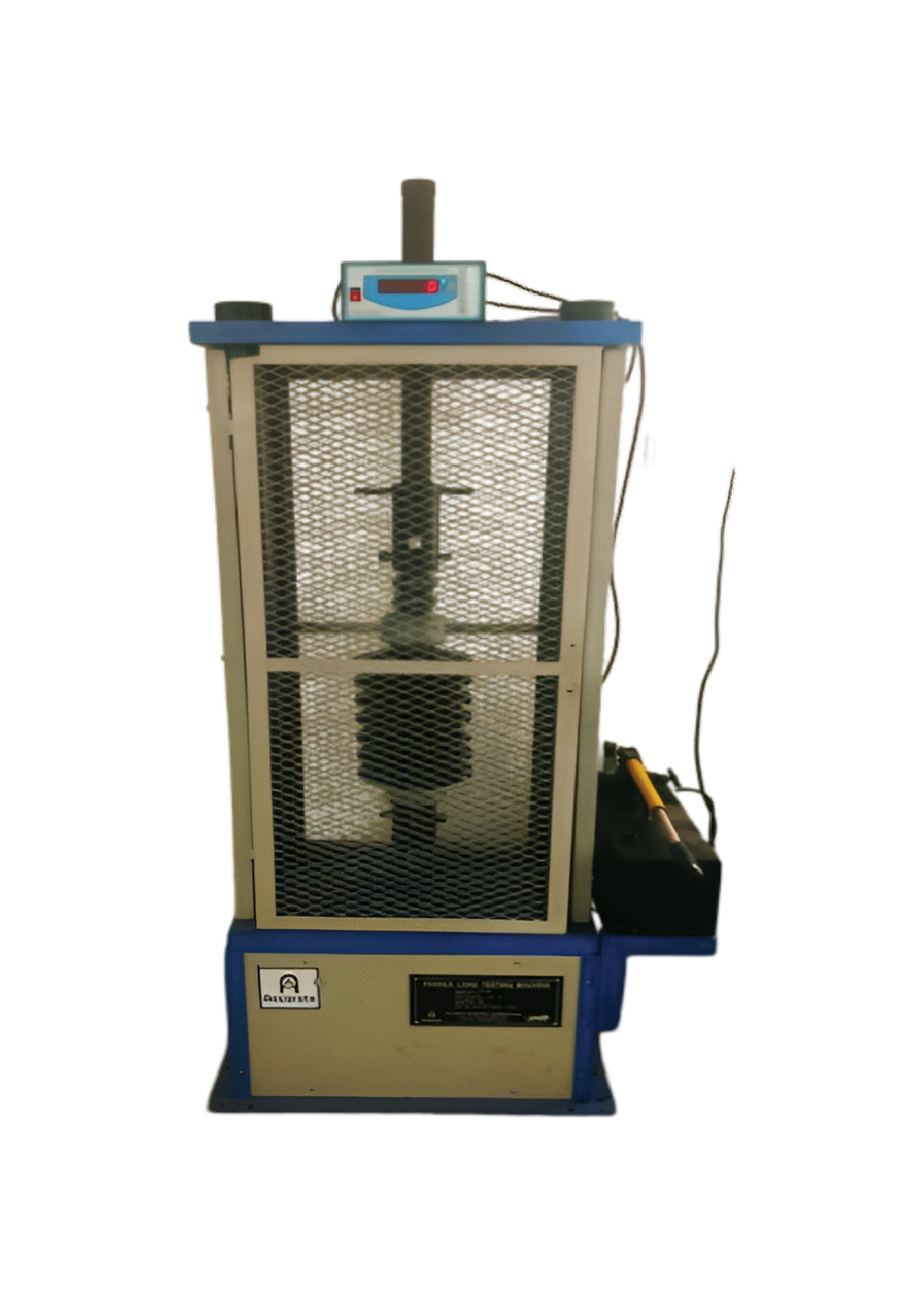

Insulator Tensile Load Testing Machine (For DFC & Railway Electrification)
Insulator Tensile Testing Machine is used for testing of railway (traction) insulators, porcelain as well as polymer.
These are used for railway electrification and are widely being used by several EPC contractors for the Dedicated Freight Corridor (DFC) Project.
The equipment provides direct load reading in tons and is also operated by means of compact analogue hydraulic pump,
which ensures faster and easier testing of insulators. We are manufacturing equipment with load testing capabilities.
Capacity: 20 ton (200kN)
| Technical Details |
|---|
| Least Count | 1kN |
| Display | Dial gauge |
| Range | 1kN to 200kN |
| Usage Application | Insulator testing |
